Family Designation: CRF 4
|
4 Flute Ceramic end mills with corner R and unequal spacing of cutting edges for machining of superalloys and less vibration in slotting and shouldering
|
Use only air (Coolant is prohibited)
Tool life of ceramic tools is determined not by wear size but by acceptable level of burrs
Use only air (Coolant is prohibited)
Tool life of ceramic tools is determined not by wear size but by acceptable level of burrs

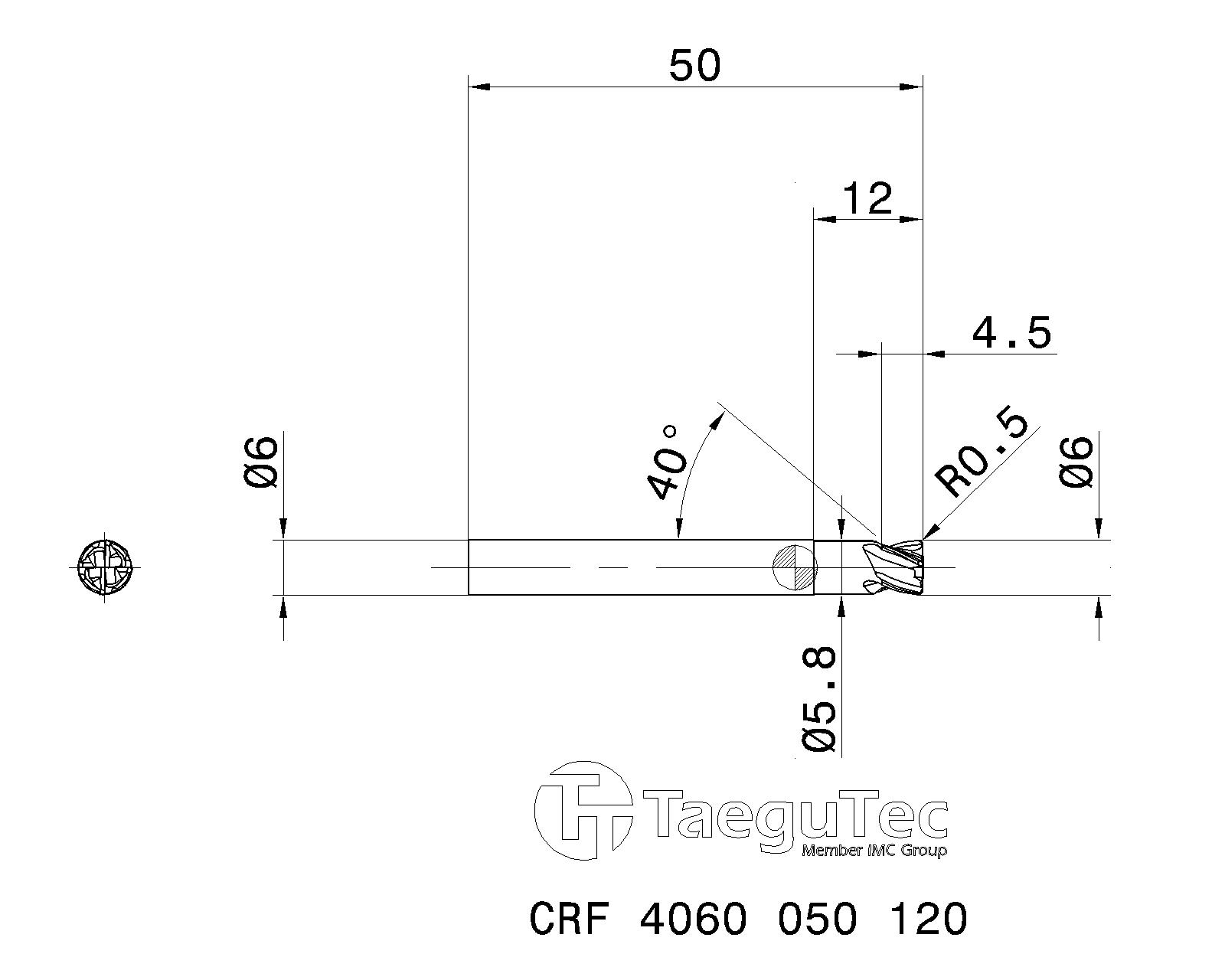

Item Designation: CRF 4060 050 120
| Tool sty | DC | RE | OAL | APMX | LU | DN | DCONMS | NOF  | Type | Machine | H.A | Shank | Rd | fz
(min) | fz
(max) | d | ClssID | CCTMS | CCFMS | LTA | GICAT | GIREM | giic |
| SOLID TYPE ~ | 6.00 | 0.50 | 50.00 | 4.50 | 12.0 | 5.80 | 6.00 | 4~ | ~ | ~ | 40.0~ | C ~ | 3.00~ | 0.020 | 0.030 | 6.00~ | 71E01A05D27A8 ~ | ZYL ~ | 01 ~ | 14.00~ | 6179284 | | 1 |
| Catalog No | Grade & Vc | Alternative | Files Package | GISC | GTC | DXF | Add to favorites | Properties File | P21 |
| 6179284 | TC3030 | |  | 6 | <a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6179284&cat=6179284&itemDesc=CRF 4060 050 120"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a> | <a href="javascript:OpenDxf('6179284', 'CRF 4060 050 120' , 'DXF' , '6179284 - CRF 4060 050 120');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a> |  |  | <a href="FilesDownload.aspx?FileType=P&cat=6179284&itemDesc=CRF 4060 050 120"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a> |
Items Per Package : 1
