Home Page > Milling & Solid End mills > Rampdown > BLMP 04-M > BLMP 0402R-M

Milling & Solid End mills
Main Application

Rampdown
Sub Application

More Info Related Tool Included in Kit

Family Designation: BLMP 04-M

Unique double-sided inserts of 4 cutting edges for High Feed milling of general applications in maximum depth of cut ap 0.5 mm

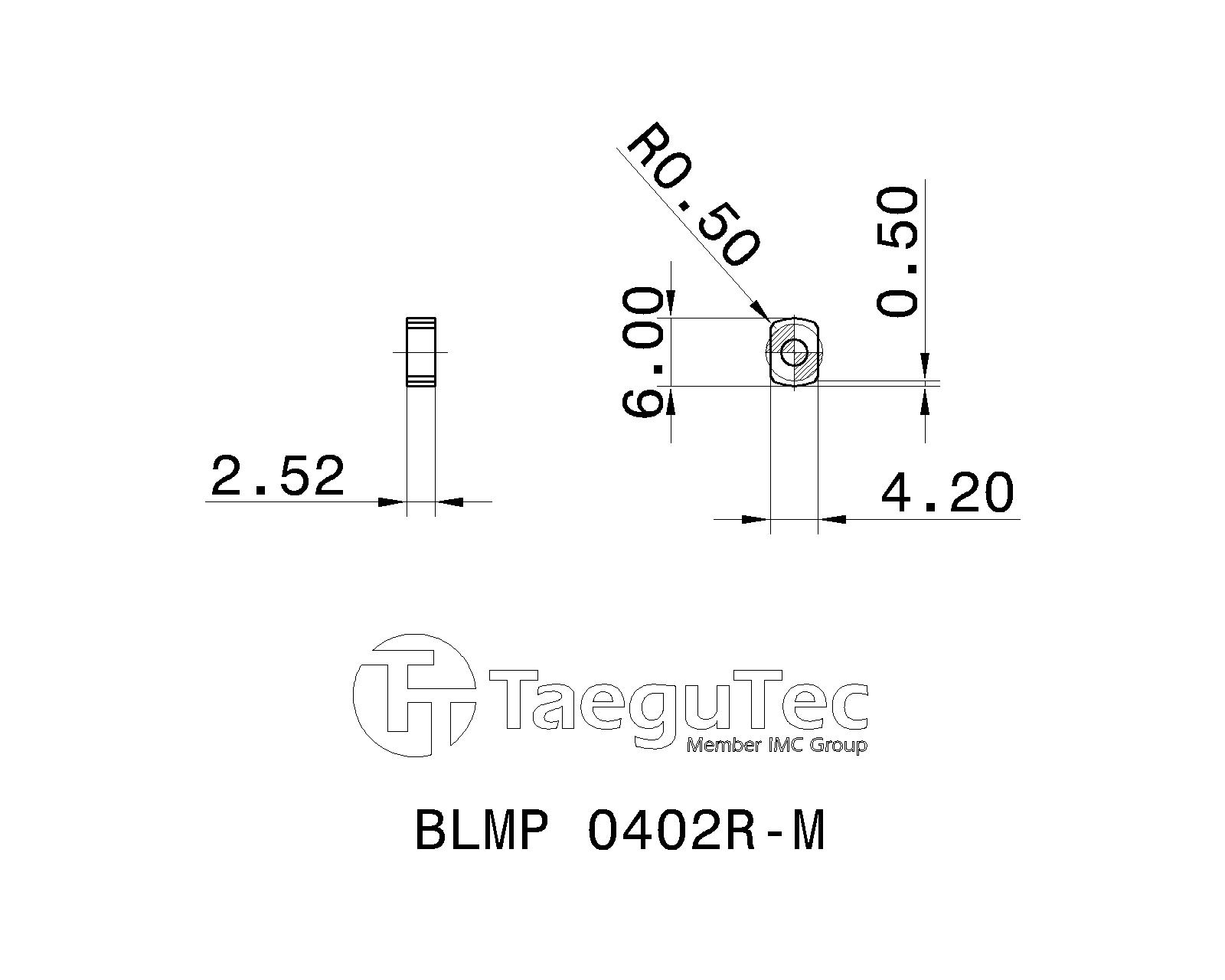

Item Designation: BLMP 0402R-M

INSL	W1	S	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	Pocket		ClssID	CB	GRDMFG	GICAT	GIREM	giic
6.00	4.20	2.52	0.50	0.50	4.00~	0.10	0.50	1.500	0.200	M8 ~	C4F-BL04 ~	4~	B ~	BLMP04 ~	U60 ~	71DDA089C8D1E ~	M ~	TT2510 ~	6185238		3

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	Add to favorites	Properties File	P21
6185236	TT9080			1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=0&p21=6185236&cat=6185236&itemDesc=BLMP 0402R-M"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6185236&itemDesc=BLMP 0402R-M"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
6185237	TT8080			1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=0&p21=6185237&cat=6185237&itemDesc=BLMP 0402R-M"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6185237&itemDesc=BLMP 0402R-M"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
6185238	TT2510			1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=0&p21=6185238&cat=6185238&itemDesc=BLMP 0402R-M"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6185238&itemDesc=BLMP 0402R-M"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
