Family Designation: 4N TE90-14 90° End mills with unique four high positive helical cutting edges of double-sided 4NKT 14 inserts and high ramping capability


 COOLANT
Item Designation: 4N TE90-232-32-14-L250
Tool sty DC CICT DCONMS OAL LH APMX Fig.  S1 Shank Rd e PD Insert KAPR Pocket ClssID MIID CCTMS CCFMS LTA GICATGIREMgiic
ENDMILL ~32.00232.00250.0040.013.802O ~14.00~C 5.30~ ~ C ~1.39C4M-4N14 ~90.0~4N14-HF ~71E01A05D27A8 ~4NKT 140708R-M ZYL ~01 ~190.00~6187346 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6187346 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6187346&cat=6187346&itemDesc=4N TE90-232-32-14-L250"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6187346', '4N TE90-232-32-14-L250' , 'DXF' , '6187346 - 4N TE90-232-32-14-L250');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6187346&itemDesc=4N TE90-232-32-14-L250"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Cutter body for (4NKT 140750R-HF+ insert should be modified with bodycorner radius 5.0 mm
3D Representation

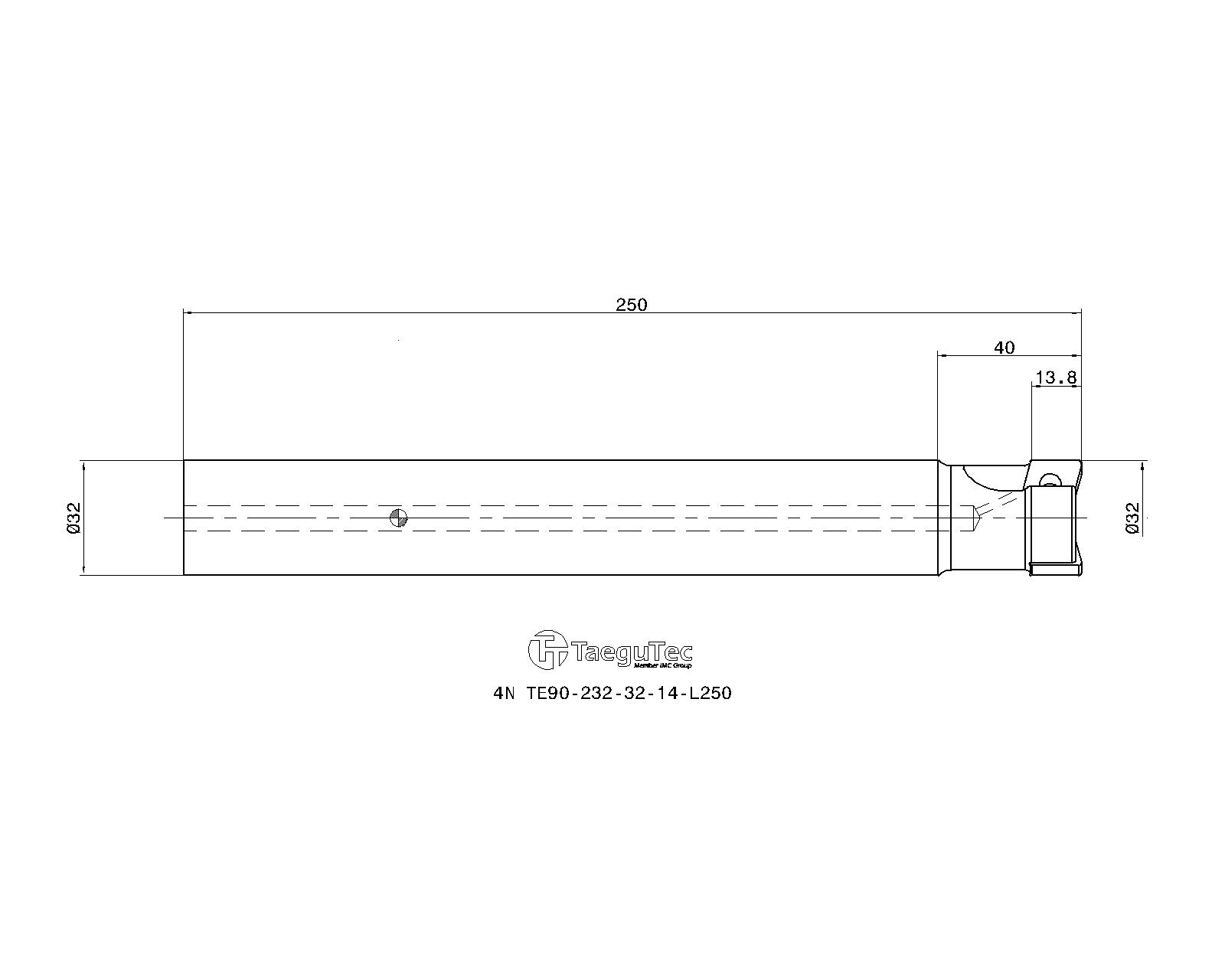

2D Representation
  Spare Parts
4352486TS 50A121I/HG(M5 X12.1MM)Screw
6321805TBLD T20-W6Torx wrench
6321791THND 6WHandle
