TaeguTec Cutting Tools - Metal Working Tools - TERP-09 : 6187876 - TERP 325-25-09FL-L100
× Login Information

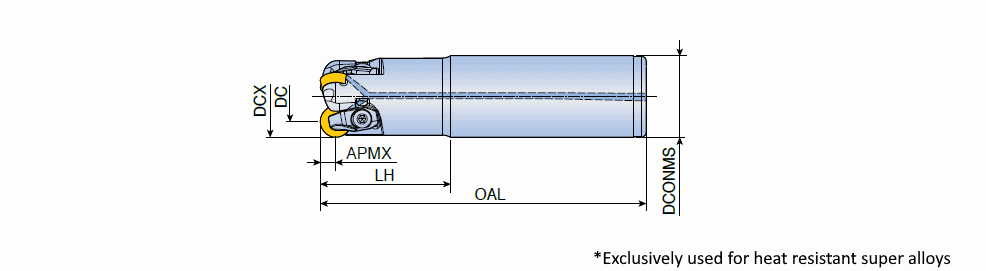

Family Designation: TERP-09 End mills with positive round RPGN 09 ceramic inserts & clamp for high speed profiling of super alloys
Use only air (Coolant is prohibited)

Use only air (Coolant is prohibited)

Item Designation: TERP 325-25-09FL-L100
Tool sty CICT DCX  DC DCONMS OAL LH APMX Air hole  S1 KAPR Shank Rd e PD Insert Pocket ClssID MIID  RE CCTMS CCFMS LTA GICATGIREMgiic
ENDMILL ~325.0015.6025.00100.0040.04.70O 9.00~3.0~C ~5.00~ ~C ~0.33~CS-RP09 ~ ~71E01A05D27A8 ~RPGN 0903 FL-E04 Air hole ~4.76~ZYL ~01 ~44.00~6187876 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6187876 6<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6187876&cat=6187876&itemDesc=TERP 325-25-09FL-L100"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6187876', 'TERP 325-25-09FL-L100' , 'DXF' , '6187876 - TERP 325-25-09FL-L100');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6187876&itemDesc=TERP 325-25-09FL-L100"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

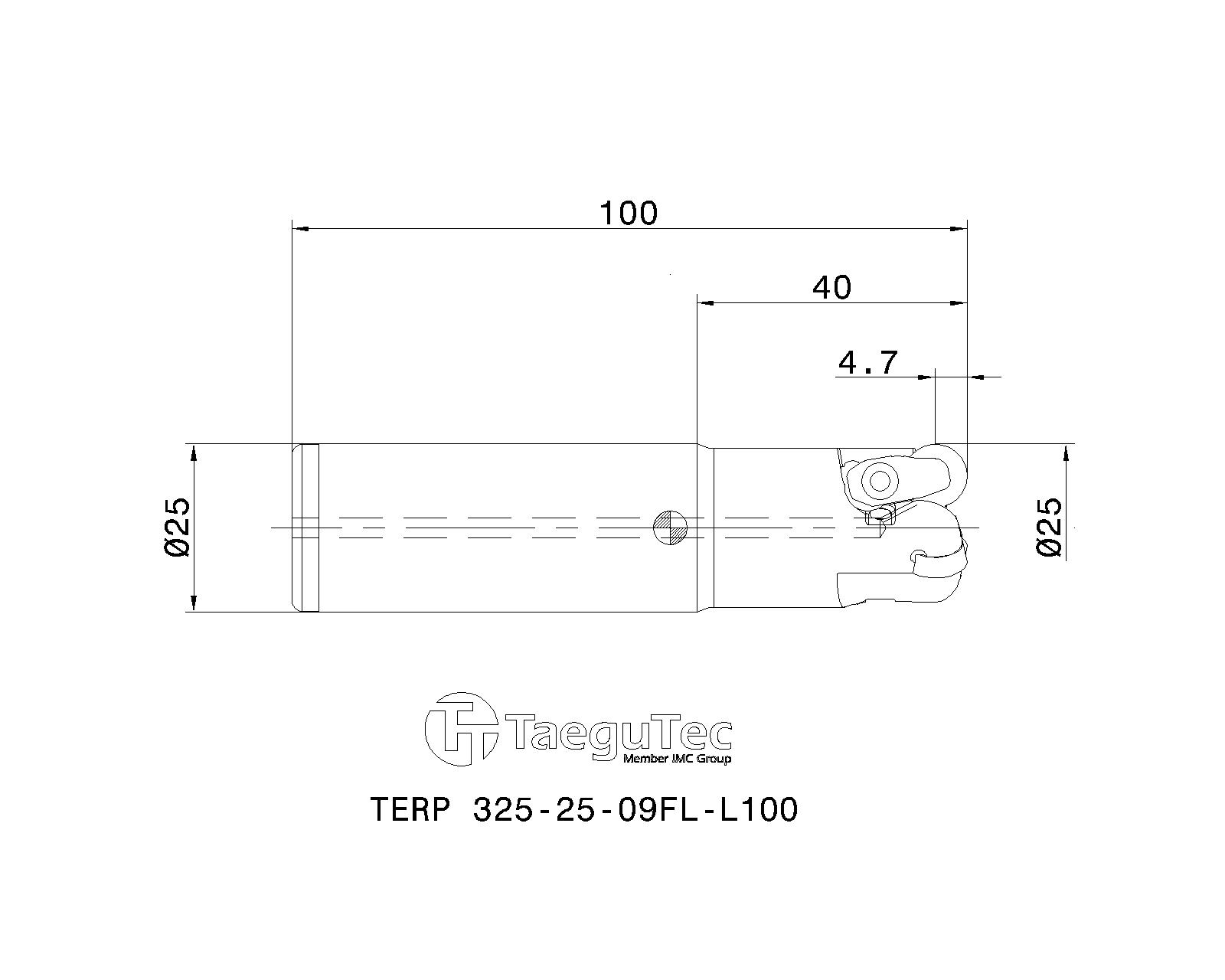

2D Representation
  Spare Parts
6187863CLS-35A120Clamp screw
4350218L-W 2L-wrench
4350733CSR 1.25Snap ring
