Family Designation: MTECB-BSPT Solid carbide threading end mills with internal coolant holes for extenal or internal BSPT threads


Item Designation: MTECB 1616E2614BSPT
S1 TPI TDZ DCONMS DC APMX OAL NOF  Shank HAND ClssID CCMS  CZCMS fz
(max) 		fz
(min) 		LF LTA THFT TP TTP_DF2 TTP ZAX LU GICATGIREMgiic
3.00~14.0RC1/2-7/8 16.0016.0026.30105.004C R ~71EF07E083383 ~ZYL01G1600h$06 ~Y ~1600 ~0.210~0.040~~24.00~BSPT55 ~1.814~- ~BOTH ~0.26~14~26.3~6214499 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6214499 TT90303<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6214499&cat=6214499&itemDesc=MTECB 1616E2614BSPT"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6214499', 'MTECB 1616E2614BSPT' , 'DXF' , '6214499 - MTECB 1616E2614BSPT');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6214499&itemDesc=MTECB 1616E2614BSPT"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

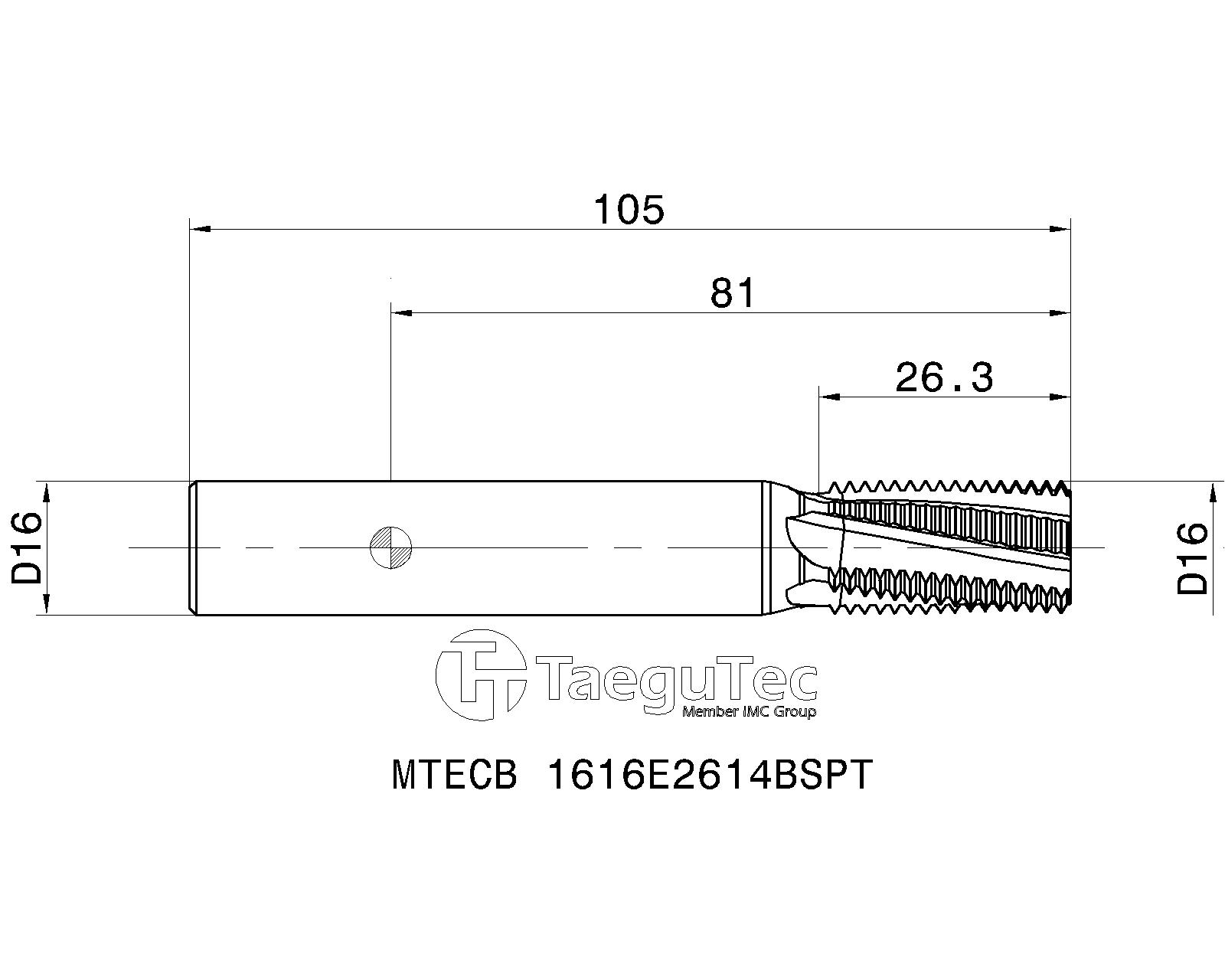

2D Representation
