Thread Making
Main Application
Internal Thread Milling
Sub Application

Family Designation: MTECD-ISO Small Diameter Short Left-Hand Cut. Solid Carbide Endmills for Internal ISO Profile Drilling, Threading and Chamfering
Left-hand tools (CNC code M04)
Application: General engineering
Coolant holes only in 1.0-2.0 pitch tools

Left-hand tools (CNC code M04)
Application: General engineering
Coolant holes only in 1.0-2.0 pitch tools

Item Designation: MTECD 06032C11 0.7ISO
TP TDZ DCONMS DC NOF  LU OAL CHW LU_2 Shank ClssID CCMS CZCMS FTDZ fz
(max) 		fz
(min) 		LF LTA THFT TPI TTP TTP_DF2 ZAX GICATGIREMgiic
0.700M4 6.003.15311.658.000.200.7C 71EF07E083383 ~ZYL01F3000h$06 ~6000 ~ ~0.000~0.000~0.00~0.00~M60 ~0.0~ ~ ~0.00~0~6214643 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6214643 TT90303<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6214643&cat=6214643&itemDesc=MTECD 06032C11 0.7ISO"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6214643', 'MTECD 06032C11 0.7ISO' , 'DXF' , '6214643 - MTECD 06032C11 0.7ISO');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6214643&itemDesc=MTECD 06032C11 0.7ISO"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Thread hole, thread and chamfer by circular interpolation
3D Representation

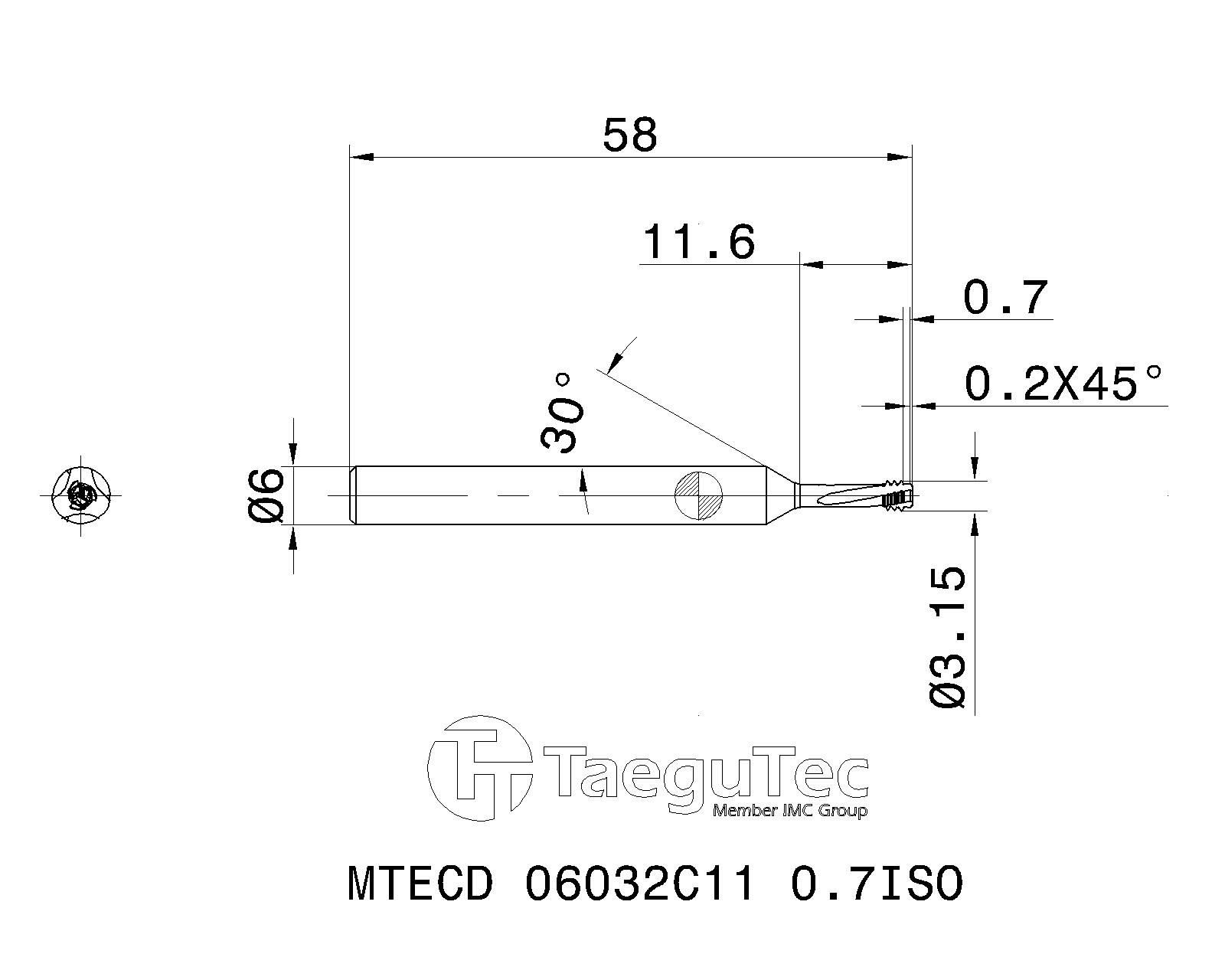

2D Representation
