Hole Making
Main Application
Drilling
Sub Application

Family Designation: NHD-KI3 (3xD) Solid carbide drills with coolant holes, multi-angle cutting edges and drilling depth 3xD exclusively for cast iron machining
Drilling depth: 3xdiameter

Drilling depth: 3xdiameter

 DR COOLANT-TCD/LCD/NHD(PI)/SHO
Item Designation: NHD 055-020-06 KI3

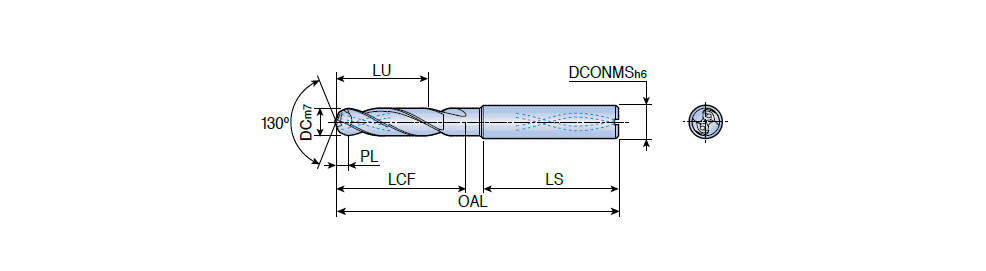

Tool sty DC DCONMS OAL LU LCF LS PL Zeff  L/D Machines Shank ClssID CCFMS CCTMS LTA GICATGIREMgiic
SOLID TYPE ~5.506.0066.0020.027.036.02.602~ N ~3.00~ ~C ~71E01A0608FE4 ~01 ~ZYL ~27.40~6221604 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6221604 TT90306<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6221604&cat=6221604&itemDesc=NHD 055-020-06 KI3"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6221604', 'NHD 055-020-06 KI3' , 'DXF' , '6221604 - NHD 055-020-06 KI3');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6221604&itemDesc=NHD 055-020-06 KI3"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1

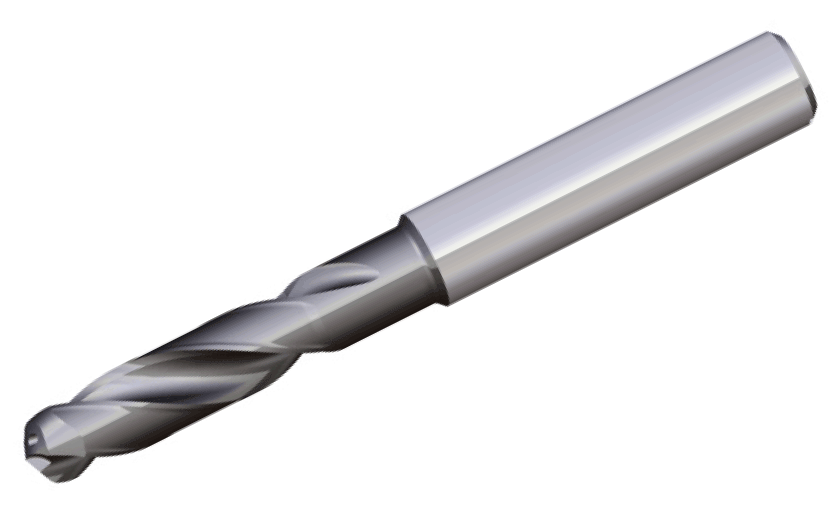

3D Representation

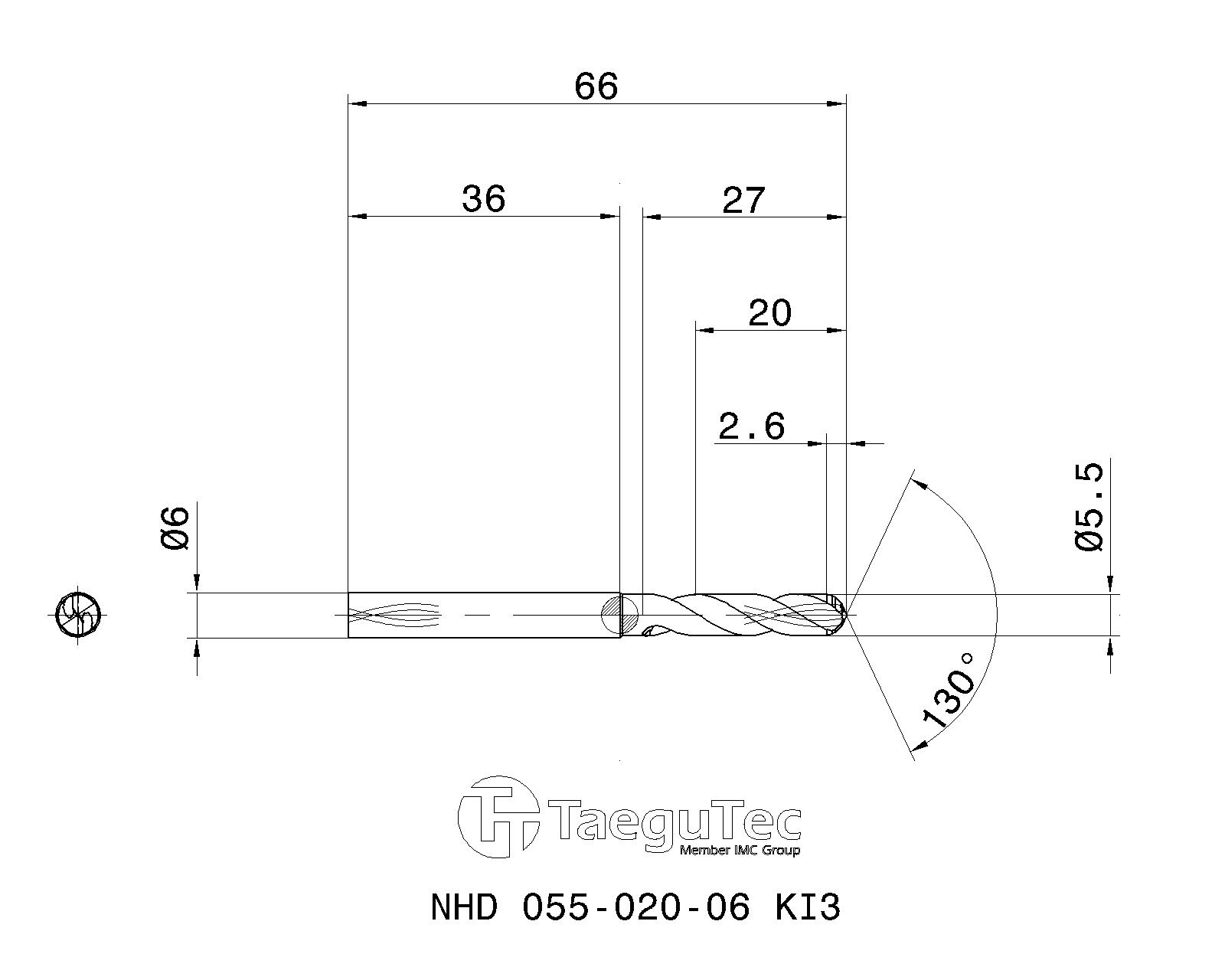

2D Representation
