Hole Making
Main Application
Drilling
Sub Application

Family Designation: NHD-KI5 (5xD) Solid carbide drills with coolant holes, multi-angle cutting edges and drilling depth 5xD exclusively for cast iron machining
Drilling depth: 5xdiameter

Drilling depth: 5xdiameter

 DR COOLANT-TCD/LCD/NHD(PI)/SHO
Item Designation: NHD 100-049-10 KI5
Tool sty DC DCONMS OAL LU LCF LS PL Zeff  L/D Machines Shank ClssID CCFMS CCTMS LTA GICATGIREMgiic
SOLID TYPE ~10.0010.00103.0049.059.040.04.802~ Y ~5.00~ ~C ~71E01A0608FE4 ~01 ~ZYL ~58.20~6221650 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6221650 TT90306<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6221650&cat=6221650&itemDesc=NHD 100-049-10 KI5"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6221650', 'NHD 100-049-10 KI5' , 'DXF' , '6221650 - NHD 100-049-10 KI5');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6221650&itemDesc=NHD 100-049-10 KI5"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

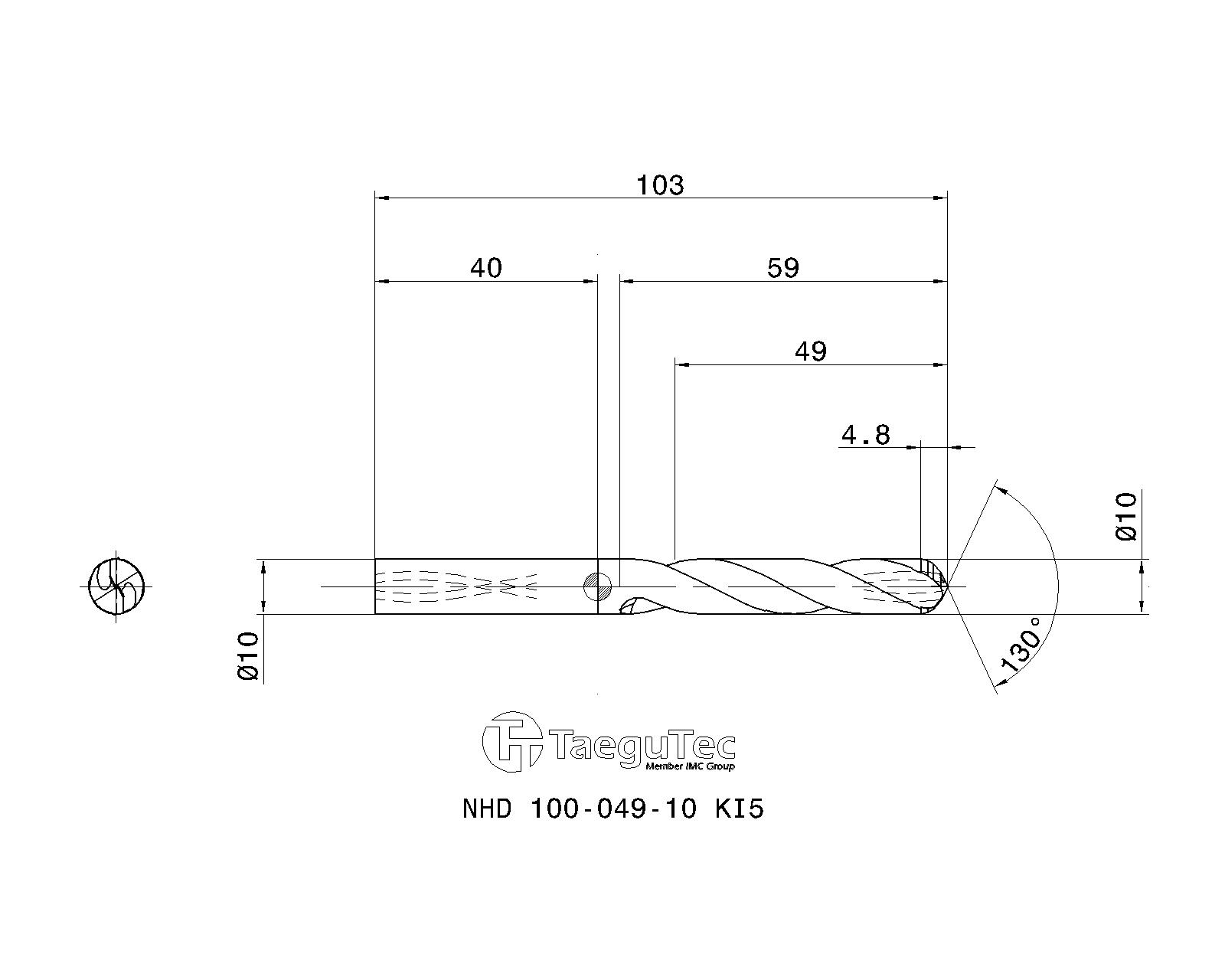

2D Representation
