Milling & Solid End mills
Main Application
Solid Carbide End Mills
Sub Application
More Info
Family Designation:
RCDE
Multi-flute router end mills for drilling and edging of composite materials covering medium to finishing with improved surface finish by flat cutting edge
Item Designation:

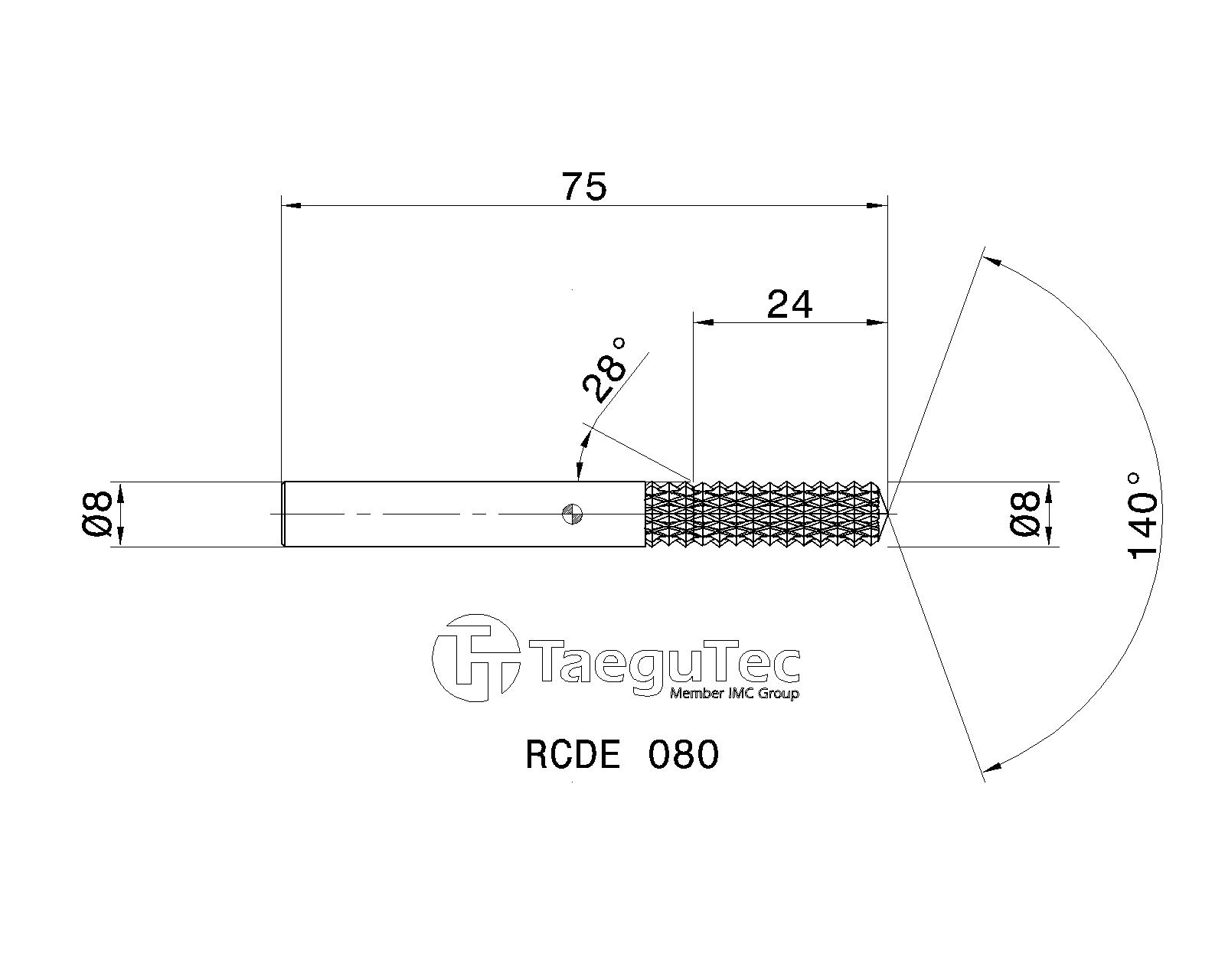

RCDE 080
Tool sty
DC
OAL
APMX
DCONMS
H.A
Shank
Rd
fz
(min)
fz
(max)
ClssID
LTA
CCTMS
CCFMS
GICAT
GIREM
giic
SOLID TYPE ~
8.00
75.00
24.00
8.00
28.0~
C ~
0.00~
0.100
0.200
71E01A05D27A8 ~
39.00~
ZYL ~
01 ~
6223474
1
Catalog No
Grade & Vc
Alternative
Files Package
GISC
GTC
DXF
Add to favorites
Properties File
P21
6223474
TTD610
6
<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6223474&cat=6223474&itemDesc=RCDE 080"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>
<a href="javascript:OpenDxf('6223474', 'RCDE 080' , 'DXF' , '6223474 - RCDE 080');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>
<a href="FilesDownload.aspx?FileType=P&cat=6223474&itemDesc=RCDE 080"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
