TaeguTec Cutting Tools - Metal Working Tools - RDCF : 6223477

Solid carbide end mills with 10° low helix angle of 4-8 flutes for finishing of composite materials by eliminating delamination and splintering

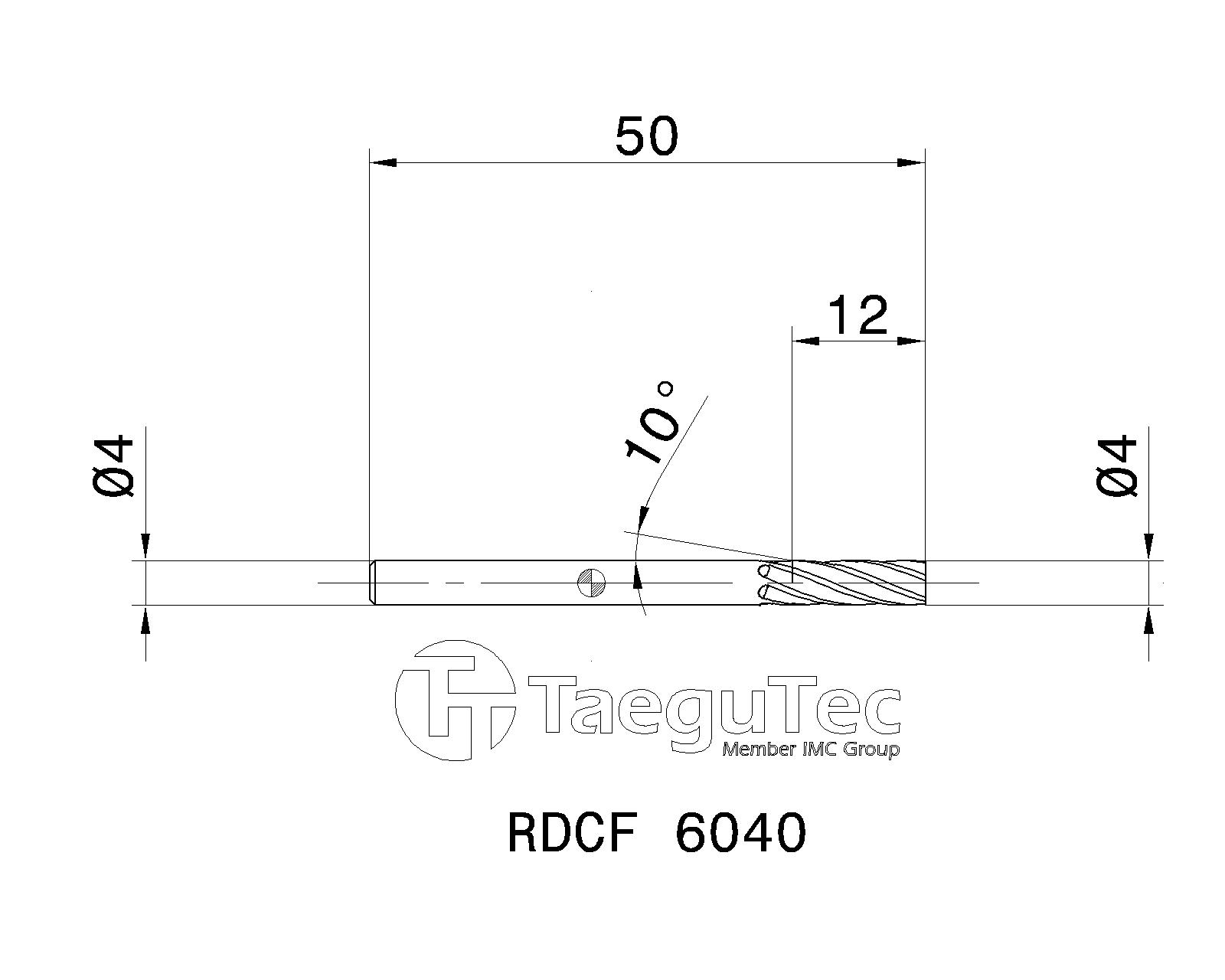

Item Designation: RDCF 6040

Tool sty	DC	NOF	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	ClssID	LTA	CCTMS	CCFMS	GICAT	GIREM	giic
SOLID TYPE ~	4.00	6	50.00	12.00	4.00	10.0~	C ~	5.00~	0.010	0.030	71E01A05D27A8 ~	30.00~	ZYL ~	01 ~	6223477		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
6223477	TTD610			6	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6223477&cat=6223477&itemDesc=RDCF 6040"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6223477', 'RDCF 6040' , 'DXF' , '6223477 - RDCF 6040');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6223477&itemDesc=RDCF 6040"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
