TaeguTec Cutting Tools - Metal Working Tools - RCME : 6223484

Multi-flute router end mills for medium to finishing of composite materials with improved surface finish due to flat cutting edge

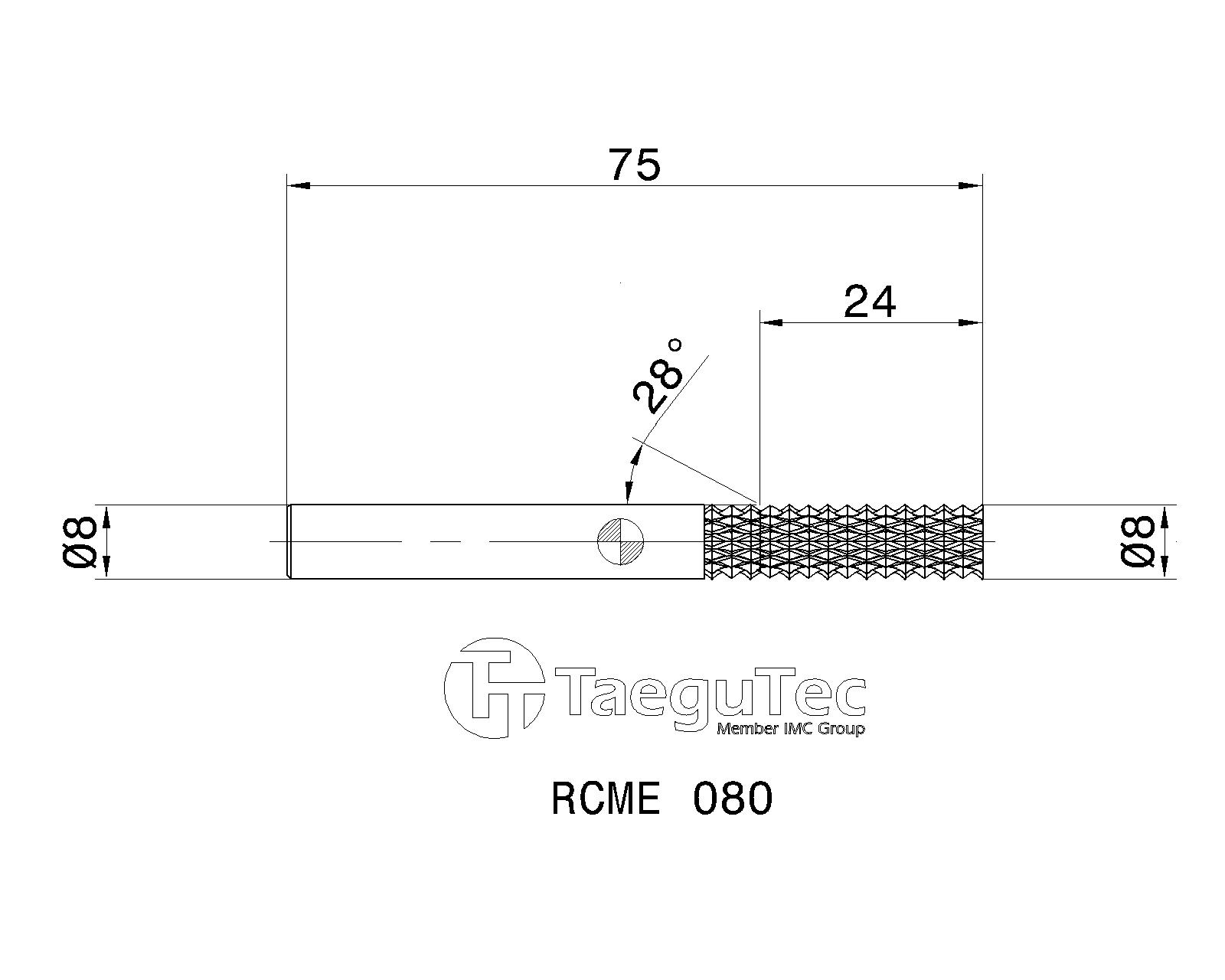

Item Designation: RCME 080

Tool sty	DC	OAL	APMX	DCONMS	H.A	Shank	Rd	fz (min)	fz (max)	ClssID	LTA	CCTMS	CCFMS	GICAT	GIREM	giic
SOLID TYPE ~	8.00	75.00	24.00	8.00	28.0~	C ~	0.00~	0.100	0.200	71E01A05D27A8 ~	39.00~	ZYL ~	01 ~	6223484		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
6223484	TTD610			6	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6223484&cat=6223484&itemDesc=RCME 080"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6223484', 'RCME 080' , 'DXF' , '6223484 - RCME 080');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6223484&itemDesc=RCME 080"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
