Family Designation: SED 7 7 Flute solid carbide end mills with unequal spaced cutting edges for semi-finishing and finishing of difficult-to-cut materials in trochoidal high productivity machining
 EM FLUTES_7                                        EM HELIX ANGLE_38
Item Designation: SED 7140
Tool sty DC RE OAL APMX DCONMS NOF  Type Machine H.A Shank Rd fz
SOLID TYPE ~14.000.5090.0035.0014.007~ ~ ~38.0~C ~7.00~0.0400.10014.00~71E01A05D27A8 ~ ZYL ~01 ~45.00~6226118 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6226118 TT55153<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6226118&cat=6226118&itemDesc=SED 7140"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6226118', 'SED 7140' , 'DXF' , '6226118 - SED 7140');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6226118&itemDesc=SED 7140"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
4D: 4xD depth of cut
3D Representation

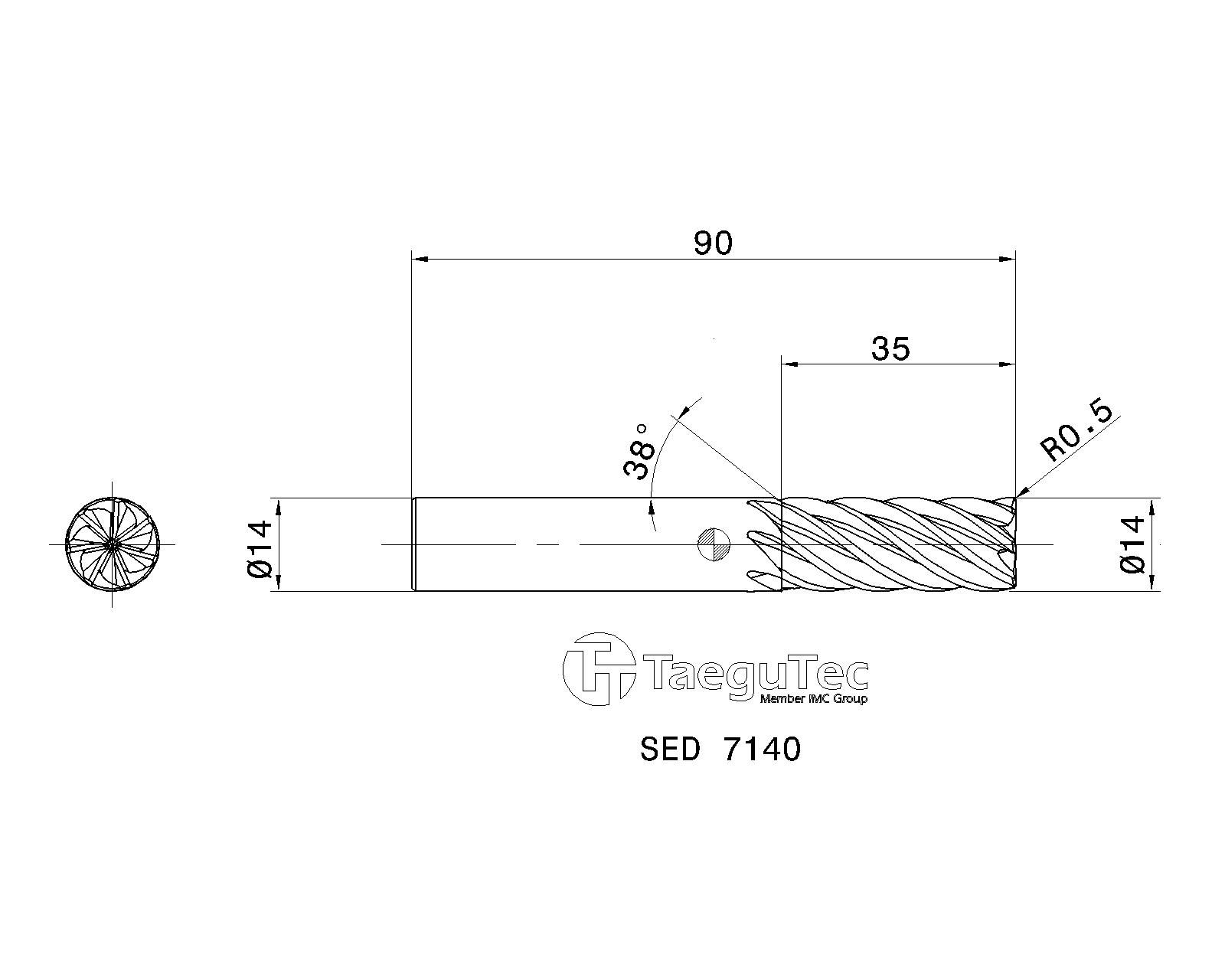

2D Representation
