Home Page > Milling & Solid End mills > Solid Carbide End Mills > CEM 2 (Solid type) > CEM 2160

Milling & Solid End mills
Main Application

Solid Carbide End Mills
Sub Application

Related Holder
Machine Side

Family Designation: CEM 2 (Solid type)

2 flute solid carbide end mills for 45° chamfering, countersinking & spot drilling

EM FLUTES_2

EM HELIX ANGLE_30

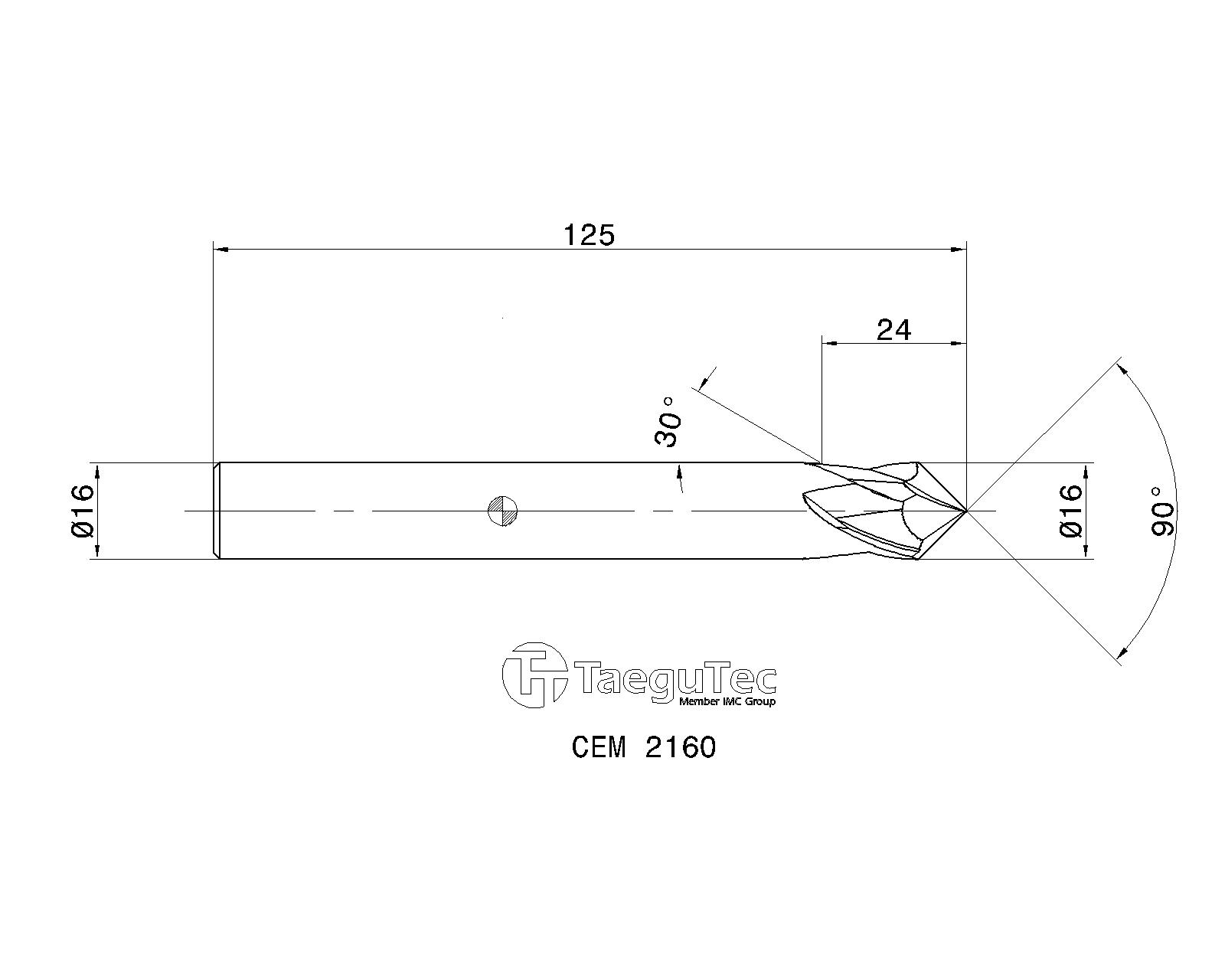

Item Designation: CEM 2160

Tool sty	DC	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	16.00	125.00	24.00	16.00	30.0~	C ~	0.00~	0.050	0.100	2~	71E01A05D27A8 ~	ZYL ~	01 ~	77.00~	6230024		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
4104502	UF10			1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4104502&cat=4104502&itemDesc=CEM 2160"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('4104502', 'CEM 2160' , 'DXF' , '4104502 - CEM 2160');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=4104502&itemDesc=CEM 2160"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
6230024	TT5525			3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6230024&cat=6230024&itemDesc=CEM 2160"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6230024', 'CEM 2160' , 'DXF' , '6230024 - CEM 2160');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6230024&itemDesc=CEM 2160"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
