Family Designation: 8D-TE90-10 90° End mills with 8 cutting edges of double-sided Square inserts SQK(H)U 10 for general milling


 COOLANT
Item Designation: 8D-TE90-332-W32-10
Tool sty DC CICT DCONMS OAL LH APMX Fig.  S1 Shank Rd e PD Insert K MIID ClssID CCTMS CCFMS LTA GICATGIREMgiic
ENDMILL ~32.00332.00110.0035.07.001O ~10.00~W 0.00~ ~ ~0.58~C8M-SQ10 ~90.0~SQKU 100408 PNR-M 71E01A05D27A8 ~ZYL ~10 ~50.00~6234647 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6234647 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6234647&cat=6234647&itemDesc=8D-TE90-332-W32-10"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6234647', '8D-TE90-332-W32-10' , 'DXF' , '6234647 - 8D-TE90-332-W32-10');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6234647&itemDesc=8D-TE90-332-W32-10"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
-When applying SQHU insert, APMX is 6.5 mm.
3D Representation

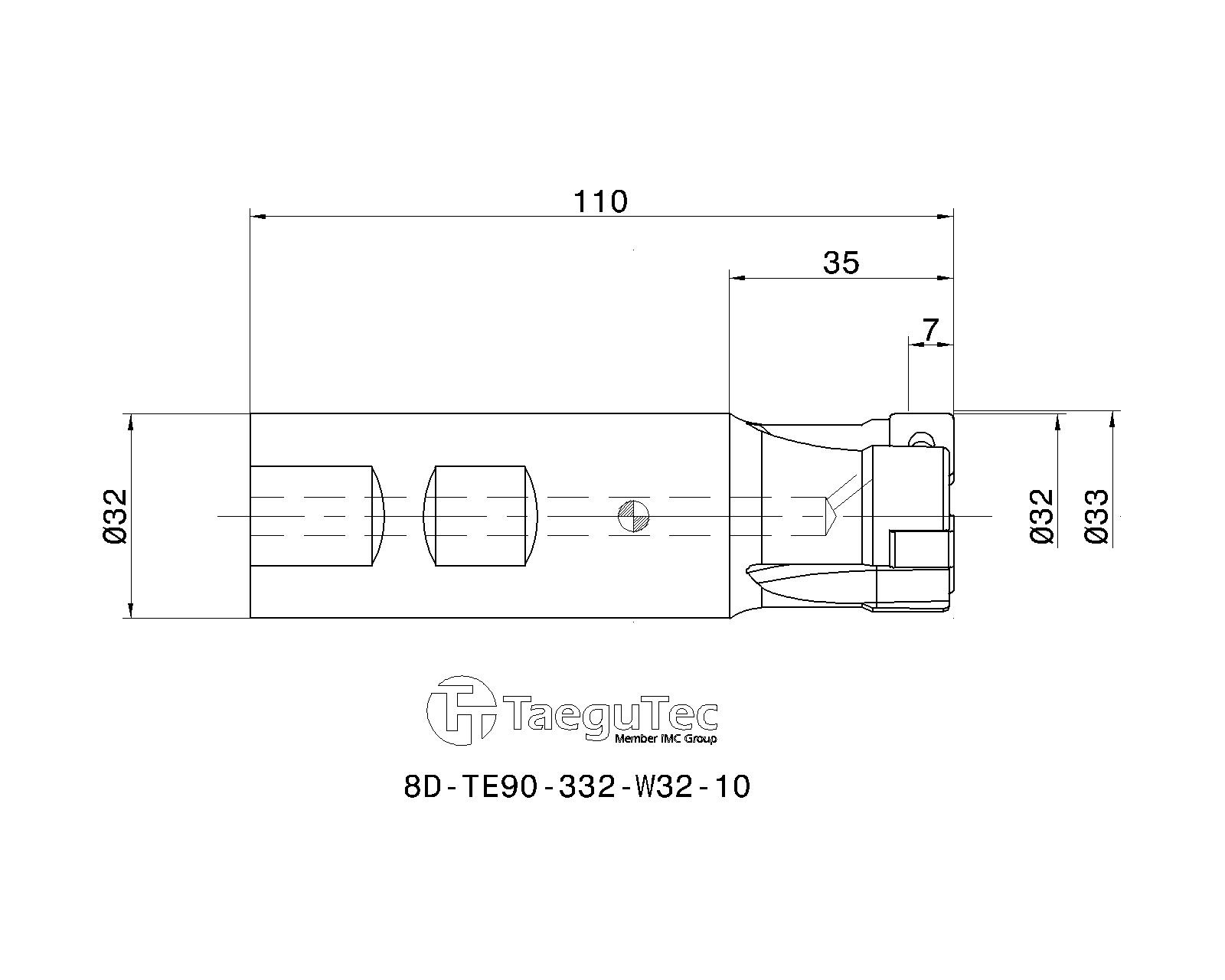

2D Representation
  Spare Parts
4352126TS 35A088I/HGScrew
4352066TD 10P(362IP 26099)TD wrench
