Hole Making
Main Application
Drilling
Sub Application

Family Designation: 3HD-FI3 (3xD) 3 flute solid carbide drills with flat bottom geometry in drilling depth of 3xD for high productivity and flat-bottom hole drilling
Drilling depth: 3xDiameter

Drilling depth: 3xDiameter

 DR COOLANT-TCD/LCD/NHD(PI)/SHO
Item Designation: 3HD 040-017-06 FI3
Tool sty DC DCONMS OAL LU LCF LS PDD PL d Zeff  L/D Machines Min Tol Max Tol Shank ClssID CCFMS CCTMS LTA GICATGIREMgiic
SOLID TYPE ~4.006.0066.0017.025.035.00.770.436.00~3~Y ~0.00~ ~0~0~C ~71E01A0608FE4 ~01 ~ZYL ~31.57~6236165 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6236165 TT51306<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6236165&cat=6236165&itemDesc=3HD 040-017-06 FI3"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6236165', '3HD 040-017-06 FI3' , 'DXF' , '6236165 - 3HD 040-017-06 FI3');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6236165&itemDesc=3HD 040-017-06 FI3"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
For recommended machining condition, please click on "More Info"
3D Representation

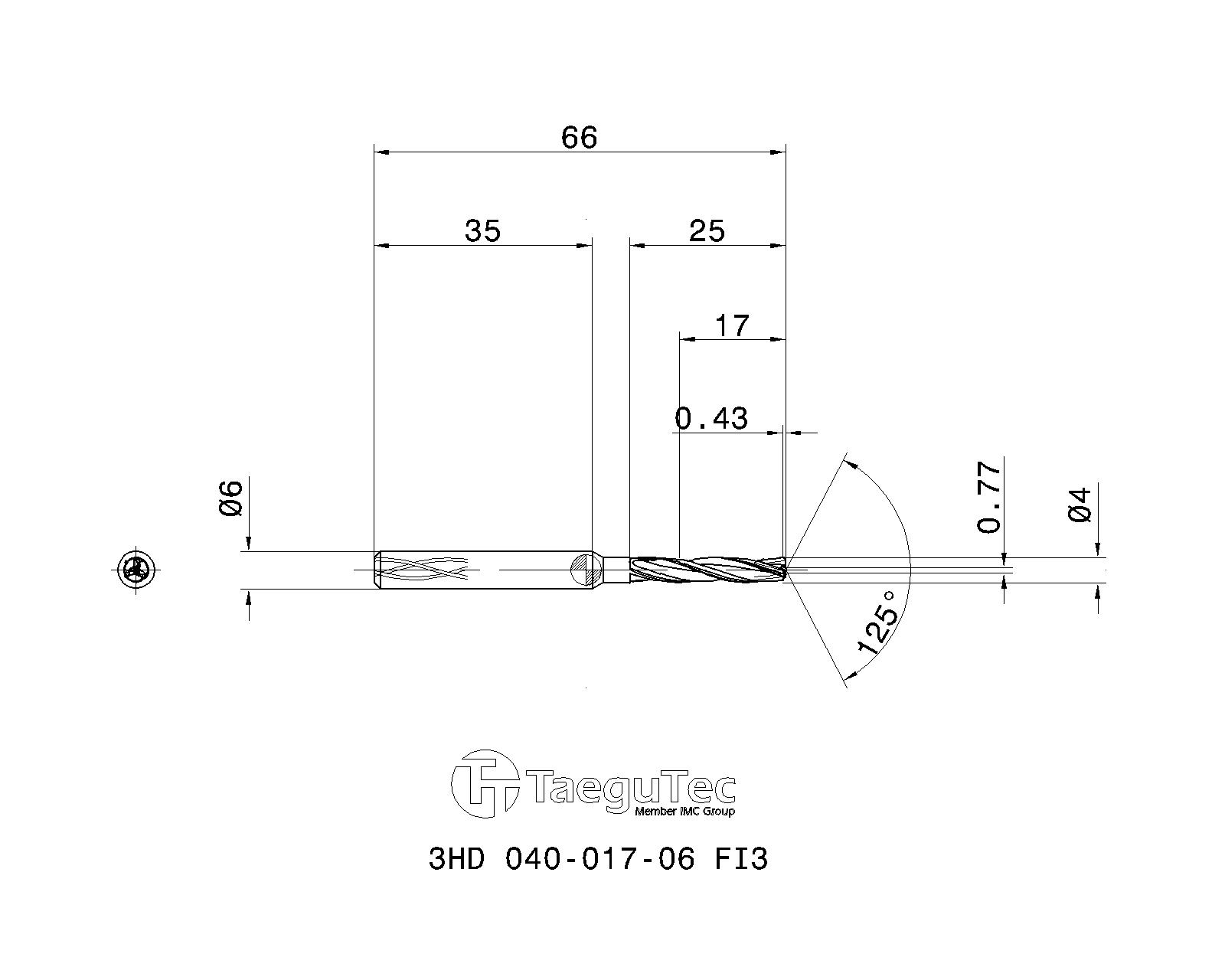

2D Representation
