Family Designation: SCST
|
Solid carbide tapered oval shape endmills with 4 flute for 5-axis profiling & semi-finishing & finishing applications
|

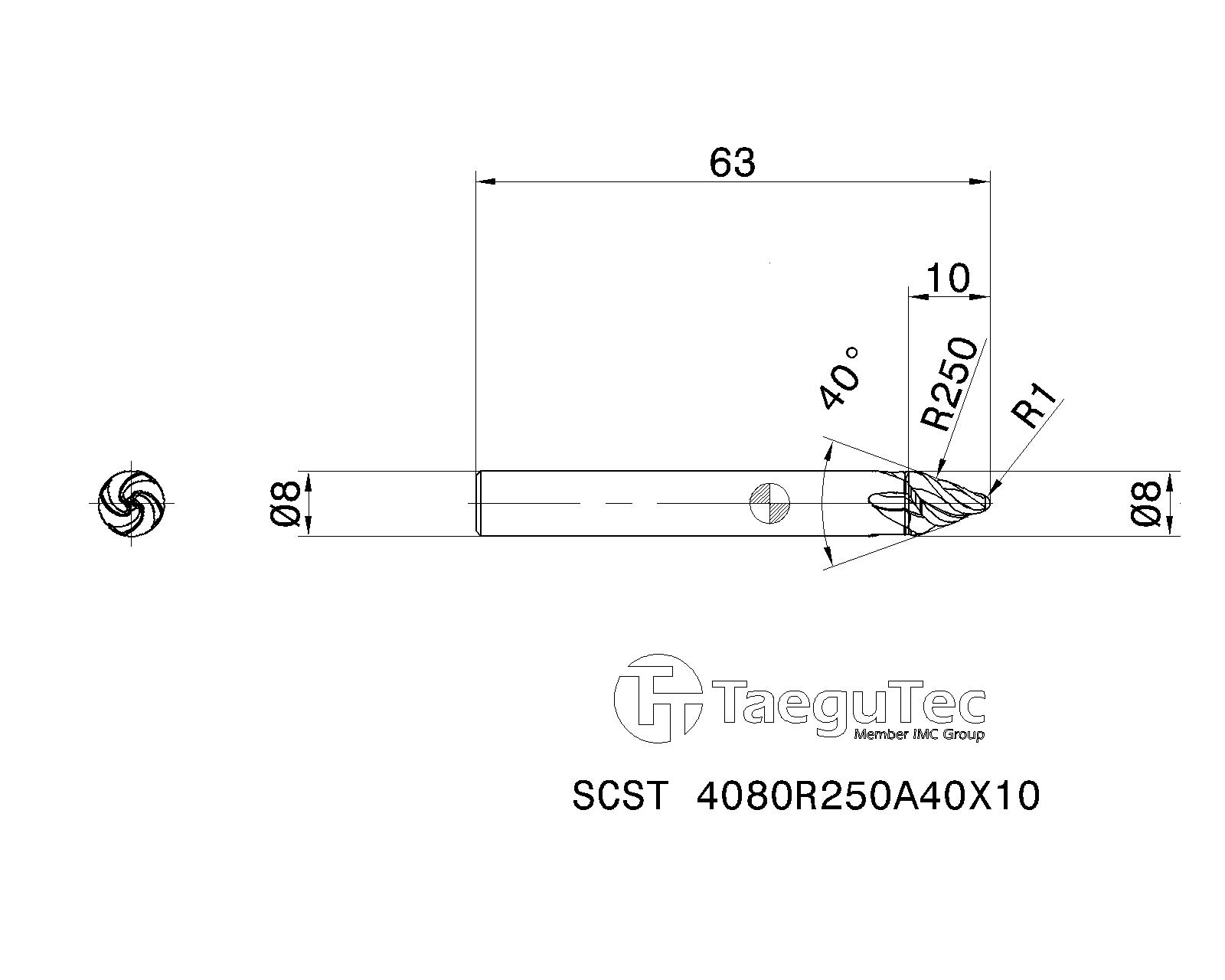

Item Designation: SCST 4080R250A40X10
| Tool sty | PRFRAD | RE | RE_2 | APMX | TFBA | DCONMS | OAL | H.A | Shank | Rd | fz
(min) | fz
(max) | Flute | ClssID | CCTMS | CCFMS | LTA | GICAT | GIREM | giic |
| SOLID TYPE ~ | 250.00 | 1.00 | 4.00 | 10.00 | 40.00 | 8.00 | 63.00 | 0.0~ | C ~ | 0.00~ | 0.020 | 0.080 | 4~ | 71E01A05D27A8 ~ | ZYL ~ | 01 ~ | 27.00~ | 6242702 | | 1 |
| Catalog No | Grade & Vc | Alternative | Files Package | GISC | GTC | DXF | Add to favorites | Properties File | P21 |
| 6242702 | TT5515 | |  | 3 | <a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6242702&cat=6242702&itemDesc=SCST 4080R250A40X10"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a> | <a href="javascript:OpenDxf('6242702', 'SCST 4080R250A40X10' , 'DXF' , '6242702 - SCST 4080R250A40X10');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a> |  |  | <a href="FilesDownload.aspx?FileType=P&cat=6242702&itemDesc=SCST 4080R250A40X10"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a> |
Items Per Package : 1
