Family Designation: SCST
|
Solid carbide tapered oval shape endmills with 4 flute for 5-axis profiling & semi-finishing & finishing applications
|

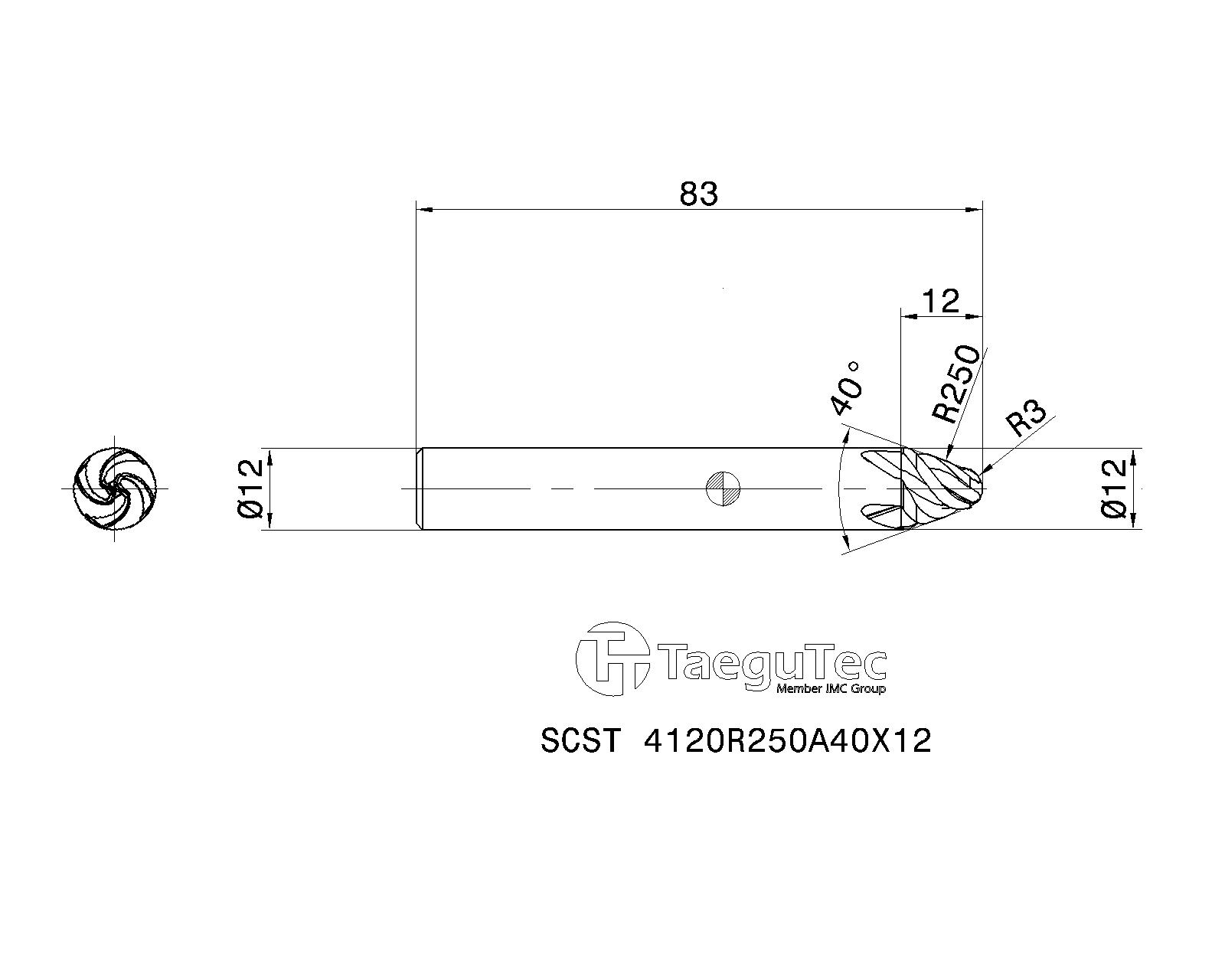

Item Designation: SCST 4120R250A40X12
| Tool sty | PRFRAD | RE | RE_2 | APMX | TFBA | DCONMS | OAL | H.A | Shank | Rd | fz
(min) | fz
(max) | Flute | ClssID | CCTMS | CCFMS | LTA | GICAT | GIREM | giic |
| SOLID TYPE ~ | 250.00 | 3.00 | 6.00 | 12.00 | 40.00 | 12.00 | 83.00 | 0.0~ | C ~ | 0.00~ | 0.030 | 0.100 | 4~ | 71E01A05D27A8 ~ | ZYL ~ | 01 ~ | 38.00~ | 6242704 | | 1 |
| Catalog No | Grade & Vc | Alternative | Files Package | GISC | GTC | DXF | Add to favorites | Properties File | P21 |
| 6242704 | TT5515 | |  | 3 | <a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6242704&cat=6242704&itemDesc=SCST 4120R250A40X12"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a> | <a href="javascript:OpenDxf('6242704', 'SCST 4120R250A40X12' , 'DXF' , '6242704 - SCST 4120R250A40X12');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a> |  |  | <a href="FilesDownload.aspx?FileType=P&cat=6242704&itemDesc=SCST 4120R250A40X12"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a> |
Items Per Package : 1
