Family Designation: DMB 2

Solid carbide ball nose end mills of miniature type with 2 flute and diamond coating for graphite machining

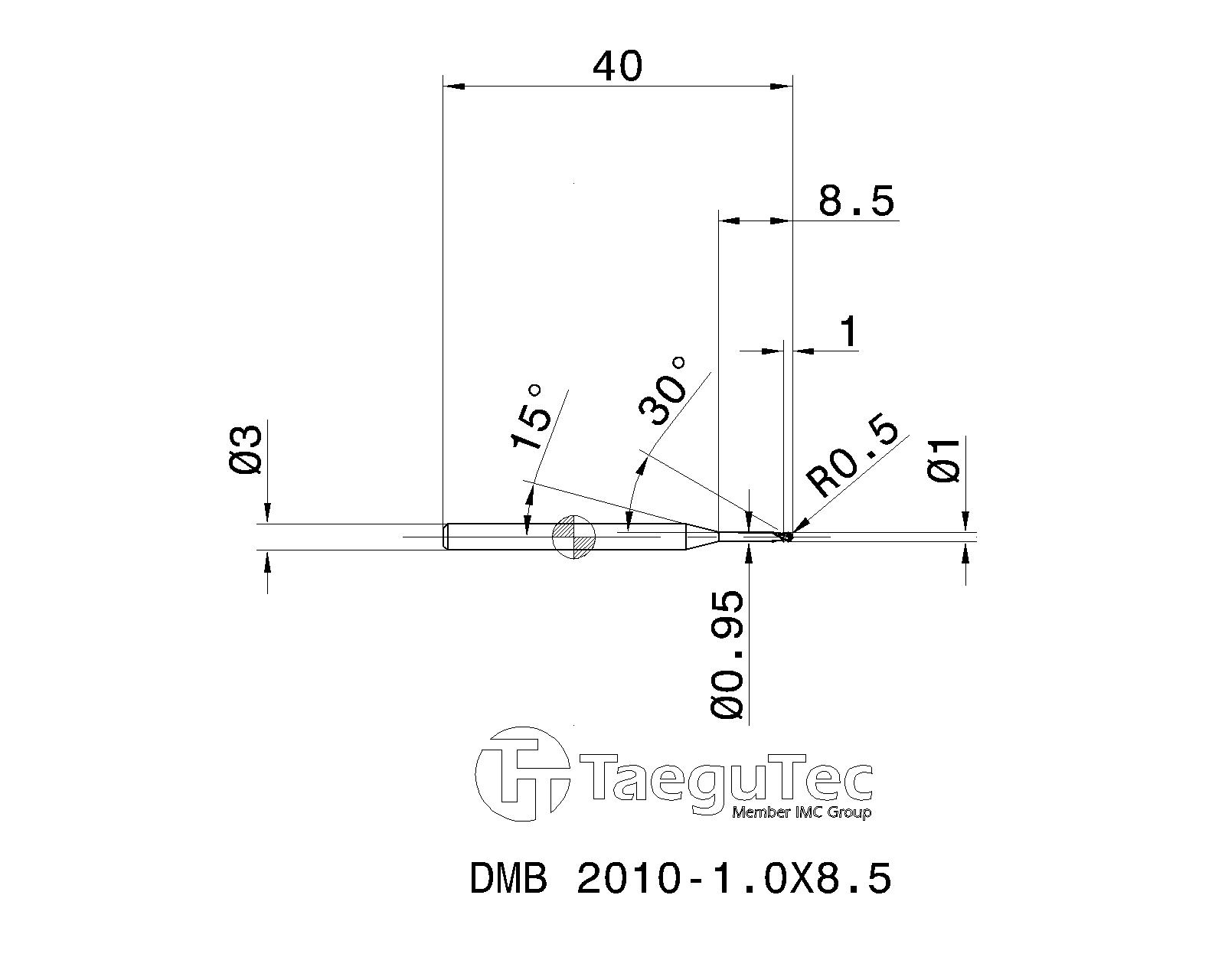

Item Designation: DMB 2010-1.0X8.5

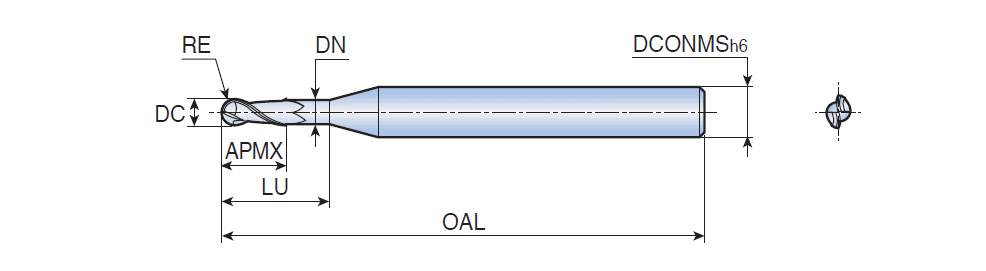

Tool sty	DC	RE	OAL	APMX	LU	DN	DCONMS	FHA	Shank	RMPX	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	1.00	0.50	40.00	1.00	8.5	0.95	3.00	30.0~	C ~	3.00~	2~	71E01A05D27A8 ~	ZYL ~	01 ~	25.00~	6243809		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
6243809	TTD620			6	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6243809&cat=6243809&itemDesc=DMB 2010-1.0X8.5"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6243809', 'DMB 2010-1.0X8.5' , 'DXF' , '6243809 - DMB 2010-1.0X8.5');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6243809&itemDesc=DMB 2010-1.0X8.5"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
