Home Page > Milling & Solid End mills > Profiling > DEB 2...L > DEB 2060L

Milling & Solid End mills
Main Application

Profiling
Sub Application

Related Holder
Machine Side

Family Designation: DEB 2...L

Solid carbide ball nose end mills with long & 2 flute for graphite machining

EM FLUTES_2

EM HELIX ANGLE_30

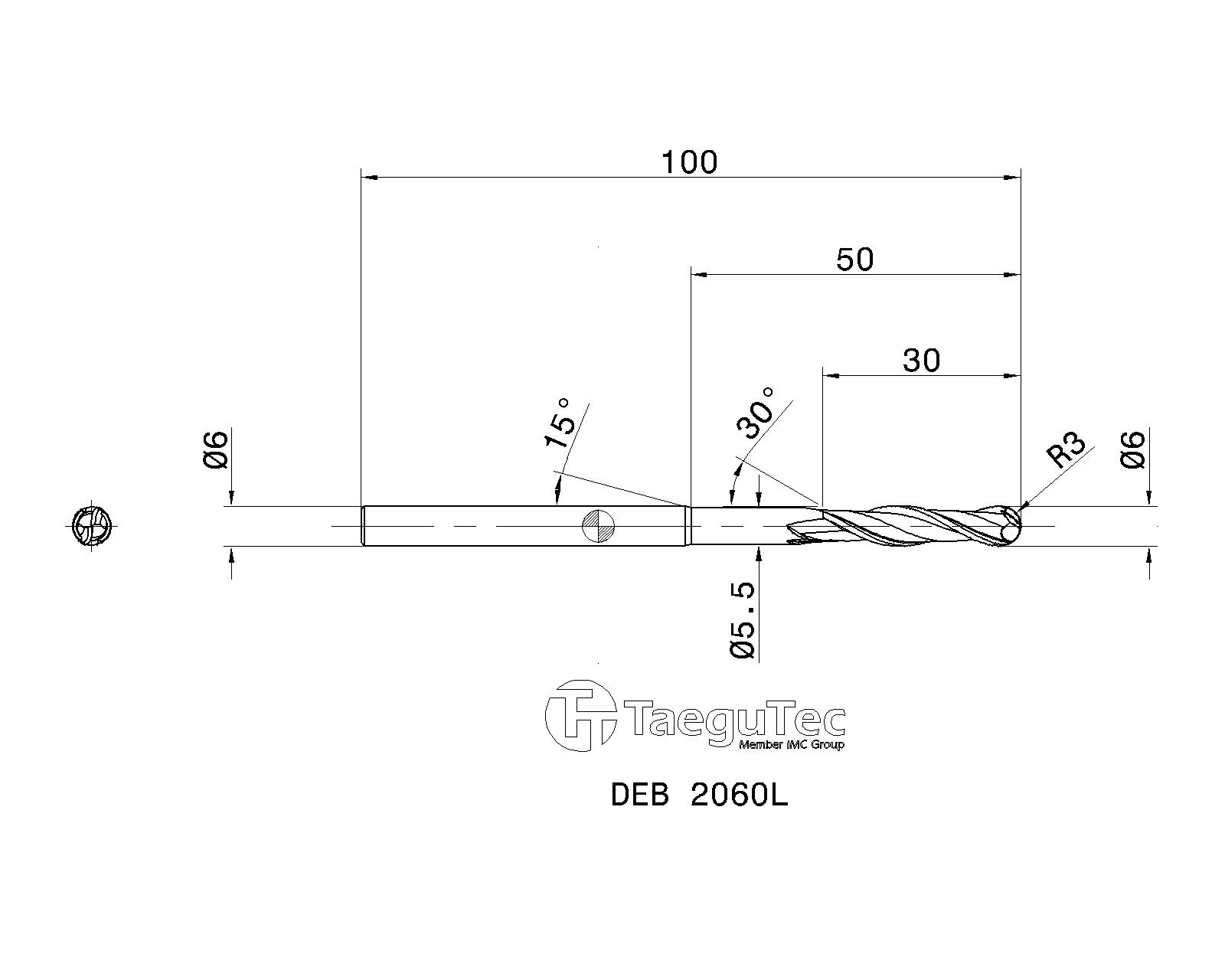

Item Designation: DEB 2060L

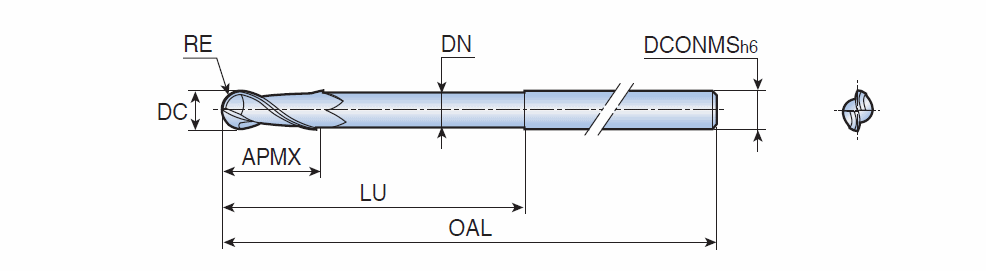

Tool sty	DC	RE	OAL	APMX	LU	DN	DCONMS	FHA	Shank	RMPX	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	6.00	3.00	100.00	30.00	50.0	5.50	6.00	30.0~	C ~	5.00~	2~	71E01A05D27A8 ~	ZYL ~	01 ~	64.00~	6243820		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
4150691	TT6050	Alternative		3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4150691&cat=4150691&itemDesc=DEB 2060L"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('4150691', 'DEB 2060L' , 'DXF' , '4150691 - DEB 2060L');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=4150691&itemDesc=DEB 2060L"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
6243820	TTD620			6	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6243820&cat=6243820&itemDesc=DEB 2060L"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6243820', 'DEB 2060L' , 'DXF' , '6243820 - DEB 2060L');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6243820&itemDesc=DEB 2060L"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
