Home Page > Milling & Solid End mills > Rampdown > DER 3...L > DER 3060L

Milling & Solid End mills
Main Application

Rampdown
Sub Application

Related Holder

Family Designation: DER 3...L

Diamond coated 3 flute solid carbide end mills of corner R type for graphite machining

EM FLUTES_3

EM HELIX ANGLE_40

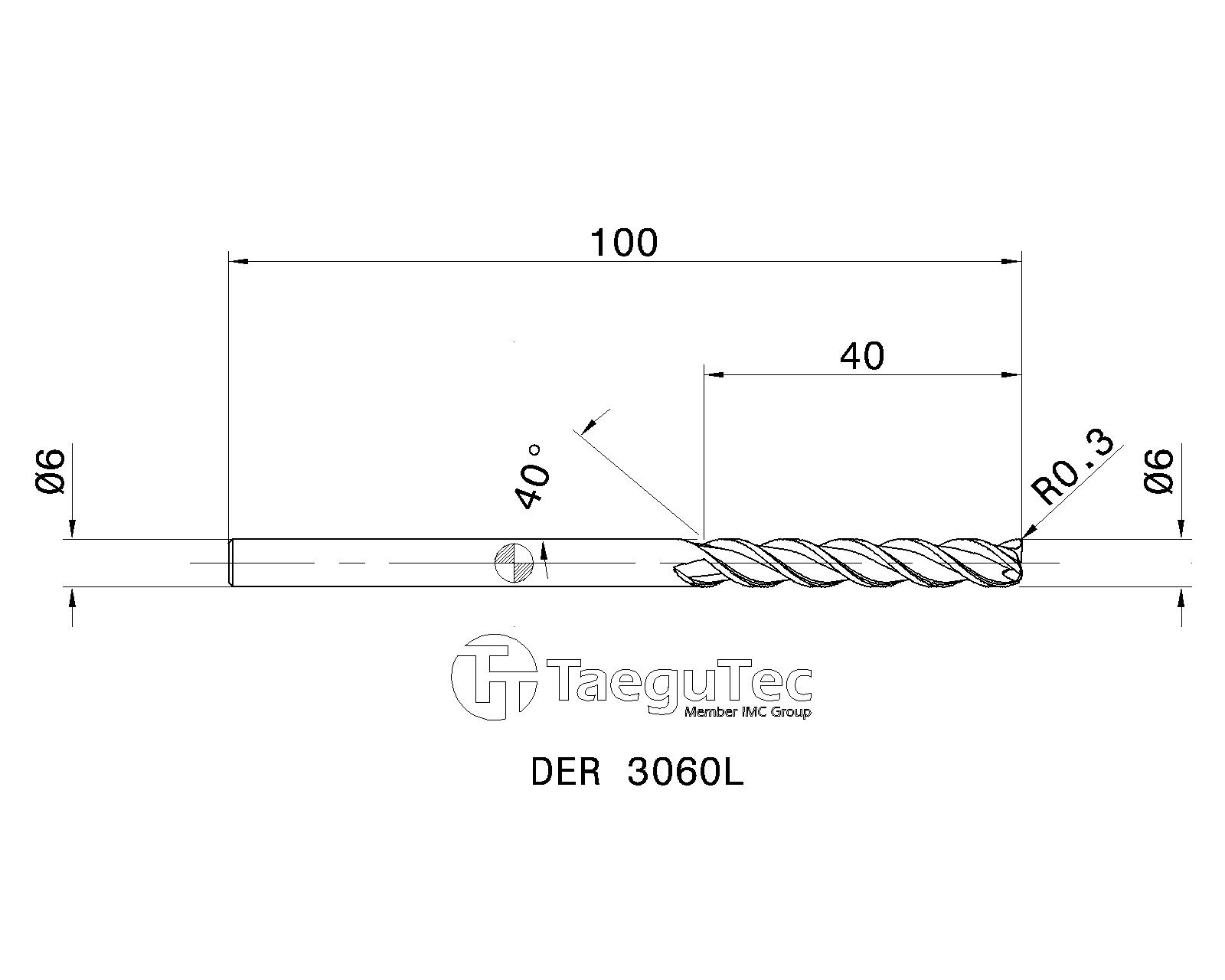

Item Designation: DER 3060L

Tool sty	DC	RE	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	6.00	0.30	100.00	40.00	6.00	40.0~	C ~	5.00~	0.050	0.080	3~	71E01A05D27A8 ~	ZYL ~	01 ~	64.00~	6243840		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
4150664	TT6050	Alternative		3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4150664&cat=4150664&itemDesc=DER 3060L"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('4150664', 'DER 3060L' , 'DXF' , '4150664 - DER 3060L');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=4150664&itemDesc=DER 3060L"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
6243840	TTD620			6	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6243840&cat=6243840&itemDesc=DER 3060L"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6243840', 'DER 3060L' , 'DXF' , '6243840 - DER 3060L');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6243840&itemDesc=DER 3060L"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
