Family Designation: DER 3...S Solid Carbide Endmills for graphite machining


Item Designation: DER 3080S
Tool sty DC RE OAL APMX DCONMS FHA Shank RMPX fz
(min) 		fz
(max) 		NOF  CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~8.000.5065.0020.008.0040.0~C ~5.00~0.0700.1003~ZYL ~01 ~29.00~6243847 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesSTPL
6243847 TTD6206<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=0&cat=6243847&itemDesc=DER 3080S"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6243847', 'DER 3080S' , 'DXF' , '6243847 - DER 3080S');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=6243847&itemDesc=DER 3080S"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

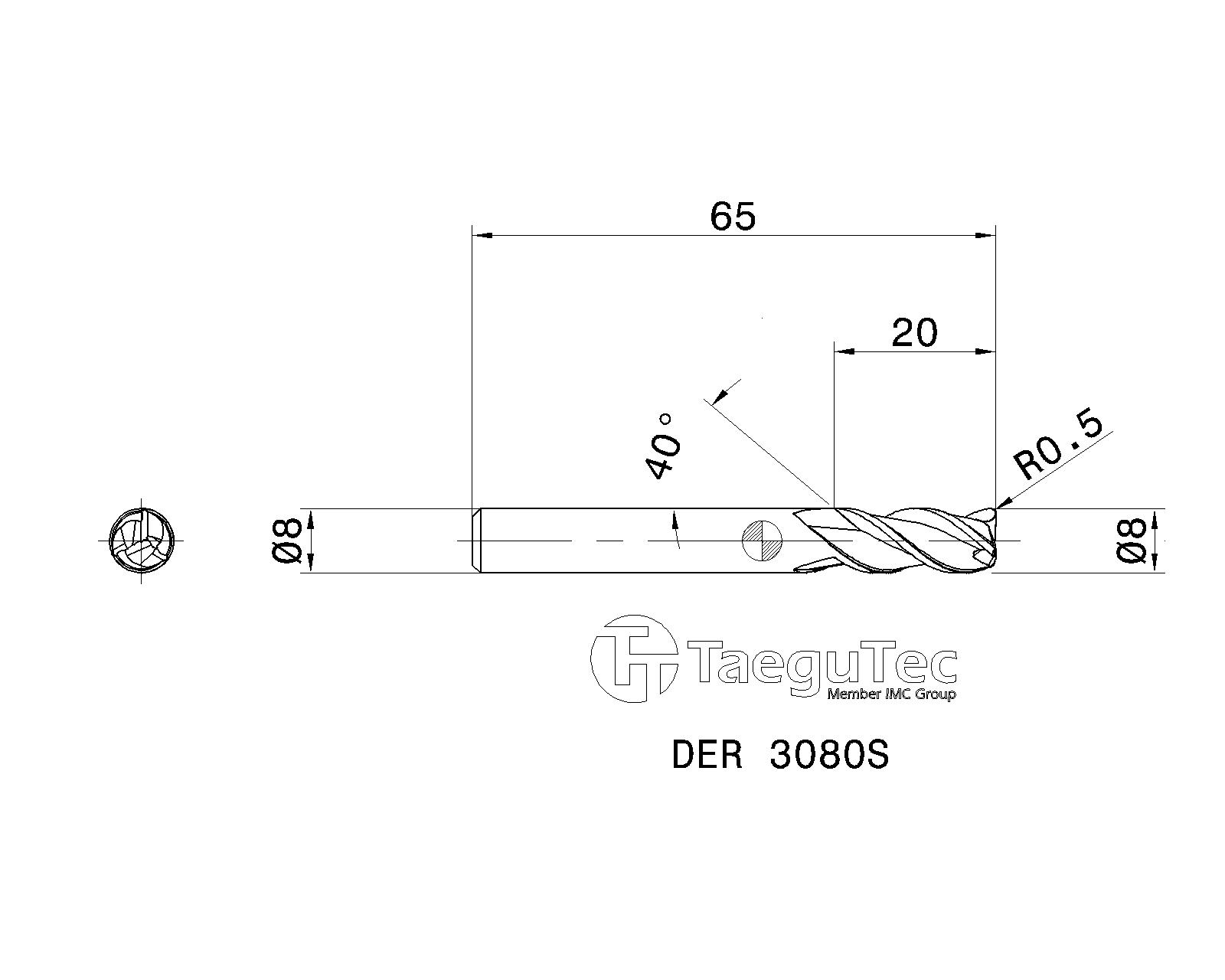

2D Representation
