Hole Making
Main Application
Drilling
Sub Application

Family Designation: 3HD-PI8 (8xD) 3 Flute Solid carbide drills with coolant holes for high productivity
Drilling depth: 8xDiameter

Drilling depth: 8xDiameter

 DR COOLANT-TCD/LCD/NHD(PI)/SHO
Item Designation: 3HD 055-048-06 PI8

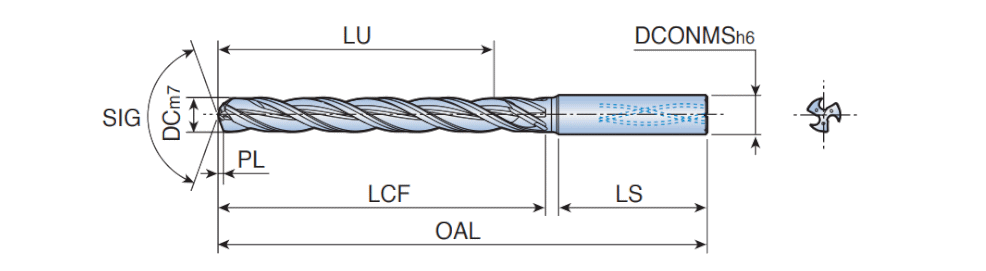

Tool sty DC DCONMS OAL SIG LU LCF LS PL d Zeff  L/D Machines Min Tol Max Tol Shank ClssID CCFMS CCTMS LTA GICATGIREMgiic
SOLID TYPE ~5.506.0095.0014048.057.036.01.086.00~3~Y ~0.00~ ~0~0~C ~71E01A0608FE4 ~01 ~ZYL ~57.92~6245186 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6245186 TT51303<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6245186&cat=6245186&itemDesc=3HD 055-048-06 PI8"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6245186', '3HD 055-048-06 PI8' , 'DXF' , '6245186 - 3HD 055-048-06 PI8');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6245186&itemDesc=3HD 055-048-06 PI8"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
For recommended machining condition, please click on "More Info"

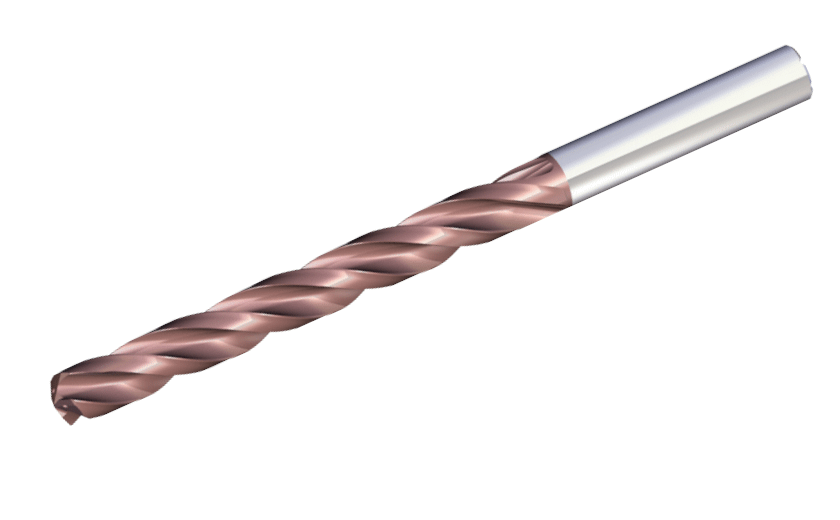

3D Representation

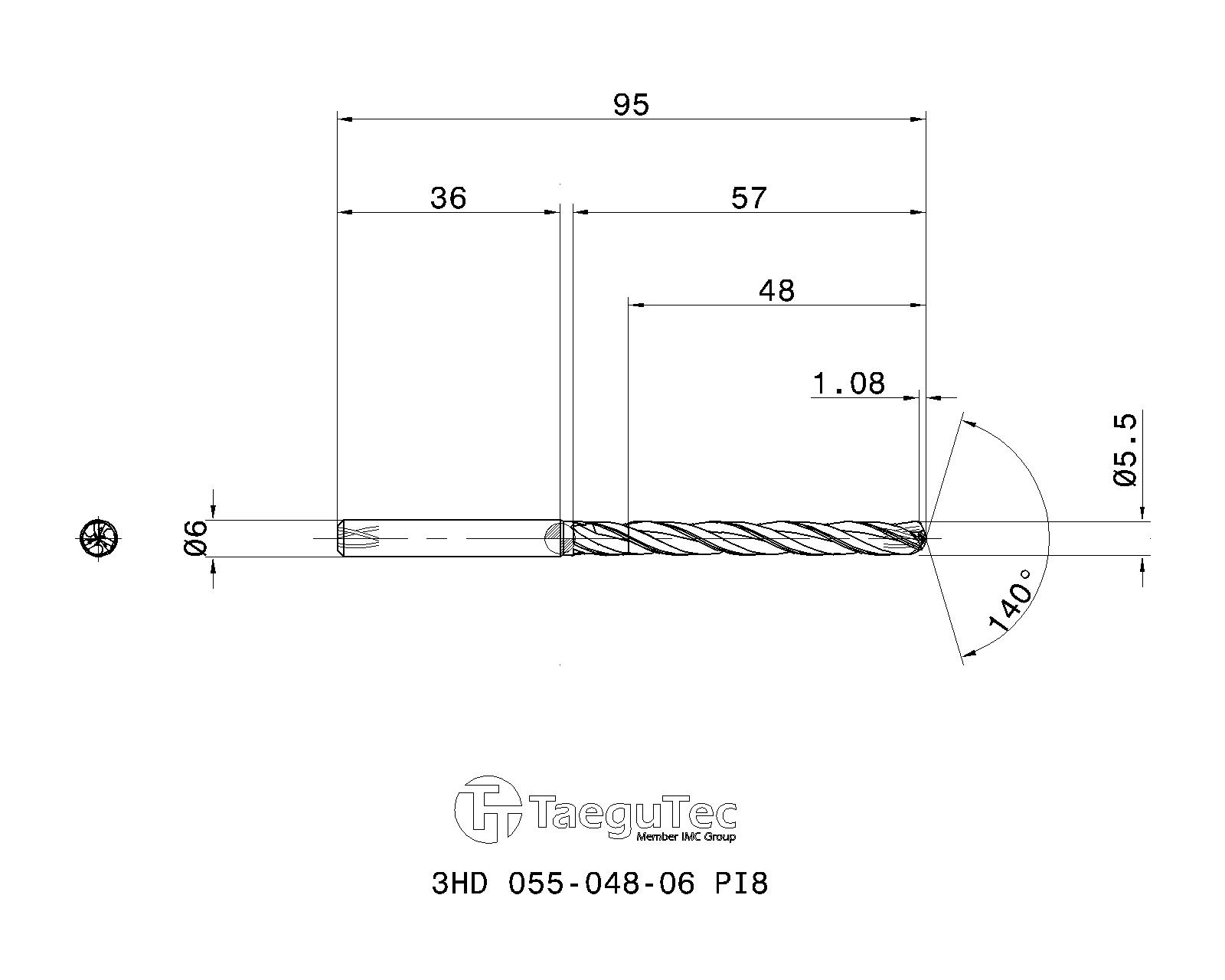

2D Representation
