Hole Making
Main Application
Drilling
Sub Application

Family Designation: 3HD-PI8 (8xD) 3 Flute Solid carbide drills with coolant holes for high productivity
Drilling depth: 8xDiameter

Drilling depth: 8xDiameter

 DR COOLANT-TCD/LCD/NHD(PI)/SHO
Item Designation: 3HD 075-064-08 PI8
Tool sty DC DCONMS OAL SIG LU LCF LS PL d Zeff  L/D Machines Min Tol Max Tol Shank ClssID CCFMS CCTMS LTA GICATGIREMgiic
SOLID TYPE ~7.508.00114.0014064.076.036.01.408.00~3~Y ~0.00~ ~0~0~C ~71E01A0608FE4 ~01 ~ZYL ~76.60~6245189 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6245189 TT51306<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6245189&cat=6245189&itemDesc=3HD 075-064-08 PI8"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6245189', '3HD 075-064-08 PI8' , 'DXF' , '6245189 - 3HD 075-064-08 PI8');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6245189&itemDesc=3HD 075-064-08 PI8"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
For recommended machining condition, please click on "More Info"
3D Representation

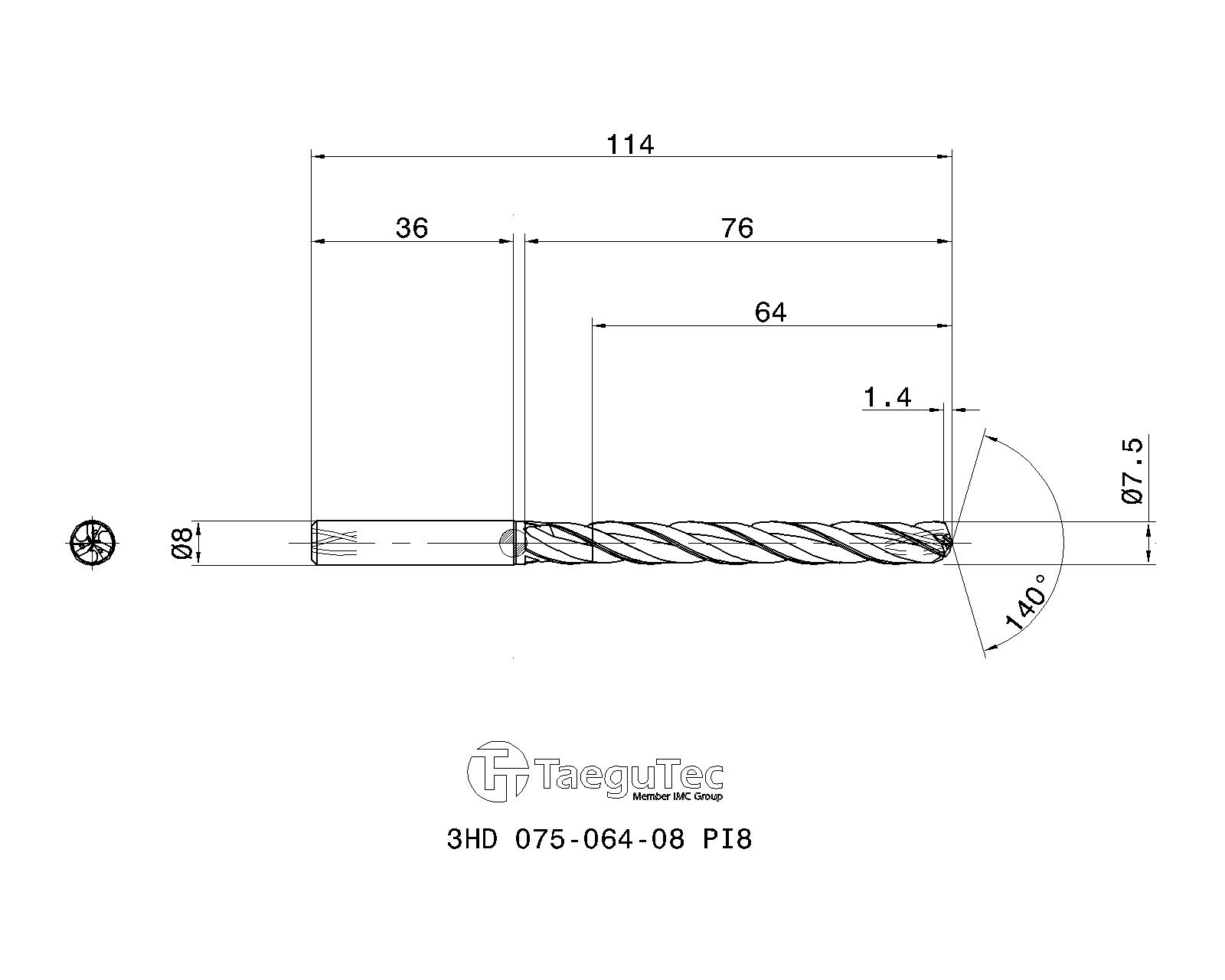

2D Representation
