Hole Making
Main Application
Drilling
Sub Application

Family Designation: 3ED-3XD (Cylindrical Shank) Head changeable 3 flute drills with coolant holes for high productivity
Drilling depth: 3xdiameter

Drilling depth: 3xdiameter

 DR COOLANT-TCD/LCD/NHD(PI)/SHO
Item Designation: 3ED 120-124-16T0-3D
Tool sty DCN  DCX  DCONMS DF LU LPR LS OAL PL SSC   MIID ClssID Machines Zeff Min Tol Max Tol Shank CICT DC L/D CCFMS CCTMS LTA GICATGIREMgiic
HEAD TYPE ~12.0012.4016.0020.0040.060.7048.0108.702.7412 Y ~3ED-12-P+ 72550E1361C6C ~ ~3~0~0~C ~1~12.00~3.00~01 ~ZYL ~57.96~6247117 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6247117 6<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6247117&cat=6247117&itemDesc=3ED 120-124-16T0-3D"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6247117', '3ED 120-124-16T0-3D' , 'DXF' , '6247117 - 3ED 120-124-16T0-3D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6247117&itemDesc=3ED 120-124-16T0-3D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

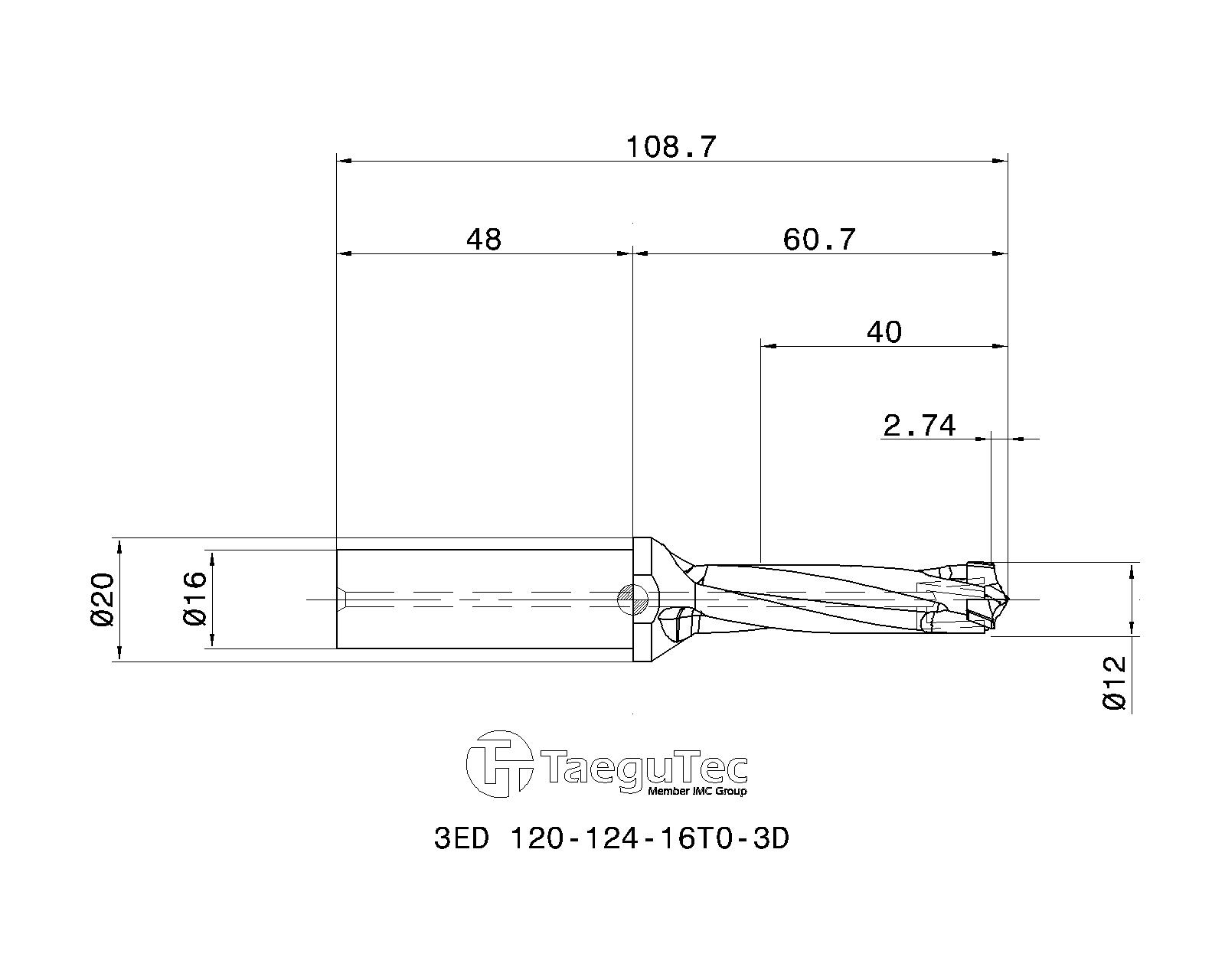

2D Representation
  Spare Parts
6323065K 3ED D12-D13Clamping key
