Hole Making
Main Application
Drilling
Sub Application

Family Designation: 3HD-FI5 (5xD) 3 flute solid carbide drills with flat bottom geometry in drilling depth of 5xD for high productivity and flat-bottom hole drilling
Drilling depth: 5xDiameter

Drilling depth: 5xDiameter

 DR COOLANT-TCD/LCD/NHD(PI)/SHO
Item Designation: 3HD 110-056-12 FI5
Tool sty DC DCONMS OAL LU LCF LS PDD PL d Zeff  L/D Machines Min Tol Max Tol Shank ClssID CCFMS CCTMS LTA GICATGIREMgiic
SOLID TYPE ~11.0012.00118.0056.071.045.01.980.9512.00~3~Y ~0.00~ ~0~0~C ~71E01A0608FE4 ~01 ~ZYL ~72.05~6247661 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6247661 TT51306<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6247661&cat=6247661&itemDesc=3HD 110-056-12 FI5"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6247661', '3HD 110-056-12 FI5' , 'DXF' , '6247661 - 3HD 110-056-12 FI5');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6247661&itemDesc=3HD 110-056-12 FI5"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
For recommended machining condition, please click on "More Info"
3D Representation

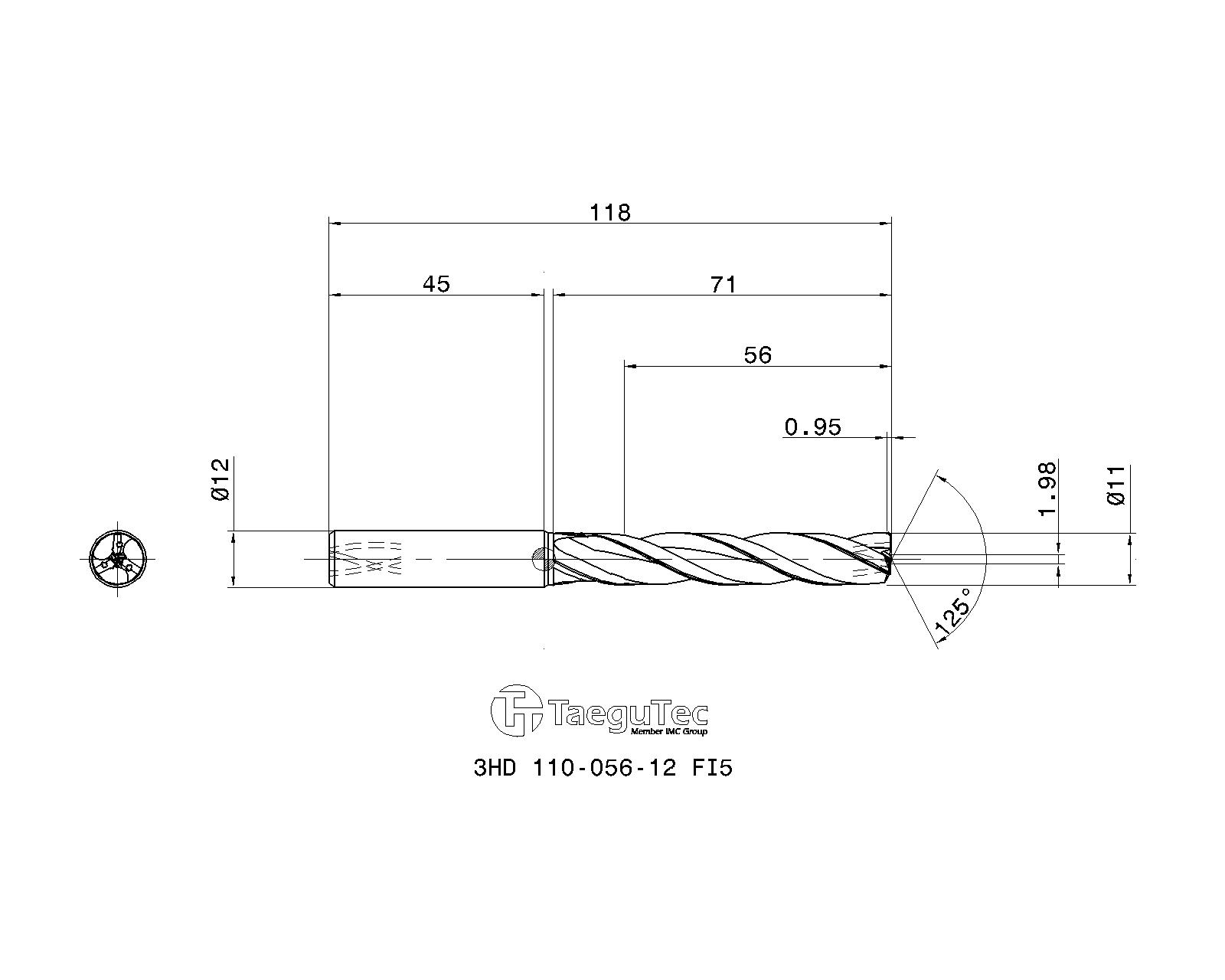

2D Representation
