TaeguTec Cutting Tools - Metal Working Tools - SED 7 : 6304143 - SED 7060
× Login Information
Family Designation: SED 7 7 Flute solid carbide end mills with unequal spaced cutting edges for semi-finishing and finishing of difficult-to-cut materials in trochoidal high productivity machining
 EM FLUTES_7                                        EM HELIX ANGLE_38

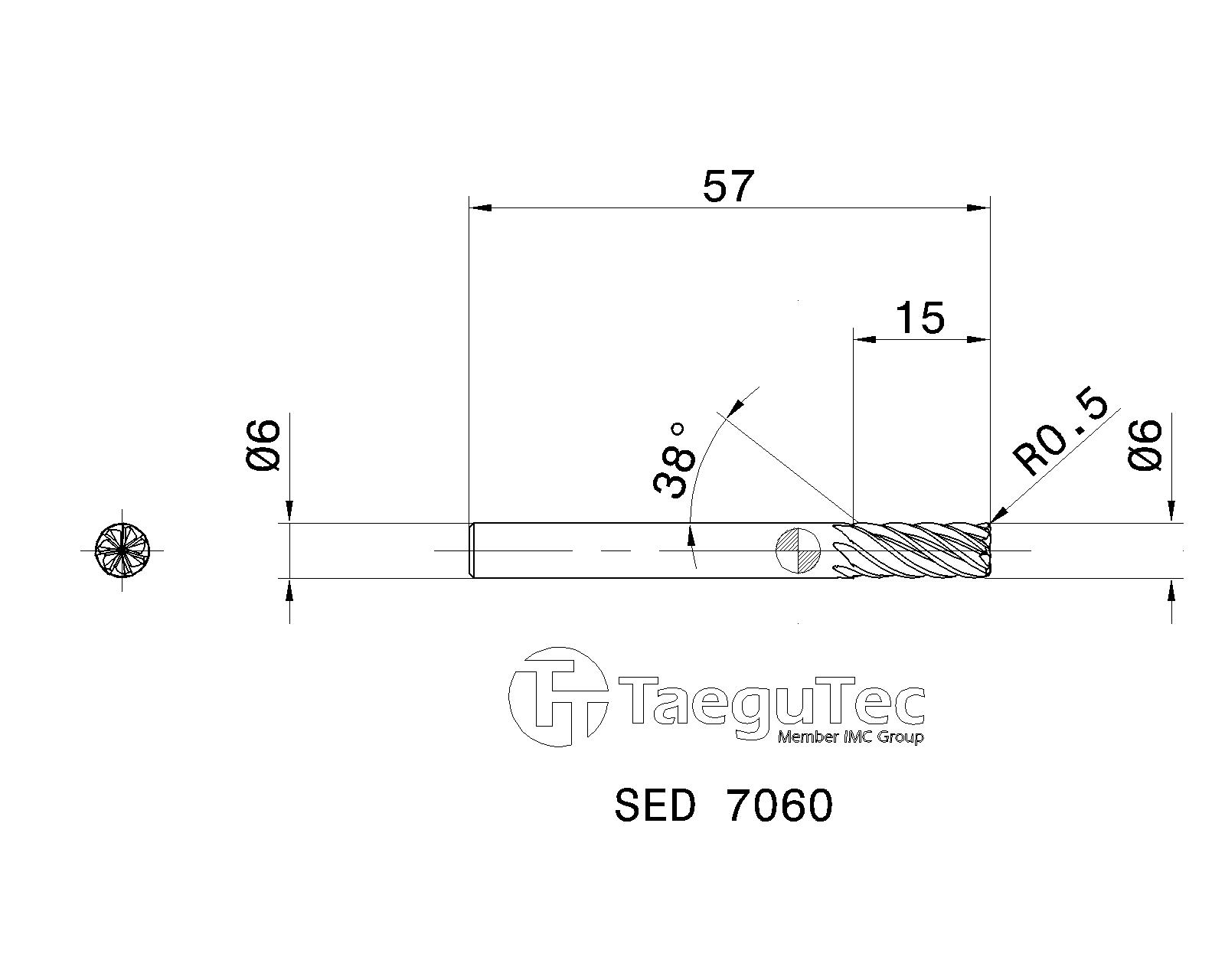

Item Designation: SED 7060
Tool sty DC RE OAL APMX DCONMS NOF  Type Machine H.A Shank Rd fz
SOLID TYPE ~6.000.5057.0015.006.007~ ~ ~38.0~C ~7.00~0.0200.0406.00~71E01A05D27A8 ~ ZYL ~01 ~21.00~6304143 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6304143 TT55153<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6304143&cat=6304143&itemDesc=SED 7060"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6304143', 'SED 7060' , 'DXF' , '6304143 - SED 7060');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6304143&itemDesc=SED 7060"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
4D: 4xD depth of cut
3D Representation
2D Representation
