TaeguTec Cutting Tools - Metal Working Tools - SED 7 : 6304144

7 Flute solid carbide end mills with unequal spaced cutting edges for semi-finishing and finishing of difficult-to-cut materials in trochoidal high productivity machining

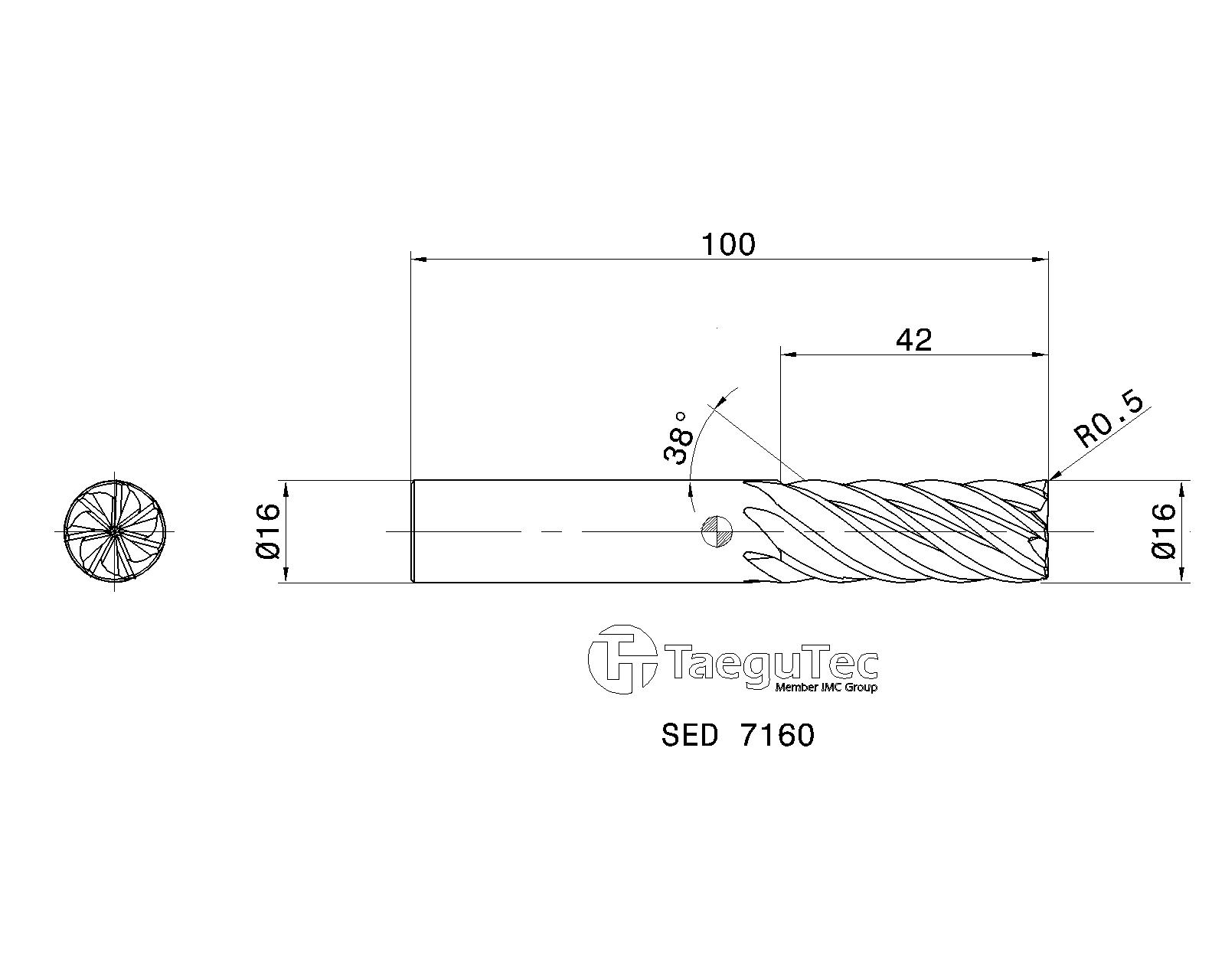

Item Designation: SED 7160

Tool sty	DC	RE	OAL	APMX	DCONMS	NOF	Type	Machine	H.A	Shank	Rd	fz (min)	fz (max)	d	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	16.00	0.50	100.00	42.00	16.00	7~	~	~	38.0~	C ~	7.00~	0.040	0.110	16.00~	71E01A05D27A8 ~	ZYL ~	01 ~	52.00~	6304144		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
6304144	TT5515			1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6304144&cat=6304144&itemDesc=SED 7160"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6304144', 'SED 7160' , 'DXF' , '6304144 - SED 7160');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6304144&itemDesc=SED 7160"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1
4D: 4xD depth of cut

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
