Family Designation: CRF 6
|
6 Flute Ceramic end mills with corner R and unequal spacing of cutting edges for machining of superalloys in less vibration in shouldering and profiling
|
Use only air (Coolant is prohibited)
Tool life of ceramic tools is determined not by wear size but by acceptable level of burrs
Use only air (Coolant is prohibited)
Tool life of ceramic tools is determined not by wear size but by acceptable level of burrs

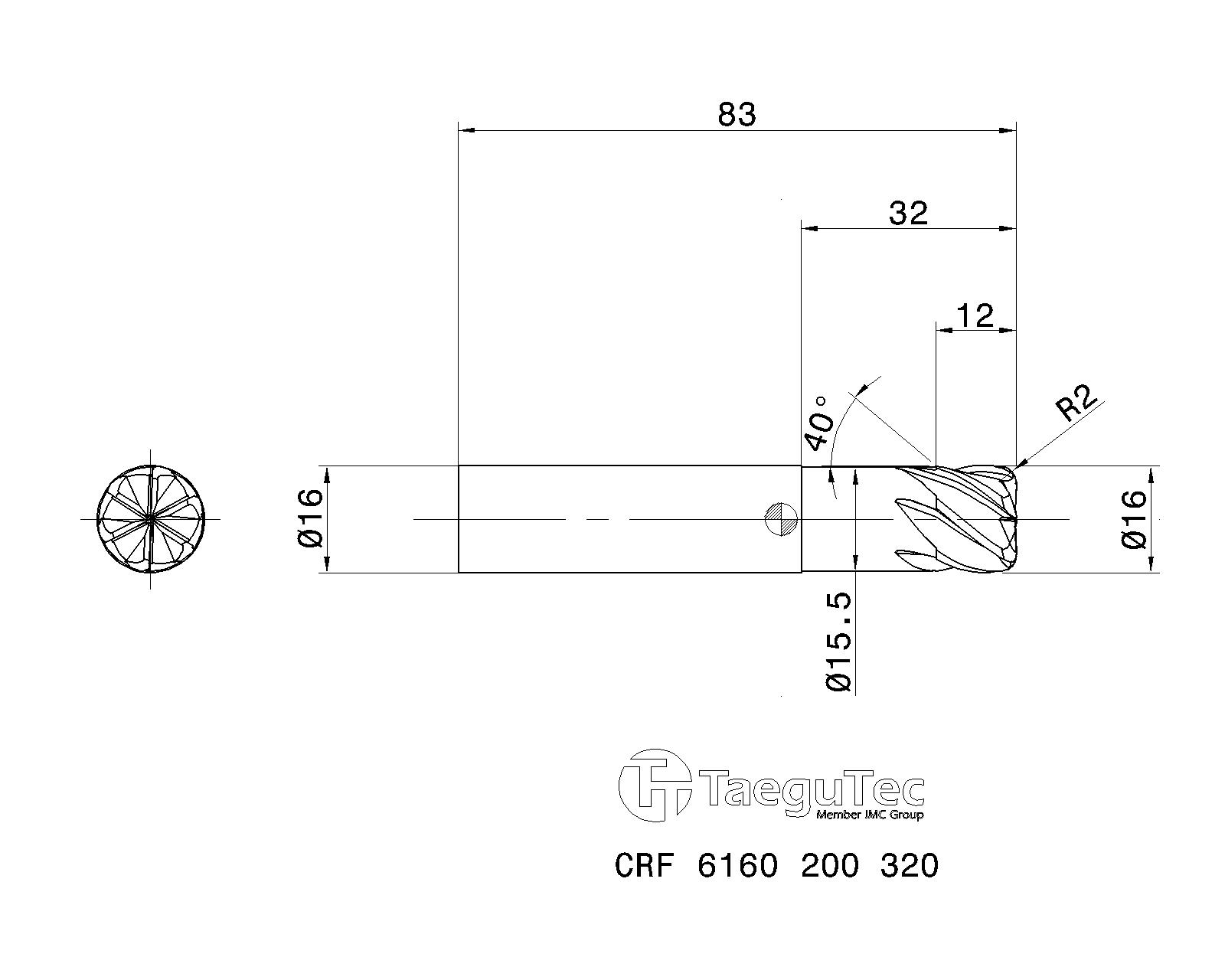

Item Designation: CRF 6160 200 320
| Tool sty | DC | RE | OAL | APMX | LU | DN | DCONMS | NOF  | Type | Machine | H.A | Shank | Rd | fz
(min) | fz
(max) | d | ClssID | CCTMS | CCFMS | LTA | GICAT | GIREM | giic |
| SOLID TYPE ~ | 16.00 | 2.00 | 83.00 | 12.00 | 32.0 | 15.50 | 16.00 | 6~ | ~ | ~ | 40.0~ | C ~ | 3.00~ | 0.030 | 0.050 | 16.00~ | 71E01A05D27A8 ~ | ZYL ~ | 01 ~ | 35.00~ | 6307564 | | 1 |
| Catalog No | Grade & Vc | Alternative | Files Package | GISC | GTC | DXF | Add to favorites | Properties File | P21 |
| 6307564 | TC3030 | |  | 3 | <a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6307564&cat=6307564&itemDesc=CRF 6160 200 320"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a> | <a href="javascript:OpenDxf('6307564', 'CRF 6160 200 320' , 'DXF' , '6307564 - CRF 6160 200 320');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a> |  |  | <a href="FilesDownload.aspx?FileType=P&cat=6307564&itemDesc=CRF 6160 200 320"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a> |
Items Per Package : 1
