Family Designation: CRH 4
|
4 Flute High Feed Ceramic end mills for high speed machining of superalloys
|
Use only air (Coolant is prohibited)
Tool life of ceramic tools is determined not by wear size but by acceptable level of burrs
Use only air (Coolant is prohibited)
Tool life of ceramic tools is determined not by wear size but by acceptable level of burrs

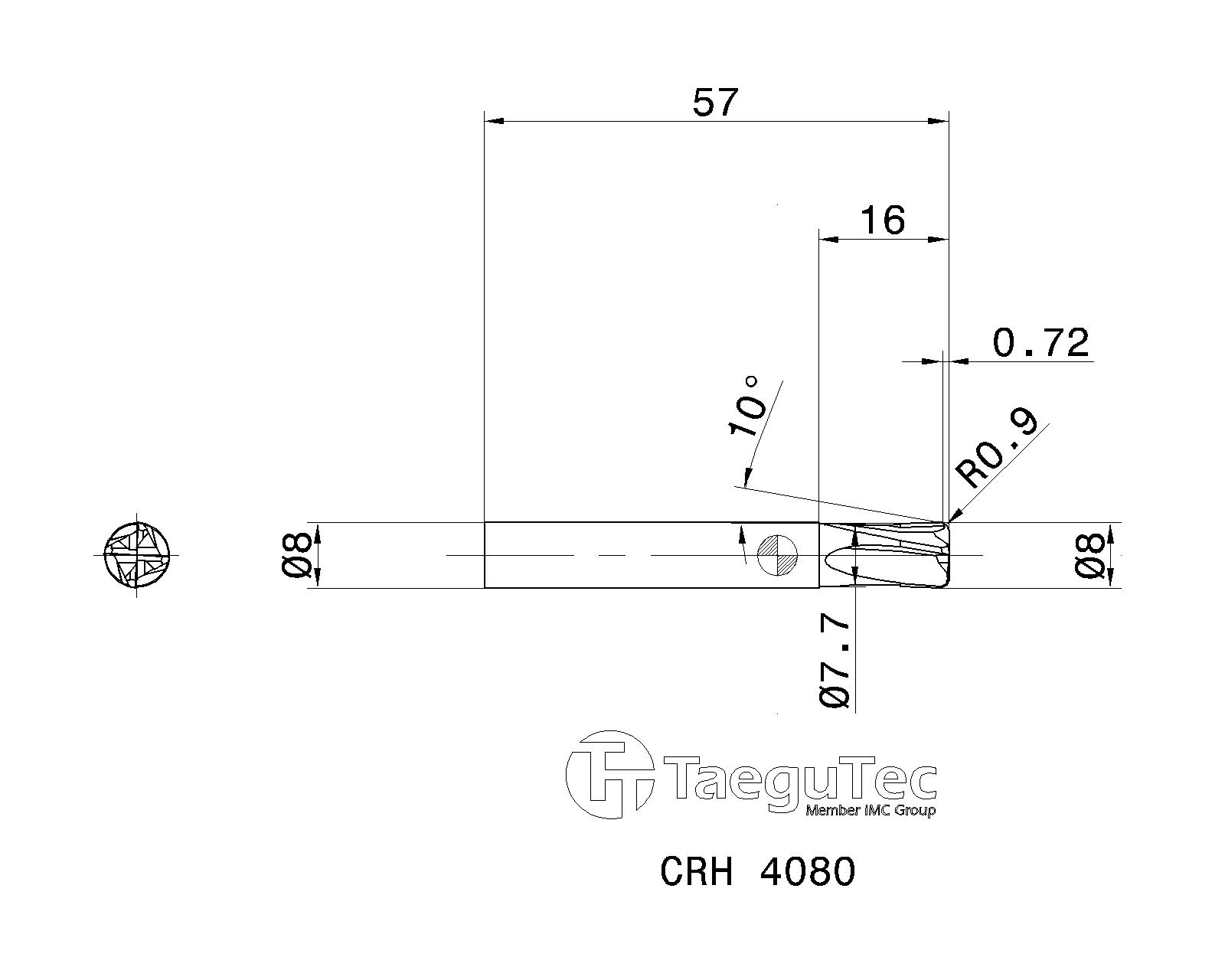

Item Designation: CRH 4080
| Tool sty | DC | RE | OAL | APMX | LU | DN | DCONMS | Type | Machine | H.A | Shank | Rd | fz
(min) | fz
(max) | NOF  | d | ClssID | CCTMS | CCFMS | LTA | GICAT | GIREM | giic |
| SOLID TYPE ~ | 8.00 | 0.90 | 57.00 | 0.75 | 16.0 | 7.70 | 8.00 | ~ | ~ | 10.0~ | C ~ | 3.00~ | 0.100 | 0.200 | 4~ | 8.00~ | 71E01A05D27A8 ~ | ZYL ~ | 01 ~ | 21.00~ | 6308328 | | 1 |
| Catalog No | Grade & Vc | Alternative | Files Package | GISC | GTC | DXF | Add to favorites | Properties File | P21 |
| 6308328 | TC3030 | |  | 3 | <a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6308328&cat=6308328&itemDesc=CRH 4080"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a> | <a href="javascript:OpenDxf('6308328', 'CRH 4080' , 'DXF' , '6308328 - CRH 4080');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a> |  |  | <a href="FilesDownload.aspx?FileType=P&cat=6308328&itemDesc=CRH 4080"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a> |
Items Per Package : 1
