Hole Making
Main Application
Drilling
Sub Application

Family Designation: 3HD-PI3 (3xD) 3 Flute Solid carbide drills with internal coolant holes in drilling depth of 3xD for high productivity
Drilling depth: 3xDiameter

Drilling depth: 3xDiameter

 DR COOLANT-TCD/LCD/NHD(PI)/SHO
Item Designation: 3HD 120-040-12 PI3
Tool sty DC DCONMS OAL LU LCF LS PL d Zeff  L/D Machines Min Tol Max Tol Shank ClssID CCFMS CCTMS LTA GICATGIREMgiic
SOLID TYPE ~12.0012.00102.0040.056.045.02.2112.00~3~Y ~3.00~ ~0~0~C ~71E01A0608FE4 ~01 ~ZYL ~54.79~6308957 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6308957 TT51303<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6308957&cat=6308957&itemDesc=3HD 120-040-12 PI3"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6308957', '3HD 120-040-12 PI3' , 'DXF' , '6308957 - 3HD 120-040-12 PI3');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6308957&itemDesc=3HD 120-040-12 PI3"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
For recommended machining condition, please click on "More Info"
3D Representation

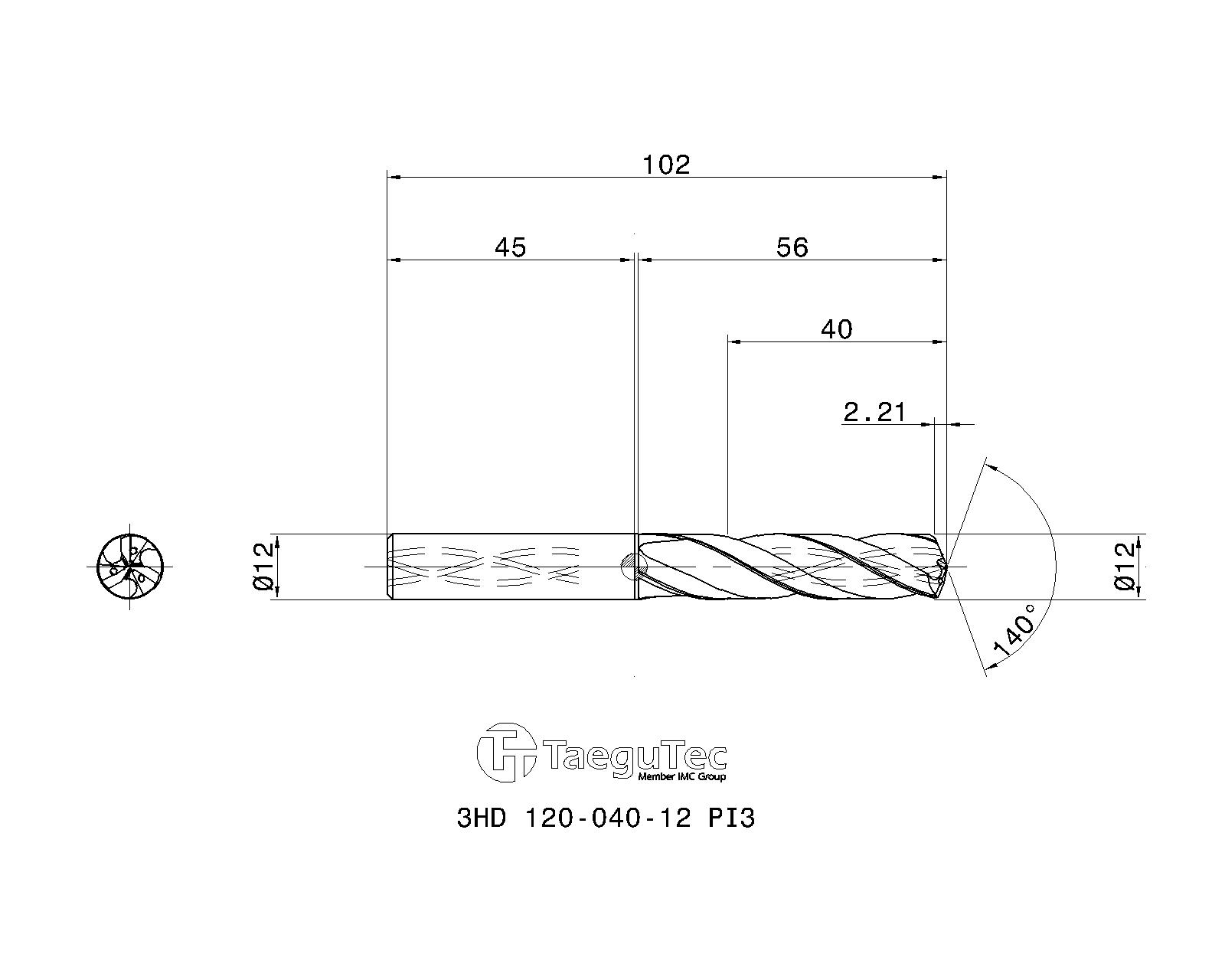

2D Representation
