Family Designation: TR- (Shank) Cylindrical shanks with neck or tapered neck in steel for slotting & threading heads


Item Designation: TR15-16-L100
DCONMS DCONWS LB LF OAL THSZWS LDRED BHTA  Fig. ClssID GICATGIREMgiic
16.0015.0018.20100.00104.90M5x0.5 16.0-X 171EAD3871D313 ~6312346 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6312346 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6312346&cat=6312346&itemDesc=TR15-16-L100"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6312346', 'TR15-16-L100' , 'DXF' , '6312346 - TR15-16-L100');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6312346&itemDesc=TR15-16-L100"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

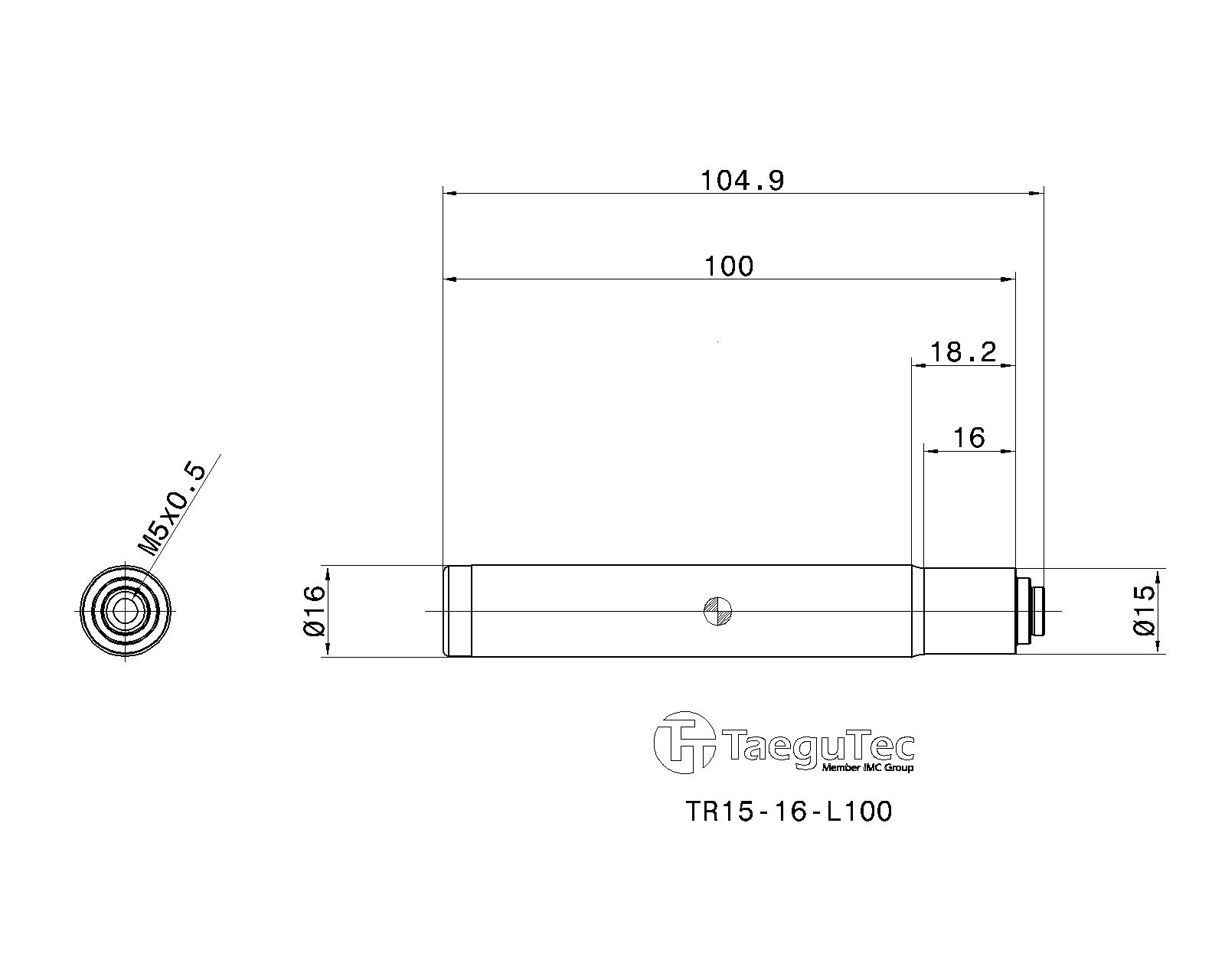

2D Representation
  Spare Parts
6304975TS 50T110/HG-PScrew
4354567BLD_IP20/S7Torx wrench
4354566SW6-TWrench handle
