Family Designation: DIN2080-NTMC (Milling Chuck) Milling chucks with DIN 2080 Taper shank with coolant hole


 IT_N5  IT_SURFACE HARDNESS 59~61HRC  IT_RUN-OUT A0.01  IT_TAPER SHANK GRADE
Item Designation: DIN2080 50 NTMC 32-90

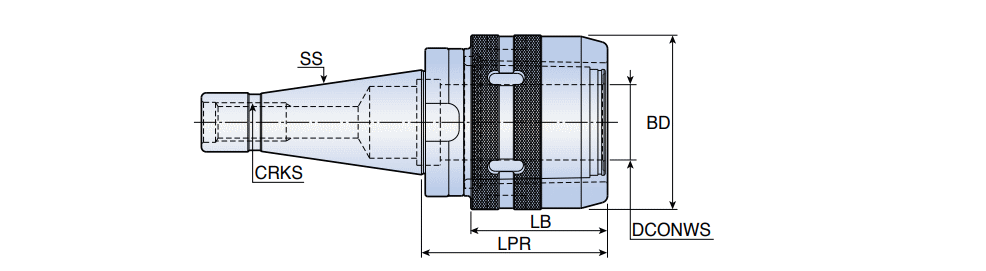

SS DCONWS BD LPR LB CRKS S1 Shank ClssID LTA CCTWS CCFWS GICATGIREMgiic
50 32.0074.0090.0071.80M24 0.00~C ~71EAD3871D313 ~90.00~ZYL ~01 ~6312477 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6312477 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6312477&cat=6312477&itemDesc=DIN2080 50 NTMC 32-90"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6312477', 'DIN2080 50 NTMC 32-90' , 'DXF' , '6312477 - DIN2080 50 NTMC 32-90');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6312477&itemDesc=DIN2080 50 NTMC 32-90"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

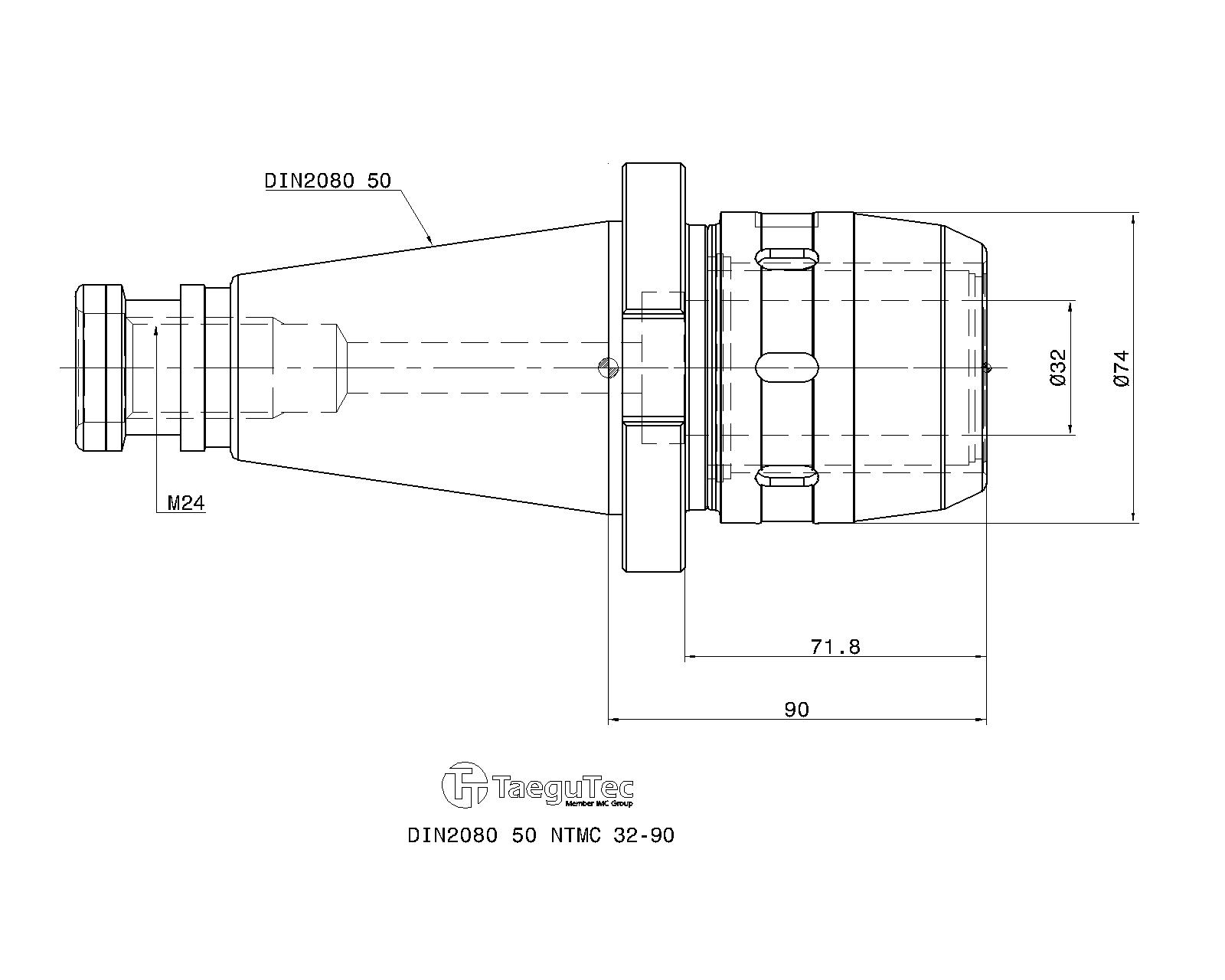

2D Representation
