Family Designation: APCT 1705 R/PER-AL
|
Positive ground & polished AP 17 inserts with sharp helical cutting edges for aluminum & non-ferrous materials machining in 90° shoulders
|

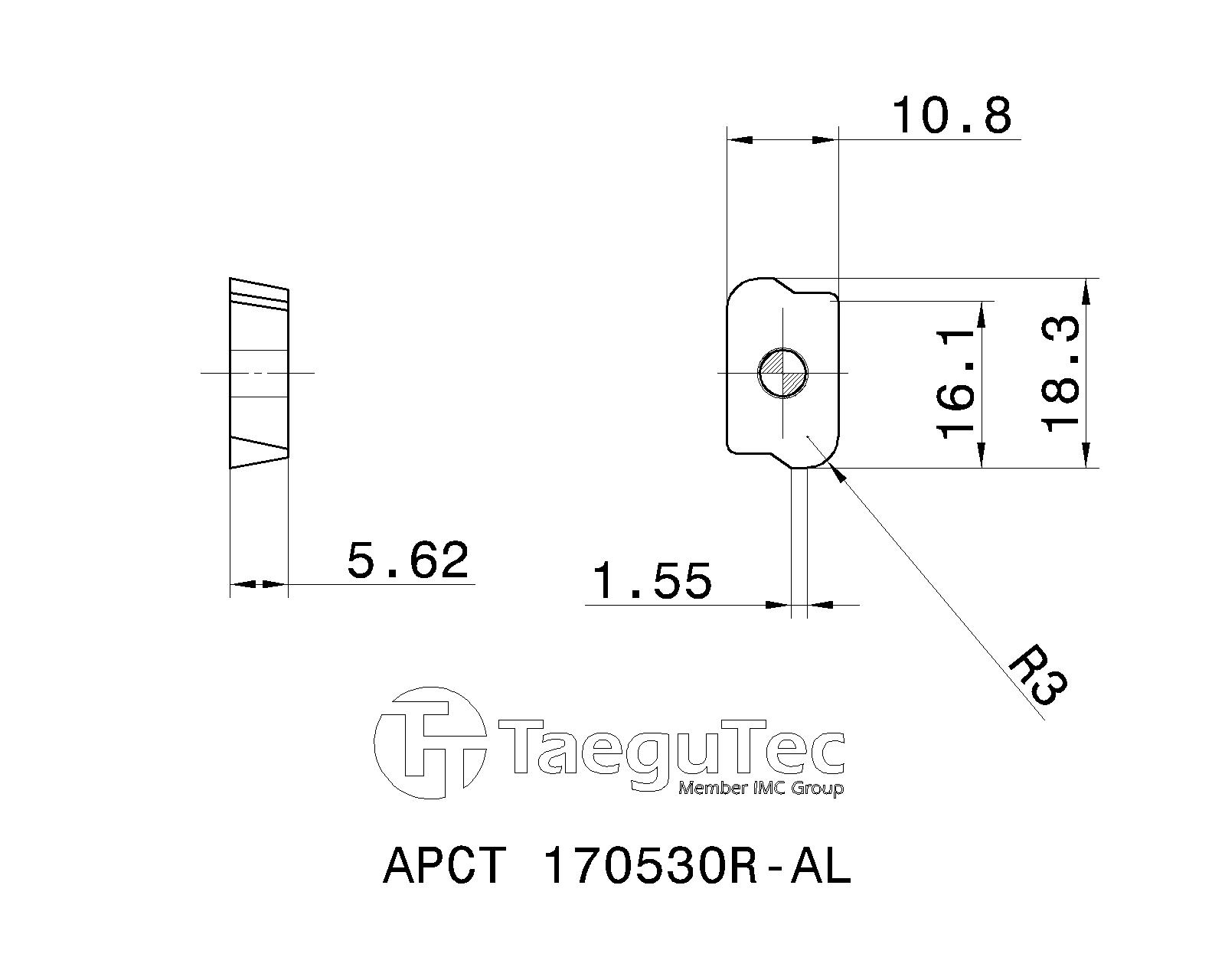

Item Designation: APCT 170530R-AL
| INSL | W1 | S | APMX | BS | RE | S1 | S2 | CEDC | Insert | fz
(max) | fz
(min) | ap
(min) | ap
(max) | SF | ClssID | | CB | GRDMFG | GICAT | GIREM | giic |
| 18.30 | 10.80 | 5.62 | 16.10 | 1.55 | 3.00 | 17.00~ | ~ | 2~ | CM-AP17 ~ | 0.500 | 0.100 | 4.50 | 13.00 | M6 ~ | 71DD68D91938A ~ | G10 ~ | AL ~ | K10 ~ | 6314147 | | 1 |
| Catalog No | Grade & Vc | Alternative | Files Package | GISC | GTC | Add to favorites | Properties File | P21 |
| 6314147 | K10 | |  | 1 | <a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=0&p21=6314147&cat=6314147&itemDesc=APCT 170530R-AL"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a> |  |  | <a href="FilesDownload.aspx?FileType=P&cat=6314147&itemDesc=APCT 170530R-AL"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a> |
Items Per Package : 10
