Family Designation: HSB 2CBN Solid CBN ball end mills of small dia with helix cutting edge for machining of high-hardness materials
 EM FLUTES_2                                        EM HELIX ANGLE_30
Item Designation: HSB 2CBN 2004-1.5
Tool sty DC RE OAL APMX LU DCONMS NOF  Type Machine H.A Shank Rd fz
SOLID TYPE ~0.400.2048.000.301.54.002~ ~ ~30.0~C ~0.00~0.0070.00971E01A05D27A8 ~ZYL ~01 ~28.00~6334651 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6334651 TB70153<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6334651&cat=6334651&itemDesc=HSB 2CBN 2004-1.5"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6334651', 'HSB 2CBN 2004-1.5' , 'DXF' , '6334651 - HSB 2CBN 2004-1.5');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6334651&itemDesc=HSB 2CBN 2004-1.5"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
For recommended machining condition & machining guide, please click on "More Info".
3D Representation

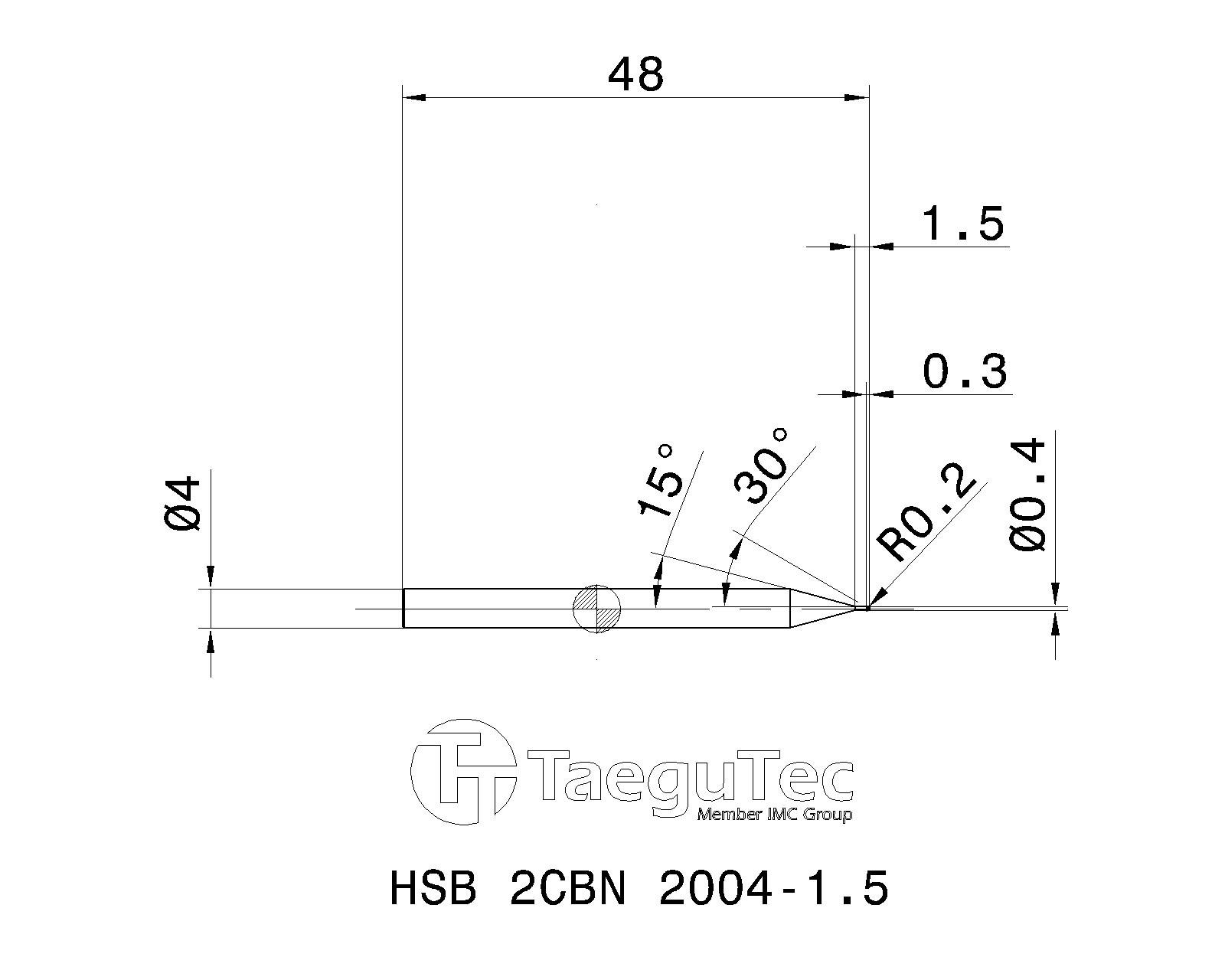

2D Representation
