Family Designation: SED 7...N 7 Flute chip splitter type solid carbide end mills with unequal spaced cutting edges for roughing of difficult-to-cut materials in trochoidal high productivity, less vibration and low cutting force machining


 EM HELIX ANGLE_38  EM FLUTES_7
Item Designation: SED 7160-4D-N

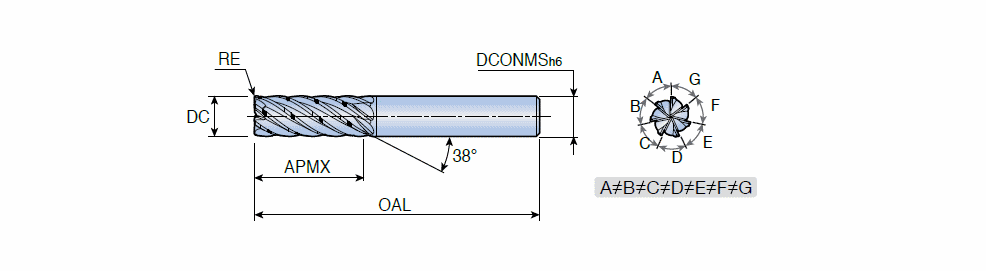

Tool sty DC RE OAL APMX DCONMS NOF  Type Machine H.A Shank Rd fz
(min) 		fz
(max) 		d ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~16.000.50125.0064.0016.007~ ~ ~38.0~C ~7.00~0.0400.11016.00~71E01A05D27A8 ~ ZYL ~01 ~77.00~6336705 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6336705 TT55153<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6336705&cat=6336705&itemDesc=SED 7160-4D-N"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6336705', 'SED 7160-4D-N' , 'DXF' , '6336705 - SED 7160-4D-N');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6336705&itemDesc=SED 7160-4D-N"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
N: chip splitter type
3D Representation

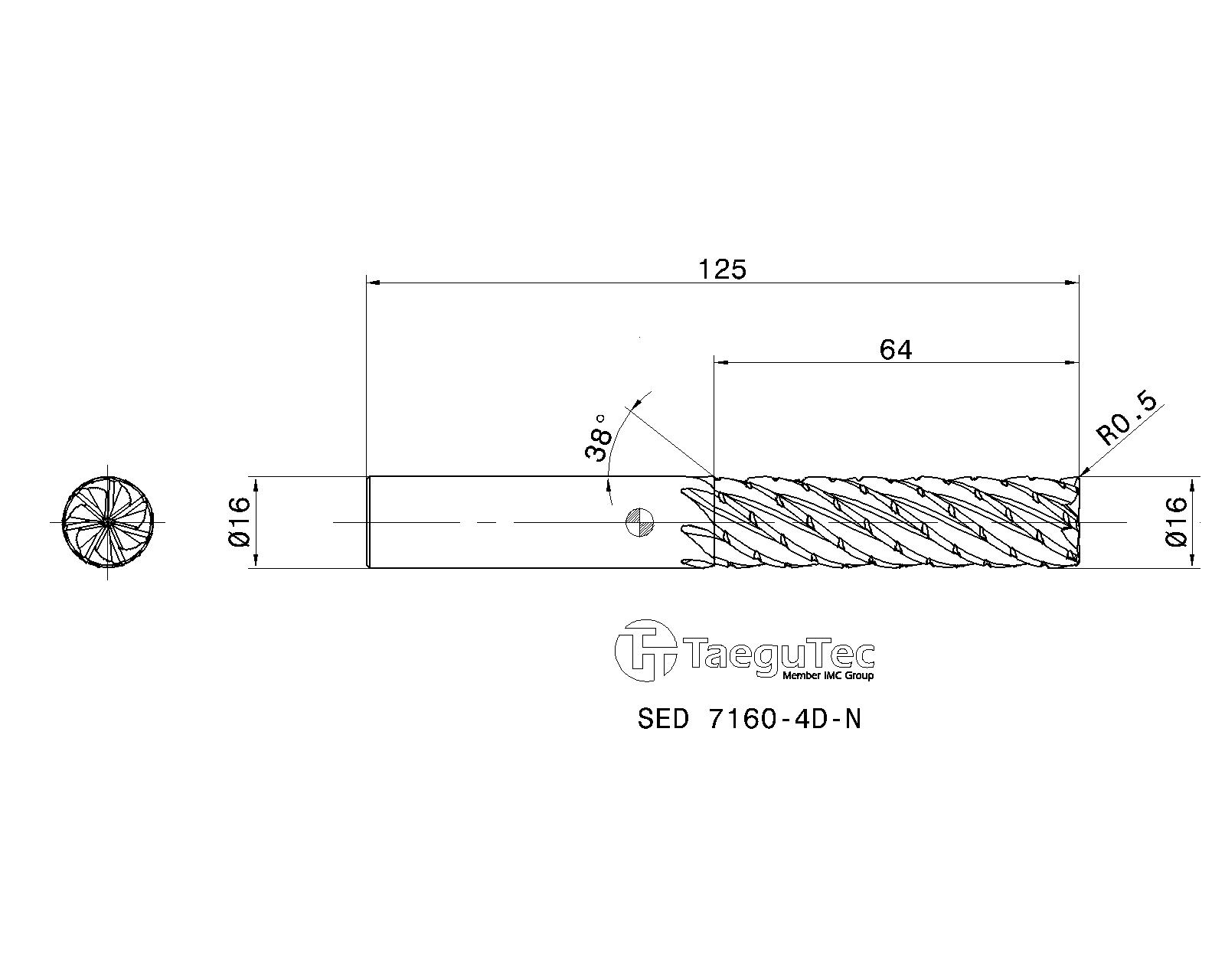

2D Representation
