Family Designation: 2S-TE90CV-05 End mills with unique high positive V shape inserts of two cutting edges for shouldering and high feed milling


 COOLANT
Item Designation: 2S-TE90CV-209-08-05
Tool sty DC CICT DCONMS OAL LH LU APMX Fig.  S1 Shank RMPX e PD Insert Pocket KAPR ClssID MIID CCTMS CCFMS LTA GICATGIREMgiic
ENDMILL ~9.0028.0080.0012.0-5.001O ~5.00~C ~1.75~ ~0.03C ~MILS-CV05 ~ ~90.0~71E01A05D27A8 ~CVKT 0502PNR-M ZYL ~01 ~44.00~6337715 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6337715 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6337715&cat=6337715&itemDesc=2S-TE90CV-209-08-05"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6337715', '2S-TE90CV-209-08-05' , 'DXF' , '6337715 - 2S-TE90CV-209-08-05');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6337715&itemDesc=2S-TE90CV-209-08-05"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Cutter body for '-HF' insert should be modified body corner radius RE=1.8mm
For ramping data, click on "More Info"
3D Representation

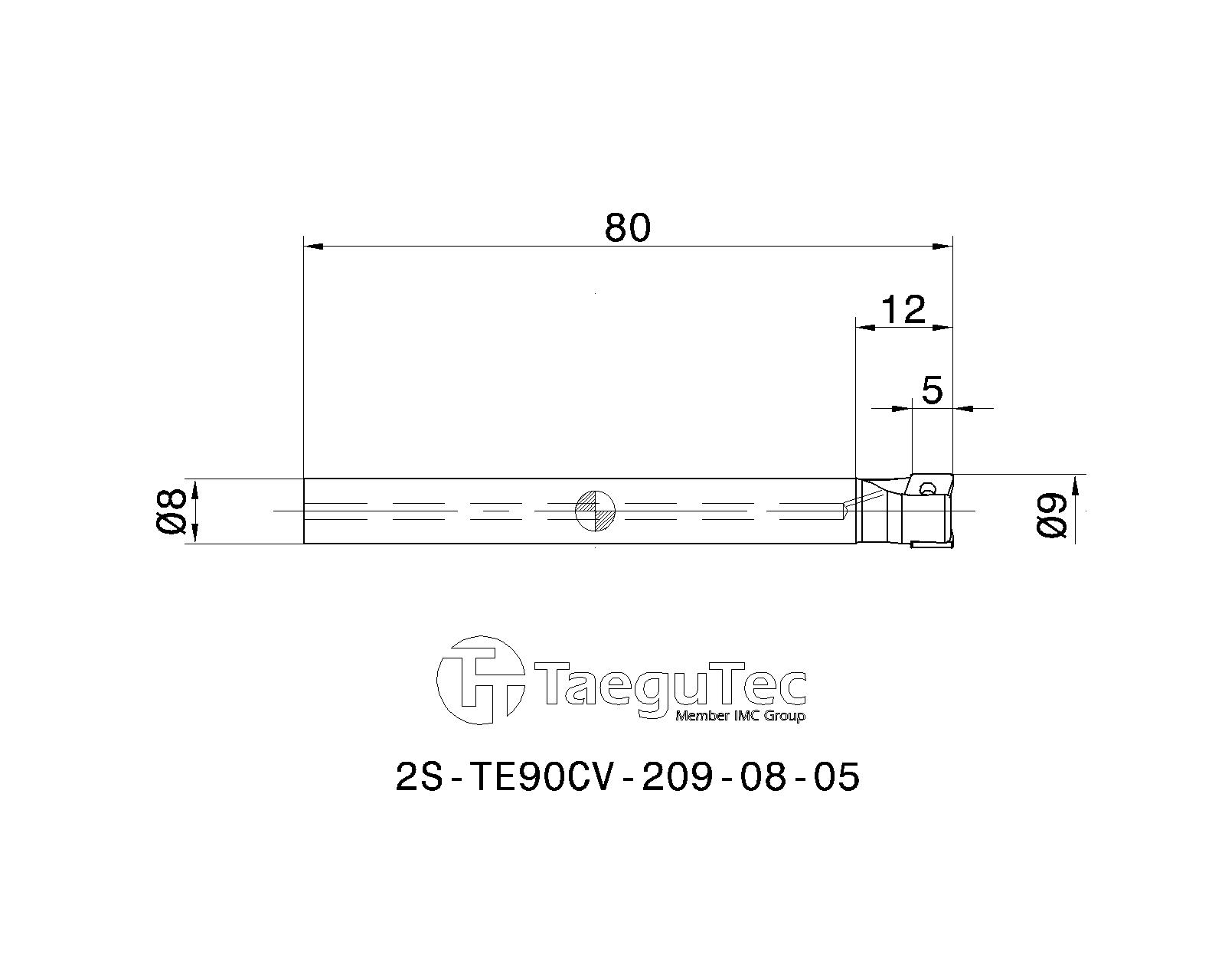

2D Representation
  Spare Parts
6313801TS 18033/HG-PScrew
4351828TD 6P(362IP 26091)TD wrench
