Reaming
Main Application
Blind Hole
Sub Application

Family Designation: TS-S-NS Solid carbide reamers with straight flute of DIN1420 and internal coolant channel for blind hole


 DR COOLANT-TS_S
Item Designation: TS-S0300-NS

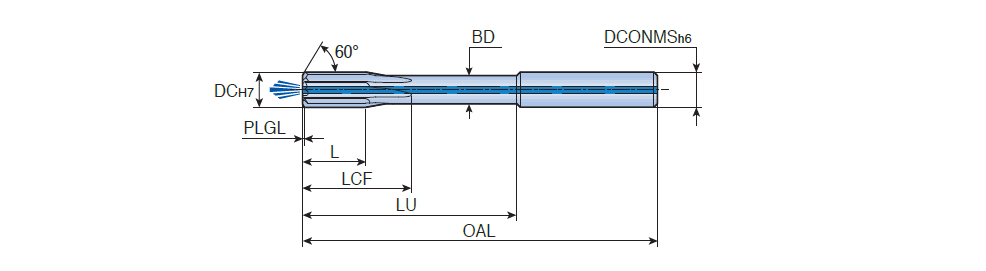

DC L PLGL LCF BD LU OAL DCONMS NOF  ClssID L/D GICATGIREMgiic
3.0012.000.25021.02.4031.060.004.00471E01A07BC535 ~0.00~6337954 DC 3.0 reamer is without coolant hole type 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6337954 TT50403<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6337954&cat=6337954&itemDesc=TS-S0300-NS"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6337954', 'TS-S0300-NS' , 'DXF' , '6337954 - TS-S0300-NS');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6337954&itemDesc=TS-S0300-NS"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
DC 3.0 reamer is without coolant hole type
Items Per Package : 1
3D Representation

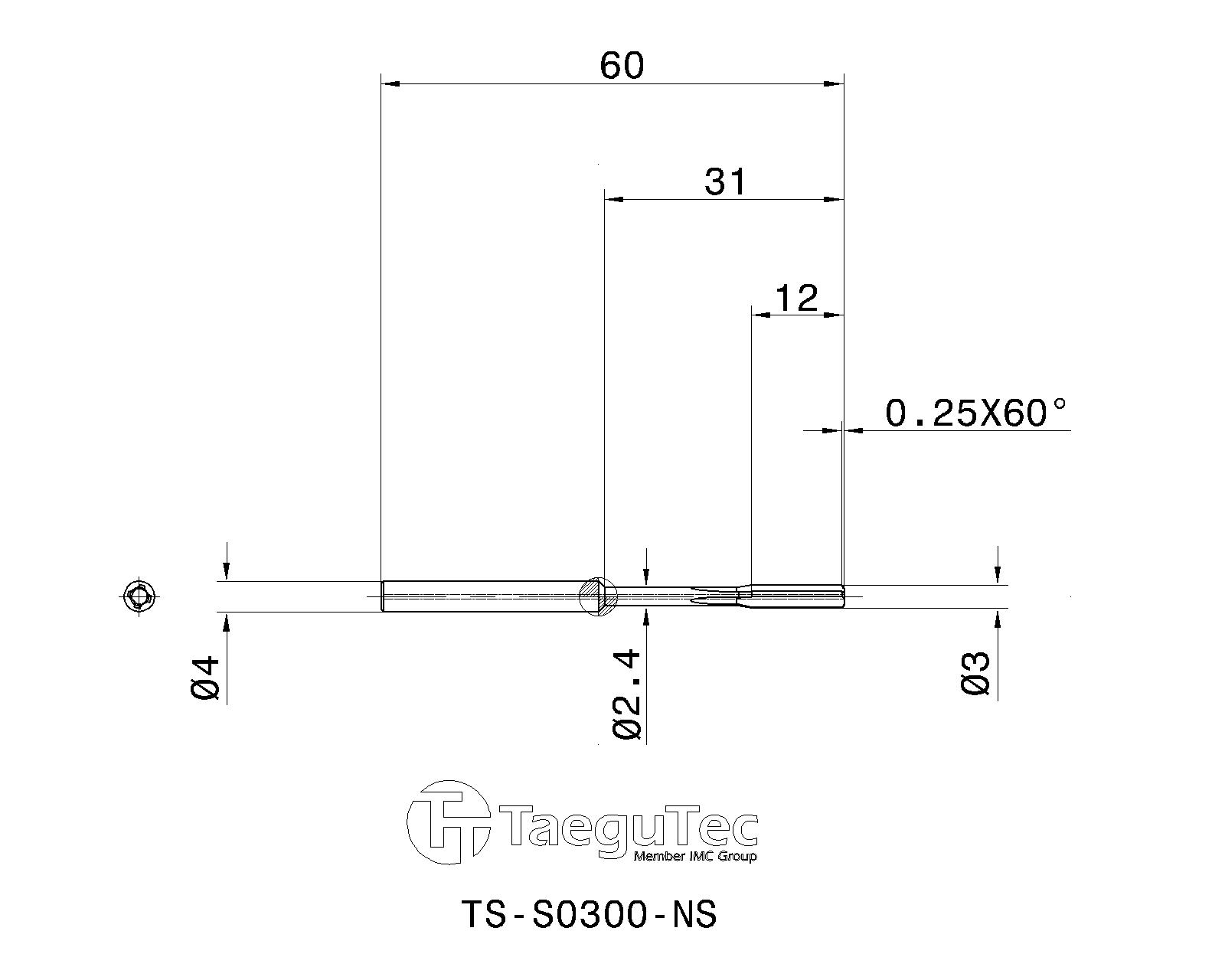

2D Representation
