TaeguTec Cutting Tools - Metal Working Tools - TS-S-NS : 6337955 - TS-S0400-NS
× Login Information
Reaming
Main Application
Blind Hole
Sub Application

Family Designation: TS-S-NS Solid carbide reamers with straight flute of DIN1420 and internal coolant channel for blind hole


 DR COOLANT-TS_S
Item Designation: TS-S0400-NS
DC L PLGL LCF BD LU OAL DCONMS NOF  ClssID L/D GICATGIREMgiic
4.0012.000.30017.03.4040.068.006.00471E01A07BC535 ~0.00~6337955 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6337955 TT50403<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6337955&cat=6337955&itemDesc=TS-S0400-NS"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6337955', 'TS-S0400-NS' , 'DXF' , '6337955 - TS-S0400-NS');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6337955&itemDesc=TS-S0400-NS"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

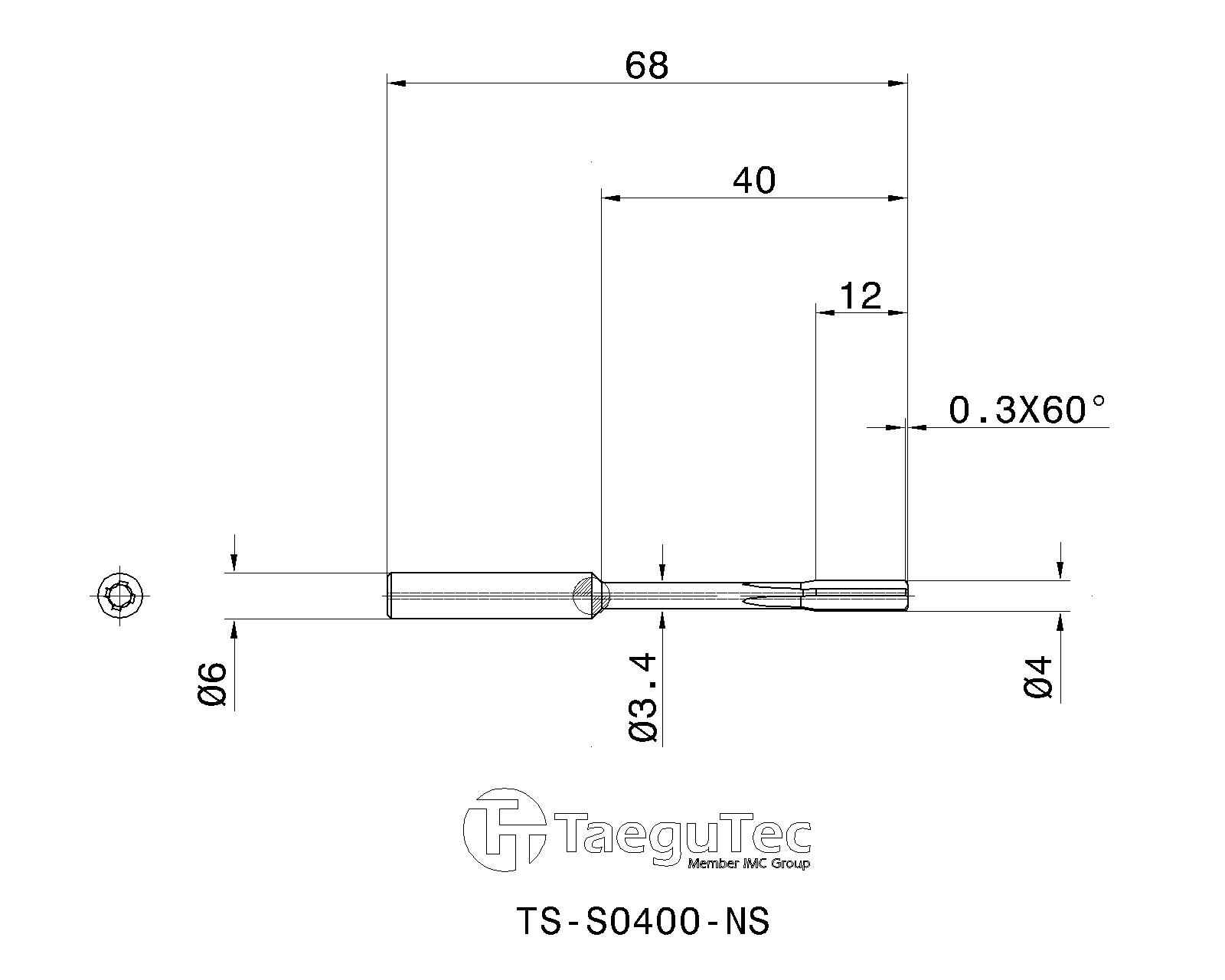

2D Representation
