Family Designation: HCEM 5 (5 flutes) 45° Chamfering solid carbide end mills with 5 flutes and 40° high helix angle for high productivity & low cutting force


 EM HELIX ANGLE_40  EM FLUTES_5
Item Designation: HCEM 5080
Tool sty DCX  DC OAL APMX DCONMS NOF  Type Machine H.A Shank Rd d ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~8.002.0063.003.008.005~ ~ ~40.0~C ~0.00~8.00~71E01A05D27A8 ~ ZYL ~01 ~27.00~6339232 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6339232 TT55251<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6339232&cat=6339232&itemDesc=HCEM 5080"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6339232', 'HCEM 5080' , 'DXF' , '6339232 - HCEM 5080');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6339232&itemDesc=HCEM 5080"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
For recommended cutting conditions click on More info.
3D Representation

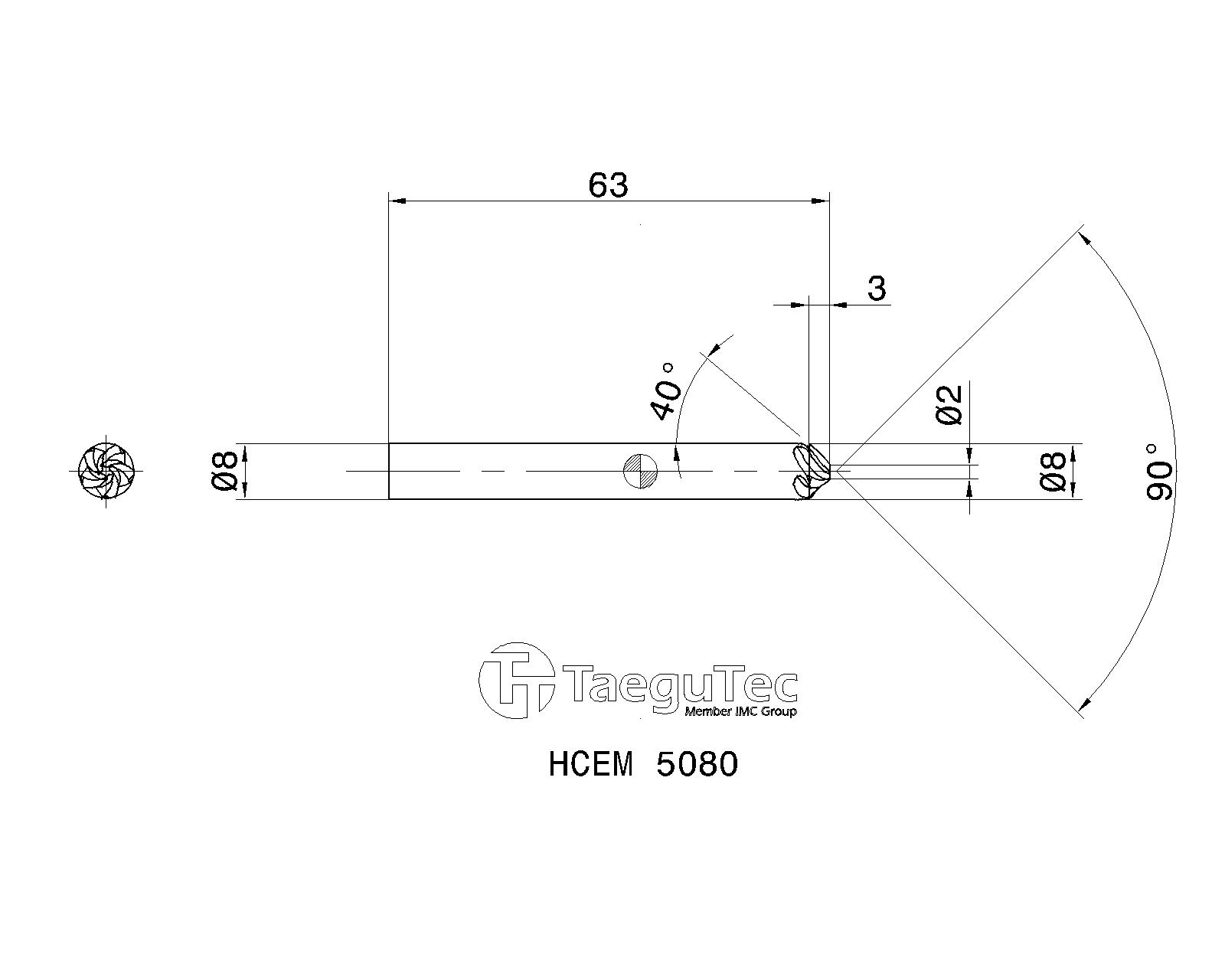

2D Representation
