Family Designation: MTECZ-W Solid carbide threading end mills with coolant holes located in the flutes for internal or external BSP/BSF threads


Item Designation: MTECZ 1616E26 14W
TPI TDZ DCONMS DC NOF  APMX OAL HAND ClssID CCMS  CZCMS FTDZ fz
(max) 		fz
(min) 		LTA Shank THFT TPIEN*** TP TTP TTP_DF2 ZAX LU GICATGIREMgiic
14.0G1/2-7/8 16.0016.00526.30101.00R ~71EF07E083383 ~ZYL01G1600h$06 ~Y ~1600 ~G1/2-7/8 ~0.210~0.040~53.00~C ~WH55 ~BSP(G) ~-~BOTH ~- ~0.06~11~1.0~6342584 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6342584 TT90303<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6342584&cat=6342584&itemDesc=MTECZ 1616E26 14W"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6342584', 'MTECZ 1616E26 14W' , 'DXF' , '6342584 - MTECZ 1616E26 14W');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6342584&itemDesc=MTECZ 1616E26 14W"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

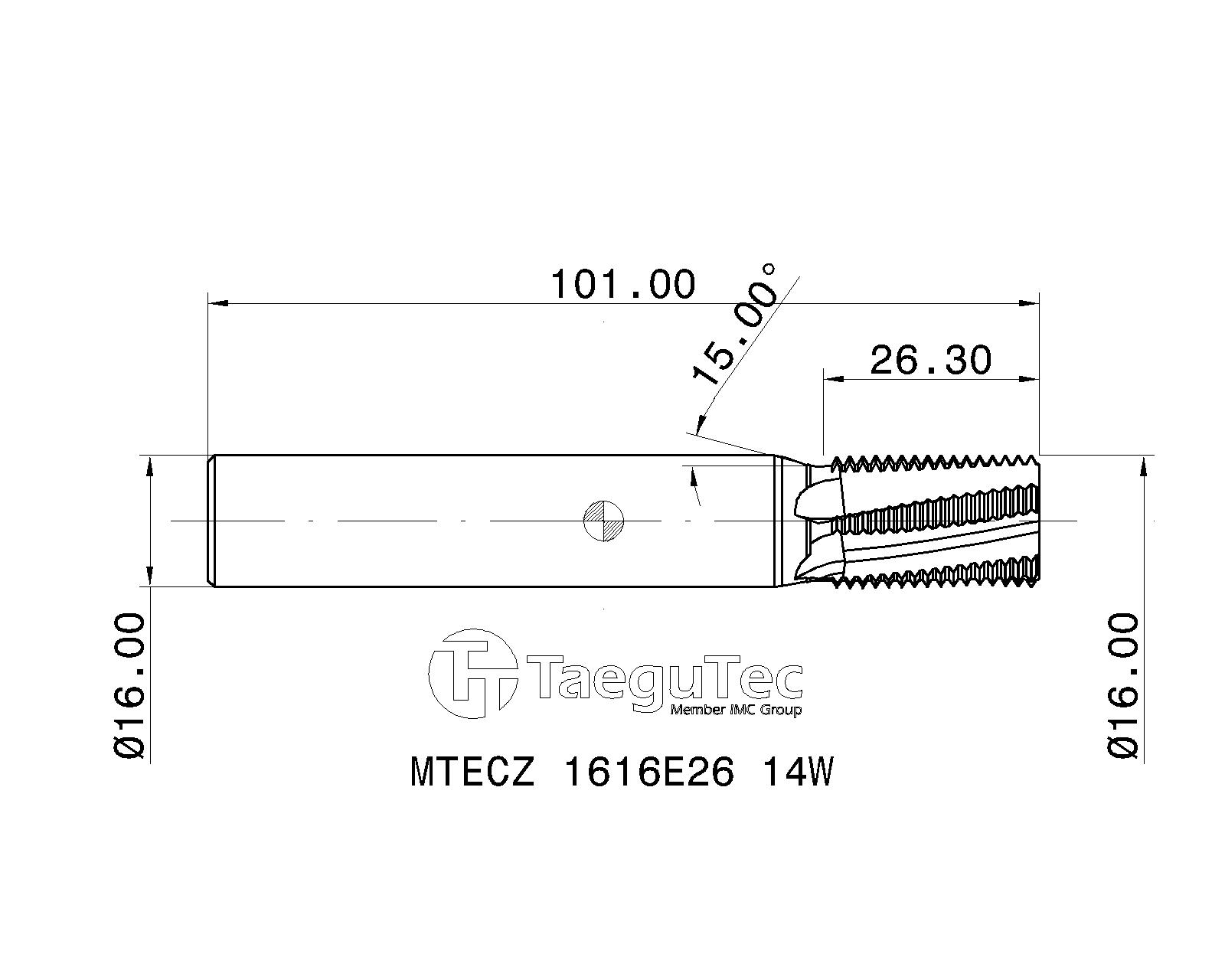

2D Representation
