Family Designation: MXSTD..-S (slotting) Straight steel shanks for MAXIRUSH TST & TTB slotting heads


Item Designation: MXSTD12L090S08-S
THSZWS DCONMS BD OAL Shank. M Shank ClssID CCTMS CCFMS CCTWS CCFWS GICATGIREMgiic
S08 12.0012.0090.00Steel C ~0.00~71EAD3871D313 ~ZYL ~01 ~SAI ~01 ~6859180 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6859180 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6859180&cat=6859180&itemDesc=MXSTD12L090S08-S"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6859180', 'MXSTD12L090S08-S' , 'DXF' , '6859180 - MXSTD12L090S08-S');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6859180&itemDesc=MXSTD12L090S08-S"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
For MXSTD type shank, it is recommended to use the TTB & TST slotting head.
If other heads are used on the MXSTD shank, the depth of cut must be smaller than the max. ap in each head.
The MXSTD type shank does not have external clearance,
so the shank may interfere with the work piece.
3D Representation

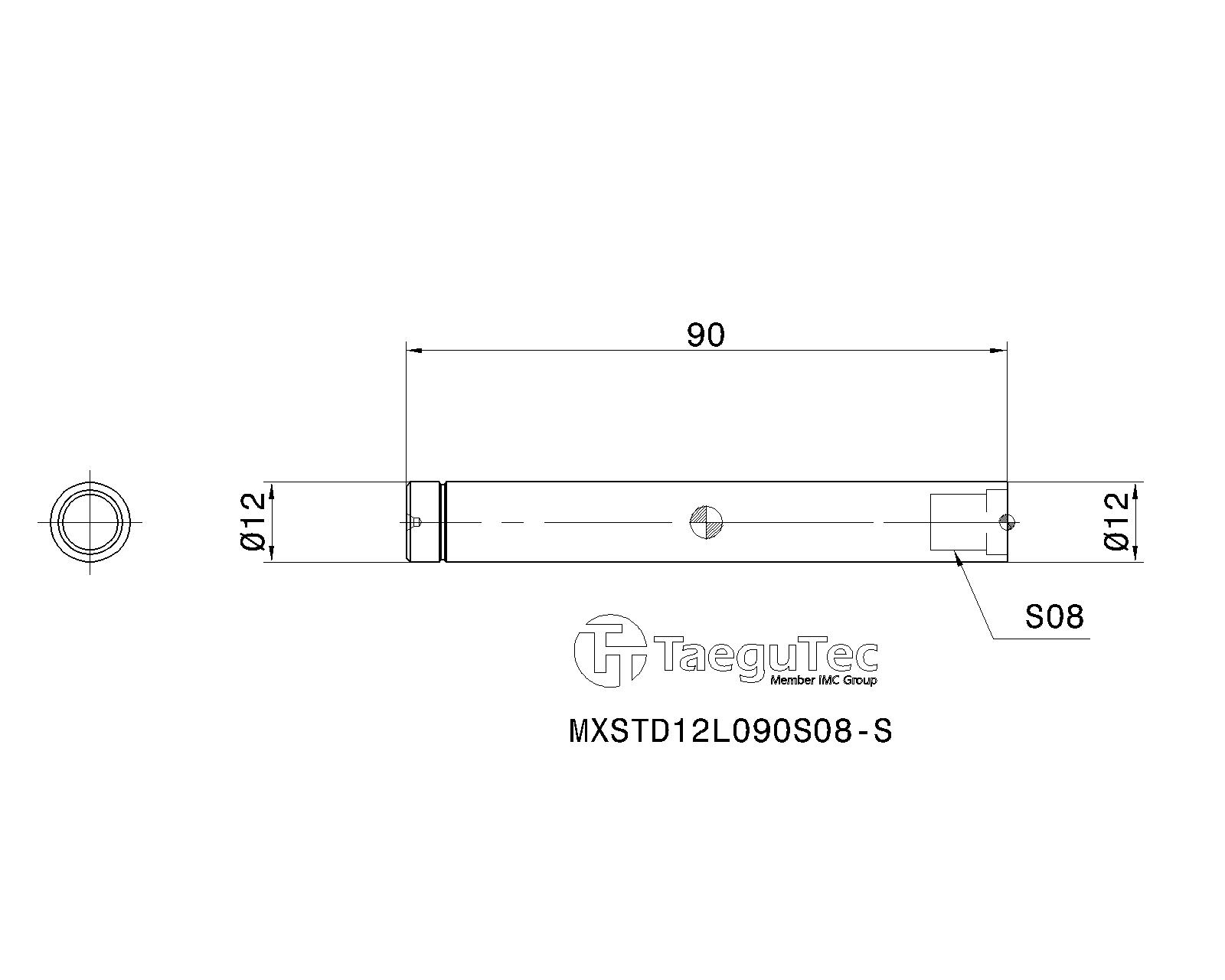

2D Representation
