TaeguTec Cutting Tools - Metal Working Tools - Turning -

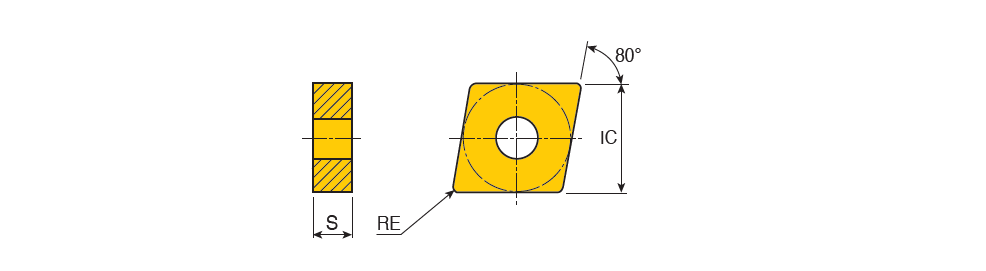

CNMG-WA (RHINO) : Negative 80° Rhombic RHINOTURN Wiper inserts for high feed rate and excellent surface finishing

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 090404 WA	0.00	0.00	0.00	~	0~	0.00~	0.00	0.00	0.00	0.00	0~	~	~	0.00~	~	~	~	~	8115B ~	0~	~	~	~	~	~	6277512	7	TT7105 TT5100 TT8115B TT7015 TT7005 CT3000 PV3010
CNMG 090408 WA	0.00	0.00	0.00	~	0~	0.00~	0.00	0.00	0.00	0.00	0~	~	~	0.00~	~	~	~	~	8105B ~	0~	~	~	~	~	~	6277577	8	TT7105 TT7115(TT7015B) TT5100 TT8125B TT8105B TT7015 TT7005 CT3000
CNMG 090412 WA	9.52	4.76	1.20	WA ~	0~	0.00~	0.40	3.00	0.20	0.50	4~	~	~	12.90~	C ~	71DD68D301C30 ~	RHINO-TURN ~	Cermet ~	8115B ~	2~	ISO$CN0904122NB$$12 ~	333 WA ~	CNMG ~	~	9 ~	6241945	6	TT8125B TT8115B TT7015 TT7005 CT3000 PV3010
