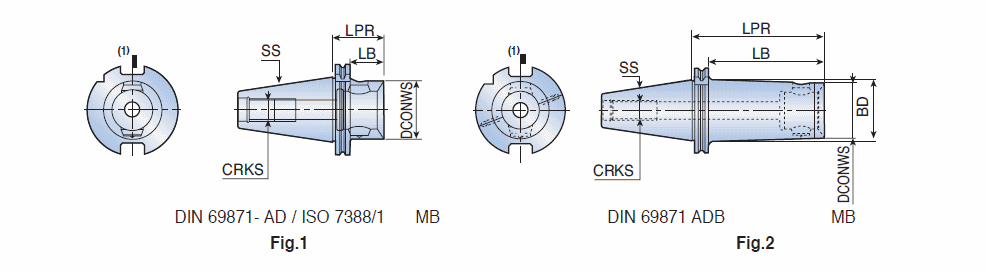

SKA-MB : MB modular connection system with DIN69871 form A/ISO 7388/1 taper shank.


  DesignationS1 SS DCONWS LPR LB BD CRKS Fig ClssID LTA GICATGIREMgiicGICODE
  SKA 30-MB50 30.00~30 50.0060.0041.0-M12 0.671~71EAD3871D313 ~0.00~4652338 0
  SKA 40-MB40 40.00~40 40.0045.0026.0-M16 0.941~71EAD3871D313 ~0.00~4655069 0
  SKA 40-MB50 40.00~40 50.0048.0029.0-M16 1.151~71EAD3871D313 ~0.00~4652343 0
  SKA 40-MB63 40.00~40 63.0080.0061.0-M16 1.521~71EAD3871D313 ~0.00~4652375 0
  SKA 50-MB50 50.00~50 50.0048.0029.0-M24 2.831~71EAD3871D313 ~0.00~4652357 0
  SKA 50-MB63 50.00~50 63.0056.0037.0-M24 2.971~71EAD3871D313 ~0.00~4652387 0
  SKA 50-MB80 50.00~50 80.0062.0043.0-M24 3.511~71EAD3871D313 ~0.00~4652408 0
  SKA 40-MB40X120 51.00~40 40.00120.00101.044.50M16 1.702~71EAD3871D313 ~0.00~4655070 0
  SKA 40-MB50X120 51.00~40 50.00120.00101.0-M16 2.812~71EAD3871D313 ~0.00~4652345 0
  SKA 50-MB50X120 51.00~50 50.00120.00101.060.00M24 4.032~71EAD3871D313 ~0.00~4652359 0
  SKA 50-MB63X150 51.00~50 63.00150.00131.070.00M24 2.812~71EAD3871D313 ~0.00~4652389 0
  SKA 50-MB80X180 A/B 51.00~50 80.00180.00161.0-M24 7.902~71EAD3871D313 ~0.00~4652410 0
(1)Cutting edge position.
Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
