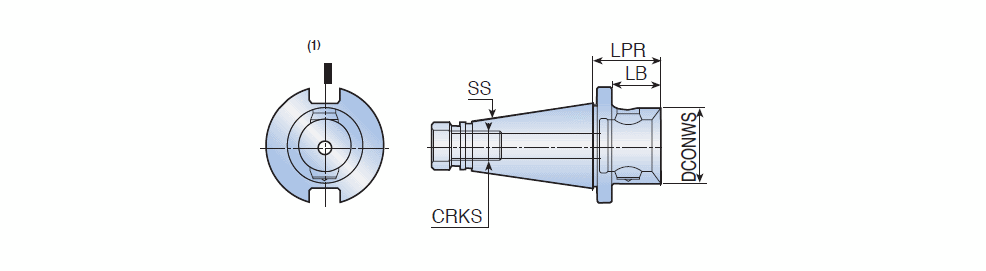

ISOM-MB : MB modular connection system with DIN 2080-A taper shanks.


  DesignationSS DCONWS LPR LB CRKS GICATGIREMgiicGICODE
  ISOM 30-MB50 30 50.0058.00-M12 0.784652337 0
  ISOM 40-MB50 40 50.0048.0036.0M16 1.044652341 0
  ISOM 40-MB63 40 63.0060.00-M16 1.284652373 0
  ISOM 50-MB50 50 50.0048.0033.0M24 2.804652355 0
  ISOM 50-MB63 50 63.0056.0041.0M24 2.984652385 0
  ISOM 50-MB80 50 80.0060.0045.0M24 3.524652406 0
(1)Cutting edge position.
Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
