TaeguTec Cutting Tools - Metal Working Tools - Boring System -

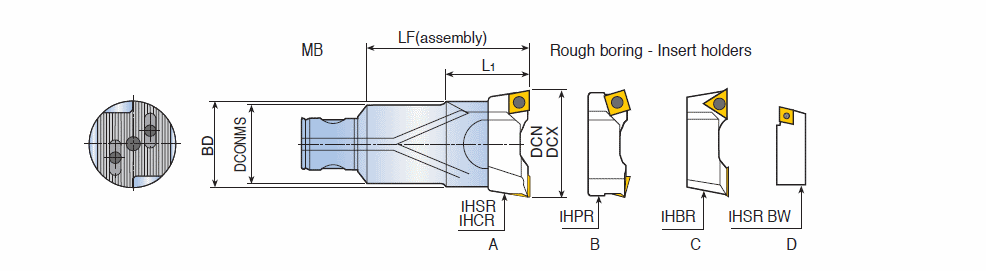

BHR MB : Rough boring heads for 18-200 mm diameter range used on the MB modular boring system.

Designation	S1	DCONMS	DCN	DCX	BD	LF	L1		GICAT
BHR MB16-16X34	16.00~	MB16	18.00	22.00	16.00	34.00	-	0.07	4652457
BHR MB20-20X40	20.00~	MB20	22.00	28.00	20.00	40.00	-	0.11	4652458
BHR MB25-25X50	25.00~	MB25	28.00	38.00	26.00	50.00	-	0.18	4652459
BHR MB 32-32X63	32.00~	MB32	36.00	50.00	34.00	63.00	-	0.35	4652460
BHR MB40-40X75	40.00~	MB40	50.00	68.00	45.00	75.00	-	0.72	4652461
BHR MB 50-63X105	50.00~	MB50	90.00	120.00	85.00	105.00	60.0	0.20	4653680
BHR MB50-50X90	50.00~	MB50	68.00	90.00	65.00	90.00	50.0	1.50	4652454
BHR MB63-63X105	63.00~	MB63	90.00	120.00	85.00	105.00	63.0	3.06	4652455
BHR MB80-80X115	80.00~	MB80	120.00	200.00	110.00	115.00	75.0	5.39	4652456

Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
