TaeguTec Cutting Tools - Metal Working Tools - Boring System -

BHF MB16-MB50 Dia 2.5-108 : Fine Boring Heads with MB Modular System Connection for 6 to 108 mm Diameters

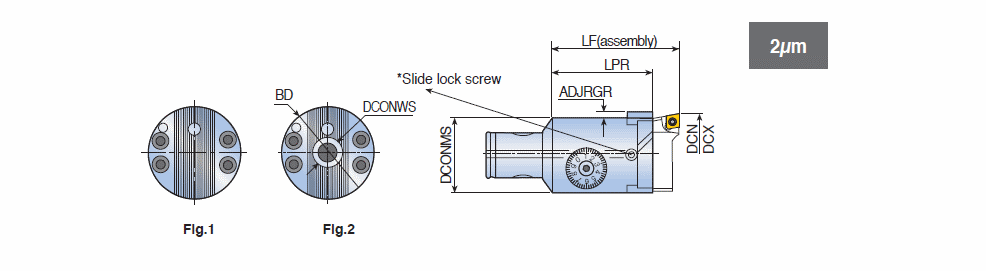

Designation	DCONMS	DCN	DCX	BD	LPR	LF	ADJRGA	DCONWS	Fig		GICAT
BHF MB16-16X34 RV	MB16	18.00	23.00	16.00	26.00	34.0	1.00	-	1	0.11	4654652
BHF MB20-20X40 RV	MB20	22.00	29.00	20.00	32.60	40.0	2.00	-	1	0.16	4654653
BHF MB25-25X50	MB25	28.00	38.00	25.00	40.00	50.0	2.00	-	1	0.23	4652442
BHF MB32-32X63	MB32	35.50	50.00	32.00	51.50	63.0	3.00	-	1	0.43	4652443
BHF MB40-40X80	MB40	48.00	63.00	40.00	66.00	80.0	4.00	-	1	0.83	4652444
BHF MB50-50X60	MB50	2.50	108.00	50.00	60.00	79.0	4.00	16.00	2	1.15	4652445
