TaeguTec Cutting Tools - Metal Working Tools - Boring System -

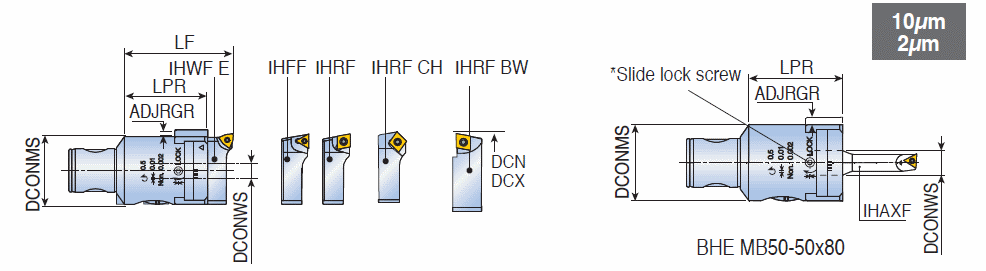

BHE MB : Fine boring head used on the MB modular boring system.

Designation	S1	DCONMS	DCN	DCX	LF	LPR	ADJRGA	DCONWS	IH		GICAT
BHE MB16-16-34	16.00~	MB16	18.00	24.00	34.00	26.0	2.00	-	16 ~	0.10	6131858
BHE MB20-20-40	20.00~	MB20	22.00	30.00	40.00	31.5	3.00	-	20 ~	0.15	6131860
BHE MB25-25-50	25.00~	MB25	28.00	40.00	50.00	40.0	3.00	-	25 ~	0.23	6131862
BHE MB32-32-63	32.00~	MB32	35.00	53.00	63.00	51.5	4.00	-	32 ~	0.42	6131864
BHE MB40-40-80	40.00~	MB40	48.00	66.00	80.00	66.0	5.00	-	40 ~	0.83	6131866
BHE MB50-50-80	50.00~	MB50	2.50	110.00	80.00	61.0	5.00	16.00	50 ~	1.15	6128400
BHE MB63-63-89	63.00~	MB63	6.00	125.00	89.00	69.5	10.00	-	63 ~	2.13	6131867
BHE MB80-80-104	80.00~	MB80	6.00	200.00	104.00	85.0	12.00	-	80 ~	3.83	6133445

See optional configurations on specified pages.
