TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

4N TE90-S-04 : 90° Modular end mills with MAXIRUSH adaptation & unique four high positive helical cutting edges of double-sided 4NKT 04 inserts and high ramping capability

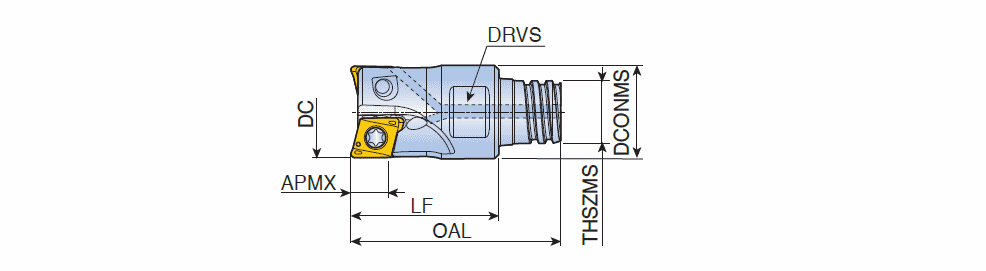

Designation	Tool sty	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX	DRVS		PD		S1	Rd	Insert	Pocket	ClssID	MIID	KAPR	CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	GICAT
4N TE90-210-S06-04	MODULAR ~	10.00	2	9.60	15.00	21.30	S06	3.50	8.0	O ~	F ~	0.01	4.00~	4.20~	C4M-4N04 ~	4N04-HF ~	71E01A05D27A8 ~	4NKT 040204R-M	90.0~	SAI ~	01 ~	FF ~	IS$$1188856158617950 ~	15.00~	2~	2~	6320571
4N TE90-312-S08-04	MODULAR ~	12.00	3	11.50	16.00	23.50	S08	3.50	10.0	O ~	F ~	0.01	4.00~	4.80~	C4M-4N04 ~	4N04-HF ~	71E01A05D27A8 ~	4NKT 040204R-M	90.0~	SAI ~	01 ~	FF ~	IS$$1188856158617950 ~	16.00~	3~	3~	6320572
4N TE90-416-S10-04	MODULAR ~	16.00	4	15.20	20.00	31.30	S10	3.50	13.0	O ~	F ~	0.03	4.00~	4.50~	C4M-4N04 ~	4N04-HF ~	71E01A05D27A8 ~	4NKT 040204R-M	90.0~	SAI ~	01 ~	FF ~	IS$$1188856158617950 ~	20.00~	4~	4~	6320573

Cutter body for '4NKT 040212R-HF' insert should be modified with body corner radius 1.2 mm
Matched with MAXIRUSH holder
