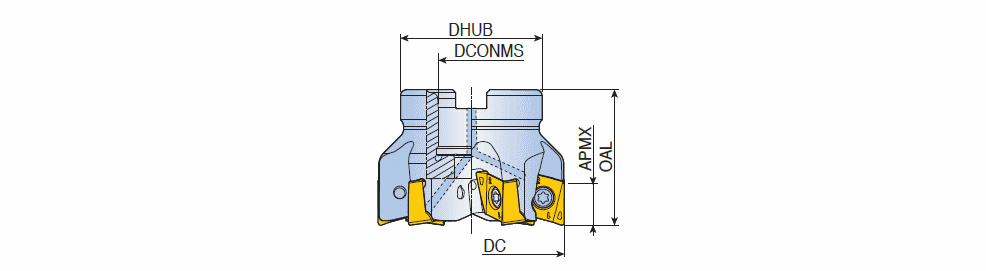

4N TF90-R-14 : 90° Face mills with unique four high positive helical cutting edges of double-sided 4NKT 14 inserts and high ramping capability

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	APMX		Arbor		Mtg. Ref	S1	D3	Rd	KAPR	R/L	PD	Insert	Pocket	ClssID	MIID	CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	GICAT
4N TF90-450-22R-14	FACE MILL ~	50.00	4	22.00	45.00	45.00	13.80	O	A	0.40	SH M10x25	14.00~	0.00~	4.70~	90.0~	~	RC ~	C4M-4N14 ~	4N14-HF ~	71E01A05B627B ~	4NKT 140708R-M	FDA ~	02 ~	FF ~	IS$$573517796803679 ~	45.00~	4~	4~	6179470
4N TF90-463-22R-14	FACE MILL ~	63.00	4	22.00	47.00	45.00	13.80	O	A	0.60	SH M10x25	14.00~	0.00~	3.50~	90.0~	~	RC ~	C4M-4N14 ~	4N14-HF ~	71E01A05B627B ~	4NKT 140708R-M	FDA ~	02 ~	FF ~	IS$$573517796803679 ~	45.00~	4~	4~	6187351
4N TF90-663-22R-14	FACE MILL ~	63.00	6	22.00	47.00	45.00	13.80	O	A	0.60	SH M10x25	14.00~	0.00~	3.50~	90.0~	~	RF ~	C4M-4N14 ~	4N14-HF ~	71E01A05B627B ~	4NKT 140708R-M	FDA ~	02 ~	FF ~	IS$$573517796803679 ~	45.00~	6~	6~	6187352
4N TF90-580-25.4R-14	FACE MILL ~	80.00	5	25.40	70.00	50.00	13.80	O	A	1.20	SH M10x25	14.00~	0.00~	0.00~	90.0~	~	RC ~	C4M-4N14 ~	4N14-HF ~	71E01A05B627B ~	4NKT 140708R-M	FDA ~	02 ~	FF ~	IS$$573517796803679 ~	50.00~	5~	5~	6210969
4N TF90-580-27R-14	FACE MILL ~	80.00	5	27.00	58.00	50.00	13.80	O	A	1.00	SH M12x35	14.00~	0.00~	2.60~	90.0~	~	RC ~	C4M-4N14 ~	4N14-HF ~	71E01A05B627B ~	4NKT 140708R-M	FDA ~	02 ~	FF ~	IS$$573517796803679 ~	50.00~	5~	5~	6187353
4N TF90-780-27R-14	FACE MILL ~	80.00	7	27.00	58.00	50.00	13.80	O	A	1.00	SH M12x35	14.00~	0.00~	2.60~	90.0~	~	RF ~	C4M-4N14 ~	4N14-HF ~	71E01A05B627B ~	4NKT 140708R-M	FDA ~	02 ~	FF ~	IS$$573517796803679 ~	50.00~	7~	7~	6187354
4N TF90-8100-31.75R-14	FACE MILL ~	100.00	8	31.75	80.00	50.00	13.80	X	B	1.70	SH M10x25	14.00~	0.00~	0.00~	90.0~	~	RF ~	C4M-4N14 ~	4N14-HF ~	71E01A05B627B ~	4NKT 140708R-M	FDA ~	02 ~	FF ~	IS$$573517796803679 ~	50.00~	8~	8~	6187358
4N TF90-8100-32R-14	FACE MILL ~	100.00	8	32.00	85.00	50.00	13.80	O	A	1.90	SH M16X35	14.00~	0.00~	2.20~	90.0~	~	RF ~	C4M-4N14 ~	4N14-HF ~	71E01A05B627B ~	4NKT 140708R-M	FDA ~	02 ~	FF ~	IS$$573517796803679 ~	49.90~	8~	8~	6187357

Cutter body for 4NKT 140750R-HF insert should be modified with body corner radius 5.0 mm
Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
