TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

2S-TFM90AP-R-19 : 90° Face mills with strong APKT 19 inserts for roughing of heavy industry parts of wind mills and power generations

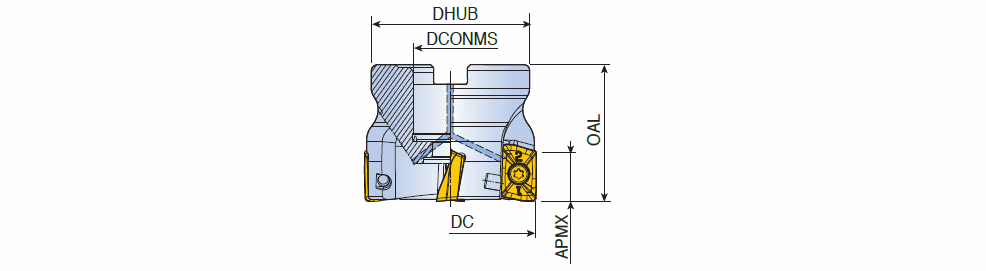

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	APMX		Arbor		S1	RMPX	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
2S-TFM90AP 350-22R-19	FACE MILL ~	50.00	3	22.00	45.00	45.00	17.90	O	A	0.30	19.00~	4.00~	90.0~	~	C ~	CM-AP19 ~	LH M10X1.5X35 ~	71E01A05B627B ~	APKT 190712R-MR	FDA ~	02 ~	IS$$162382343655096 ~	45.00~	3~	3~	6154075
2S-TFM90AP 463-22R-19	FACE MILL ~	63.00	4	22.00	47.00	40.00	17.90	O	A	0.70	19.00~	2.90~	90.0~	~	RC ~	CM-AP19 ~	SH M10X1.5X35 ~	71E01A05B627B ~	APKT 190712R-MR	FDA ~	02 ~	IS$$162382343655096 ~	40.00~	4~	4~	6161714
2S-TFM90AP 463-27R-19	FACE MILL ~	63.00	4	27.00	58.00	50.00	17.90	O	A	0.70	19.00~	2.90~	90.0~	~	RC ~	CM-AP19 ~	SH M12X1.75X35 ~	71E01A05B627B ~	APKT 190712R-MR	FDA ~	02 ~	IS$$162382343655096 ~	50.00~	4~	4~	3112031
2S-TFM90AP 680-27R-19	FACE MILL ~	80.00	6	27.00	58.00	50.00	17.90	O	A	1.10	19.00~	2.10~	90.0~	~	RC ~	CM-AP19 ~	SH M12X1.75X35 ~	71E01A05B627B ~	APKT 190712R-MR	FDA ~	02 ~	IS$$162382343655096 ~	50.00~	6~	6~	6107017
2S-TFM90AP 7100-32R-19	FACE MILL ~	100.00	7	32.00	85.00	50.00	17.90	O	A	1.90	19.00~	1.60~	90.0~	~	RC ~	CM-AP19 ~	SH M16X2.0X35 ~	71E01A05B627B ~	APKT 190712R-MR	FDA ~	02 ~	IS$$162382343655096 ~	50.00~	7~	7~	6107019
2S-TFM90AP 6125-40R-19	FACE MILL ~	125.00	6	40.00	85.00	63.00	17.90	O	A	3.00	19.00~	1.20~	90.0~	~	C ~	CM-AP19 ~	SH M20X2.5X40 ~	71E01A05B627B ~	APKT 190712R-MR	FDA ~	02 ~	IS$$162382343655096 ~	63.00~	6~	6~	3111852
2S-TFM90AP 8125-40R-19	FACE MILL ~	125.00	8	40.00	85.00	63.00	17.90	O	A	3.00	19.00~	1.20~	90.0~	~	RC ~	CM-AP19 ~	SH M20X2.5X40 ~	71E01A05B627B ~	APKT 190712R-MR	FDA ~	02 ~	IS$$162382343655096 ~	63.00~	8~	8~	6102296
2S-TFM90AP 10160-40R-19	FACE MILL ~	160.00	10	40.00	110.00	63.00	17.90	X	C	4.20	19.00~	0.90~	90.0~	~	RC ~	CM-AP19 ~	- ~	71E01A05B627B ~	APKT 190712R-MR	SPK ~	02 ~	IS$$162382343655096 ~	63.00~	10~	10~	6107020
2S-TFM90AP 12200-60R-19	FACE MILL ~	200.00	12	60.00	130.00	63.00	17.90	X	C	6.00	19.00~	0.70~	90.0~	~	RC ~	CM-AP19 ~	- ~	71E01A05B627B ~	APKT 190712R-MR	SPK ~	02 ~	IS$$162382343655096 ~	63.00~	12~	12~	6107021

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
